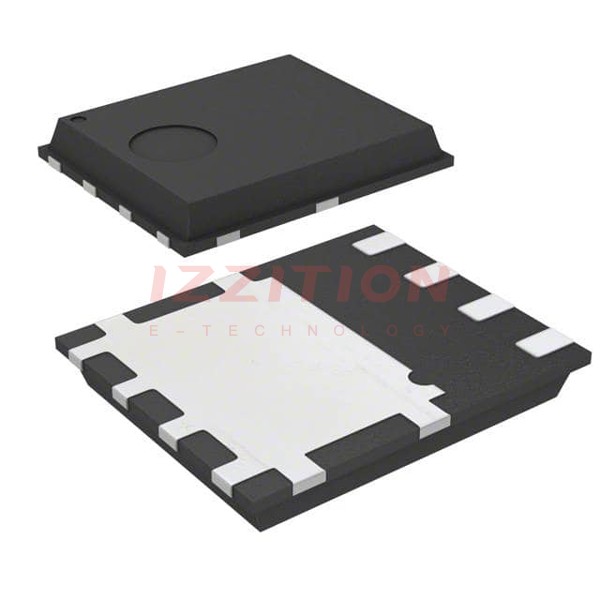

STMicroelectronics STL35N6F3

Manufacturer No:
STL35N6F3
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 35A POWERFLAT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STL35N6F3 is an N-channel enhancement mode Power MOSFET produced by STMicroelectronics. It is designed using STMicroelectronics' advanced STripFET™ III technology, which enhances performance and efficiency. This MOSFET is particularly suited for high-power applications due to its robust specifications and reliable operation.

Key Specifications

ParameterValue
FET TypeN-Channel
Drain-Source Voltage (Vds)60V
Continuous Drain Current (Id)35A
On-Resistance (Rds(on))0.018 Ohm
Operating Temperature (TJ)-55°C ~ 175°C
PackageTape & Reel (TR), POWERFLAT

Key Features

  • Advanced STripFET™ III technology for improved performance and efficiency.
  • Low on-resistance (Rds(on)) of 0.018 Ohm, reducing power losses.
  • High continuous drain current of 35A, suitable for high-power applications.
  • Wide operating temperature range from -55°C to 175°C.
  • POWERFLAT package for enhanced thermal performance and space efficiency.

Applications

The STL35N6F3 MOSFET is ideal for various high-power applications, including but not limited to:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Automotive systems requiring high reliability and performance.
  • Industrial power management and control systems.

Q & A

  1. What is the FET type of the STL35N6F3? The STL35N6F3 is an N-channel enhancement mode Power MOSFET.
  2. What is the maximum drain-source voltage (Vds) of the STL35N6F3? The maximum drain-source voltage is 60V.
  3. What is the continuous drain current (Id) of the STL35N6F3? The continuous drain current is 35A.
  4. What is the on-resistance (Rds(on)) of the STL35N6F3? The on-resistance is 0.018 Ohm.
  5. What is the operating temperature range of the STL35N6F3? The operating temperature range is from -55°C to 175°C.
  6. What package types are available for the STL35N6F3? The STL35N6F3 is available in Tape & Reel (TR) and POWERFLAT packages.
  7. What technology is used in the STL35N6F3? The STL35N6F3 is produced using STMicroelectronics' STripFET™ III technology.
  8. What are some typical applications of the STL35N6F3? Typical applications include power supplies, motor control systems, automotive systems, and industrial power management.
  9. Why is the STL35N6F3 suitable for high-power applications? The STL35N6F3 is suitable due to its high continuous drain current, low on-resistance, and wide operating temperature range.
  10. Where can I find detailed specifications for the STL35N6F3? Detailed specifications can be found on the official STMicroelectronics website, as well as on distributor websites like Digi-Key and Mouser.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:35A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:22mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):5W (Ta), 80W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerFlat™ (5x6)
Package / Case:8-PowerVDFN
