Overview

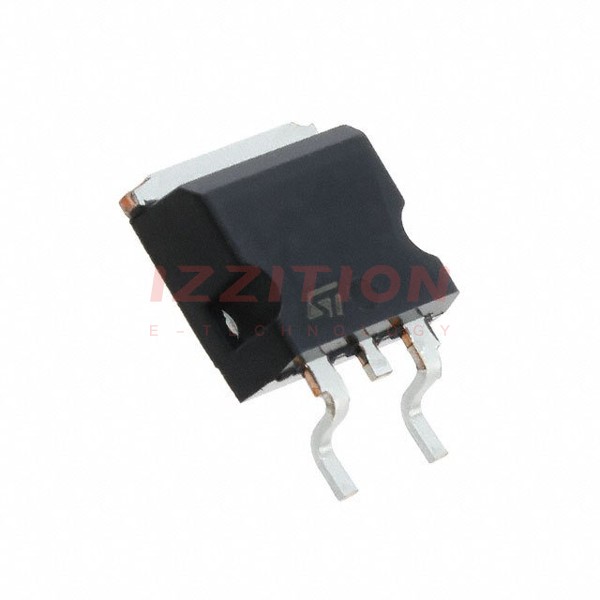

The STB35N60DM2 is a high-voltage N-channel Power MOSFET from STMicroelectronics, part of the MDmesh™ DM2 fast recovery diode series. This device is designed for high-efficiency converters and is particularly suited for bridge topologies and ZVS phase-shift converters. It features very low recovery charge (Qrr) and time (trr), combined with low RDS(on), making it ideal for demanding applications.
Key Specifications
Parameter | Value | Unit |
---|---|---|
VDS (Drain-Source Voltage) | 600 | V |
RDS(on) (Static Drain-Source On-Resistance) | 0.094 (typ.), 0.110 (max.) | Ω |
ID (Drain Current, continuous at Tcase = 25 °C) | 28 | A |
ID (Drain Current, continuous at Tcase = 100 °C) | 17 | A |
IDM (Drain Current, pulsed) | 112 | A |
PTOT (Total Dissipation at Tcase = 25 °C) | 210 | W |
VGS (Gate-Source Voltage) | ±25 | V |
Tstg (Storage Temperature) | -55 to 150 | °C |
Tj (Operating Junction Temperature) | - | °C |
Rthj-case (Thermal Resistance Junction-Case) | 0.6 | °C/W |
Rthj-pcb (Thermal Resistance Junction-Pcb) | 30 | °C/W |
Key Features
- Fast-recovery body diode
- Extremely low gate charge and input capacitance
- Low on-resistance (RDS(on))
- 100% avalanche tested
- Extremely high dv/dt ruggedness
- Zener-protected gate-source
Applications
The STB35N60DM2 is suitable for various high-efficiency switching applications, including:
- Bridge topologies
- ZVS phase-shift converters
- Other demanding high-efficiency converters
Q & A
- What is the maximum drain-source voltage (VDS) of the STB35N60DM2?
The maximum drain-source voltage (VDS) is 600 V.
- What is the typical static drain-source on-resistance (RDS(on)) of the STB35N60DM2?
The typical static drain-source on-resistance (RDS(on)) is 0.094 Ω.
- What is the maximum continuous drain current (ID) at Tcase = 25 °C?
The maximum continuous drain current (ID) at Tcase = 25 °C is 28 A.
- What is the total dissipation (PTOT) at Tcase = 25 °C?
The total dissipation (PTOT) at Tcase = 25 °C is 210 W.
- What are the storage and operating temperature ranges for the STB35N60DM2?
The storage temperature range is -55 to 150 °C, and the operating junction temperature is not specified but must be within safe operating limits.
- What is the thermal resistance junction-case (Rthj-case) for the STB35N60DM2?
The thermal resistance junction-case (Rthj-case) is 0.6 °C/W.
- What are the key features of the STB35N60DM2?
The key features include a fast-recovery body diode, extremely low gate charge and input capacitance, low on-resistance, 100% avalanche tested, high dv/dt ruggedness, and Zener-protected gate-source.
- In what types of applications is the STB35N60DM2 commonly used?
The STB35N60DM2 is commonly used in bridge topologies, ZVS phase-shift converters, and other high-efficiency switching applications.
- What package type is the STB35N60DM2 available in?
The STB35N60DM2 is available in a D²PAK (TO-263) package.
- What is the significance of the MDmesh™ DM2 series?
The MDmesh™ DM2 series is known for its fast recovery diodes and low recovery charge and time, making it suitable for high-efficiency converters.
