NVR4003NT3G
  • Share:

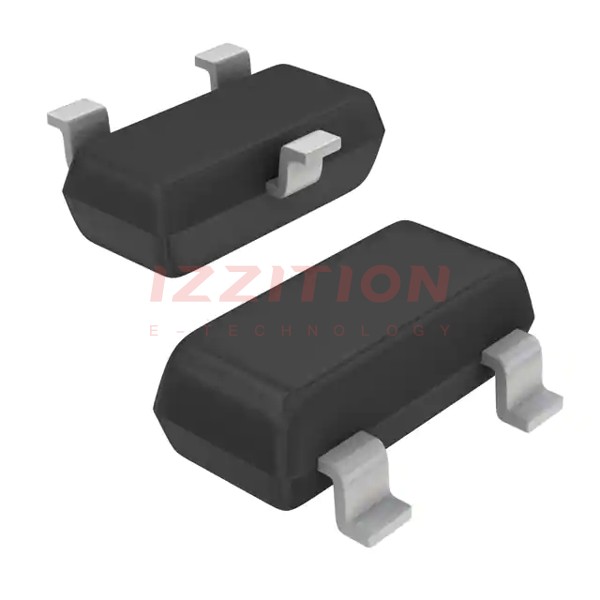

onsemi NVR4003NT3G

Manufacturer No:
NVR4003NT3G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 30V 500MA SOT23
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVR4003NT3G is a small signal N-Channel MOSFET produced by onsemi. This device is designed for low power applications and is particularly suited for automotive and general-purpose use. It is AEC-Q101 qualified and PPAP capable, ensuring reliability and compliance with automotive standards. The MOSFET is packaged in a SOT-23 form factor, making it compact and suitable for a variety of applications where space is limited.

Key Specifications

ParameterValue
Voltage Rating (Vds)30 V
Continuous Drain Current (Id)0.56 A
On-Resistance (Rds(on))1.5 Ohm
Package TypeSOT-23
QualificationAEC-Q101 Qualified, PPAP Capable

Key Features

  • Single N-Channel MOSFET
  • Low on-resistance of 1.5 Ohm
  • Compact SOT-23 package
  • AEC-Q101 qualified and PPAP capable for automotive reliability
  • Suitable for low power applications

Applications

The NVR4003NT3G is ideal for various low power applications, including automotive systems, general-purpose switching, and small signal amplification. Its compact size and robust specifications make it a versatile component for use in a wide range of electronic devices.

Q & A

  1. What is the voltage rating of the NVR4003NT3G MOSFET?
    The voltage rating of the NVR4003NT3G MOSFET is 30 V.
  2. What is the continuous drain current of the NVR4003NT3G?
    The continuous drain current of the NVR4003NT3G is 0.56 A.
  3. What is the on-resistance of the NVR4003NT3G?
    The on-resistance of the NVR4003NT3G is 1.5 Ohm.
  4. What package type is the NVR4003NT3G available in?
    The NVR4003NT3G is available in a SOT-23 package.
  5. Is the NVR4003NT3G qualified for automotive use?
    Yes, the NVR4003NT3G is AEC-Q101 qualified and PPAP capable.
  6. What are some typical applications for the NVR4003NT3G?
    The NVR4003NT3G is suitable for low power applications, including automotive systems and general-purpose switching.
  7. Why is the SOT-23 package beneficial?
    The SOT-23 package is beneficial due to its compact size, making it ideal for applications where space is limited.
  8. What does AEC-Q101 qualification mean?
    AEC-Q101 qualification indicates that the component meets the stringent reliability standards for automotive applications.
  9. Is the NVR4003NT3G suitable for high power applications?
    No, the NVR4003NT3G is designed for low power applications.
  10. Where can I find detailed specifications for the NVR4003NT3G?
    Detailed specifications for the NVR4003NT3G can be found in the datasheet available on the onsemi website or through distributors like Mouser and TME.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4V
Rds On (Max) @ Id, Vgs:1.5Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id:1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:1.15 nC @ 5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:21 pF @ 5 V
FET Feature:-
Power Dissipation (Max):690mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3 (TO-236)
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

$0.46
1,621

Please send RFQ , we will respond immediately.
