NVMTS1D2N08H
  • Share:

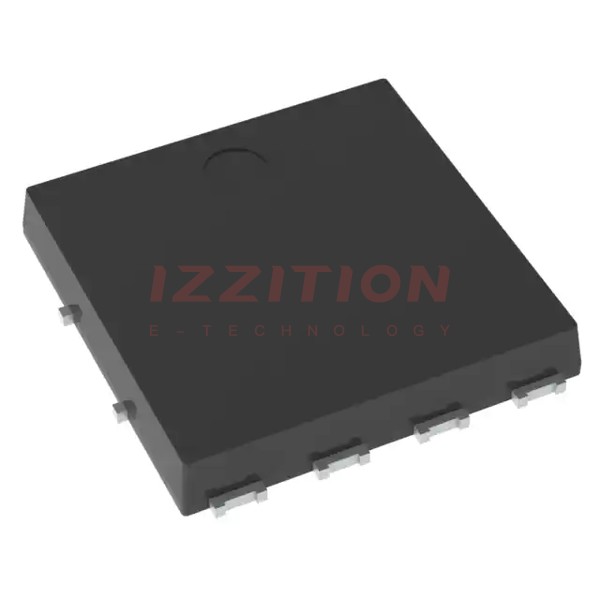

onsemi NVMTS1D2N08H

Manufacturer No:
NVMTS1D2N08H
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 80V 43.5A/337A 8DFNW
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVMTS1D2N08H is an automotive Power MOSFET produced by onsemi, designed for compact and efficient designs with high thermal performance. This N-Channel MOSFET is housed in an 8x8mm flat lead package, making it ideal for applications requiring a small footprint. It is AEC-Q101 Qualified and PPAP capable, ensuring its suitability for automotive applications. The device also features wettable flanks for enhanced optical inspection and is RoHS compliant.

Key Specifications

ParameterValue
Channel PolarityN-Channel
VDS (Max)80 V
RDS(on) Max @ VGS = 10 V1.1 mΩ
ID Max337 A
VGS±20 V
VGS(th) Max4 V
PD Max295 W
Package Type8-Pin DFN (DFNW-8)
Case OutlinePower 88
MSL TypeA
MSL Temp (°C)260

Key Features

  • Small Footprint (8x8 mm)
  • Low RDS(on)
  • Low QG and Ciss Capacitance
  • Wettable Flank Option for Enhanced Optical Inspection
  • AEC-Q101 Qualified and PPAP Capable
  • RoHS Compliant

Applications

  • Switching Power Supply
  • Power switches (High Side Driver, Low Side Driver, H-Bridges etc.)
  • 48 V Systems
  • Load Switch
  • DC/DC Converter
  • Motor Control

Q & A

  1. What is the maximum drain-source voltage (VDS) of the NVMTS1D2N08H MOSFET?
    The maximum drain-source voltage (VDS) is 80 V.
  2. What is the maximum drain current (ID) of the NVMTS1D2N08H MOSFET?
    The maximum drain current (ID) is 337 A.
  3. What is the typical on-resistance (RDS(on)) of the NVMTS1D2N08H MOSFET?
    The typical on-resistance (RDS(on)) is 1.1 mΩ at VGS = 10 V.
  4. What package type is the NVMTS1D2N08H MOSFET available in?
    The NVMTS1D2N08H MOSFET is available in an 8-Pin DFN (DFNW-8) package.
  5. Is the NVMTS1D2N08H MOSFET AEC-Q101 Qualified?
    Yes, the NVMTS1D2N08H MOSFET is AEC-Q101 Qualified and PPAP capable.
  6. What are some common applications of the NVMTS1D2N08H MOSFET?
    Common applications include switching power supplies, power switches, 48 V systems, load switches, DC/DC converters, and motor control.
  7. Does the NVMTS1D2N08H MOSFET have wettable flanks for optical inspection?
    Yes, the NVMTS1D2N08H MOSFET features wettable flanks for enhanced optical inspection.
  8. Is the NVMTS1D2N08H MOSFET RoHS compliant?
    Yes, the NVMTS1D2N08H MOSFET is RoHS compliant.
  9. What is the maximum power dissipation (PD) of the NVMTS1D2N08H MOSFET?
    The maximum power dissipation (PD) is 295 W.
  10. What is the gate-source threshold voltage (VGS(th)) of the NVMTS1D2N08H MOSFET?
    The gate-source threshold voltage (VGS(th)) is 4 V.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):80 V
Current - Continuous Drain (Id) @ 25°C:43.5A (Ta), 337A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:1.1mOhm @ 90A, 10V
Vgs(th) (Max) @ Id:4V @ 590µA
Gate Charge (Qg) (Max) @ Vgs:147 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:10100 pF @ 40 V
FET Feature:-
Power Dissipation (Max):5W (Ta), 300W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-DFNW (8.3x8.4)
Package / Case:8-PowerTDFN
0 Remaining View Similar

In Stock

$6.39
15

Please send RFQ , we will respond immediately.

Same Series
DD26M2S5WT2Z
DD26M2S5WT2Z
CONN D-SUB HD PLUG 26P SLDR CUP
DD15S20L0S
DD15S20L0S
CONN D-SUB HD RCPT 15P SLDR CUP
CBC13W3S10HE2X/AA
CBC13W3S10HE2X/AA
CONN D-SUB RCPT 13POS CRIMP
CBC9W4S10H0S/AA
CBC9W4S10H0S/AA
CONN D-SUB RCPT 9POS CRIMP
DD44M32S50V50
DD44M32S50V50
CONN D-SUB HD PLUG 44P VERT SLDR
DD15S20JT2S/AA
DD15S20JT2S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20WV5S
DD15S20WV5S
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S10H00/AA
DD26S10H00/AA
CONN D-SUB HD RCPT 26POS CRIMP
CBC9W4S10HV5S/AA
CBC9W4S10HV5S/AA
CONN D-SUB RCPT 9POS CRIMP
CBC13W3S10HV3S/AA
CBC13W3S10HV3S/AA
CONN D-SUB RCPT 13POS CRIMP
CBC21W1S10HE2X/AA
CBC21W1S10HE2X/AA
CONN D-SUB RCPT 21POS CRIMP
DD26S20WE30
DD26S20WE30
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number NVMTS1D2N08H NVMTS1D5N08H
Manufacturer onsemi onsemi
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 80 V 80 V
Current - Continuous Drain (Id) @ 25°C 43.5A (Ta), 337A (Tc) 38A (Ta), 273A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V
Rds On (Max) @ Id, Vgs 1.1mOhm @ 90A, 10V 1.4mOhm @ 90A, 10V
Vgs(th) (Max) @ Id 4V @ 590µA 4V @ 490µA
Gate Charge (Qg) (Max) @ Vgs 147 nC @ 10 V 125 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 10100 pF @ 40 V 8220 pF @ 40 V
FET Feature - -
Power Dissipation (Max) 5W (Ta), 300W (Tc) 5W (Ta), 258W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package 8-DFNW (8.3x8.4) 8-DFNW (8.3x8.4)
Package / Case 8-PowerTDFN 8-PowerTDFN
