NVD6416ANLT4G-VF01
  • Share:

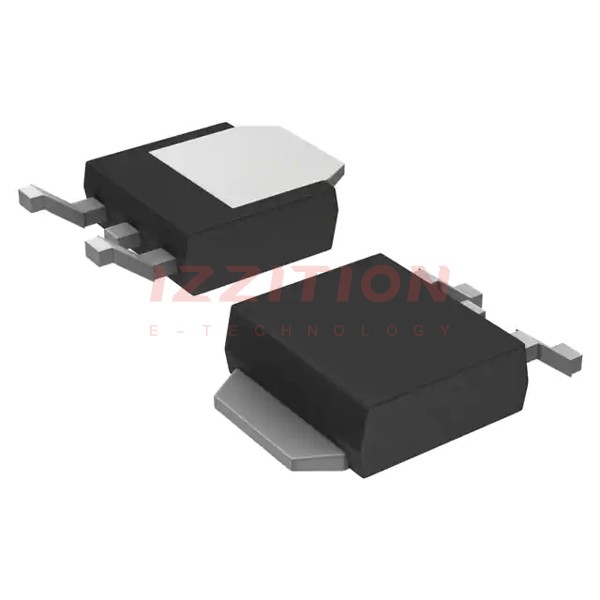

onsemi NVD6416ANLT4G-VF01

Manufacturer No:
NVD6416ANLT4G-VF01
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 19A DPAK-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The onsemi NVD6416ANLT4G-VF01 is a high-performance N-Channel Power MOSFET designed for various power management and control applications. This device is part of the NVD6416ANL series and is packaged in a TO-252-3 (DPAK) surface mount configuration. It is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other demanding applications that require unique site and control change requirements. The MOSFET features a low on-resistance (RDS(on)) of 74 mΩ, high current capability of 19 A, and a voltage rating of 100 V. It is also 100% avalanche tested and RoHS compliant, ensuring reliability and environmental compliance.

Key Specifications

Parameter Description Value Unit
FET Type N-Channel
Drain-to-Source Voltage (Vdss) Maximum Drain-to-Source Voltage 100 V
Drain Current (ID) Continuous Drain Current at TC = 25°C 19 A
Drain-Source On Resistance (RDS(on)) Maximum On Resistance at VGS = 10 V, ID = 19 A 74 mΩ
Power Dissipation (PD) Steady State Power Dissipation at TC = 25°C 71 W
Gate-Source Voltage (Vgss) Maximum Gate-Source Voltage ±20 V
Gate Threshold Voltage (VGS(TH)) Gate Threshold Voltage at ID = 250 μA 1.0 - 2.2 V
Operating Temperature Range Operating Temperature Range -55°C to +175°C °C
Package Style Package Type TO-252-3 (DPAK)
Mounting Method Mounting Type Surface Mount

Key Features

  • Low RDS(on): The MOSFET has a low on-resistance of 74 mΩ, which minimizes power losses and enhances efficiency.
  • High Current Capability: It can handle a continuous drain current of 19 A, making it suitable for high-power applications.
  • 100% Avalanche Tested: Ensures the device can withstand high-energy pulses, enhancing reliability.
  • AEC-Q101 Qualified and PPAP Capable: Suitable for automotive and other applications requiring stringent quality and reliability standards.
  • RoHS Compliant: The device is lead-free and complies with RoHS regulations, ensuring environmental compliance).
  • Wide Operating Temperature Range: Operates from -55°C to +175°C, making it versatile for various environments).

Applications

  • Automotive Systems: Suitable for automotive applications due to its AEC-Q101 qualification and PPAP capability).
  • Power Management: Ideal for power management in DC-DC converters, motor control, and power supplies).
  • Industrial Control: Used in industrial control systems, including motor drives and power inverters).
  • Consumer Electronics: Can be used in high-power consumer electronics such as power supplies and battery chargers).

Q & A

  1. What is the maximum drain-to-source voltage of the NVD6416ANLT4G-VF01 MOSFET?

    The maximum drain-to-source voltage is 100 V).

  2. What is the continuous drain current rating of this MOSFET?

    The continuous drain current rating is 19 A at TC = 25°C).

  3. What is the on-resistance (RDS(on)) of the NVD6416ANLT4G-VF01?

    The maximum on-resistance is 74 mΩ at VGS = 10 V and ID = 19 A).

  4. Is the NVD6416ANLT4G-VF01 RoHS compliant?

    Yes, the device is RoHS compliant and lead-free).

  5. What is the operating temperature range of this MOSFET?

    The operating temperature range is -55°C to +175°C).

  6. What package type is the NVD6416ANLT4G-VF01 available in?

    The device is packaged in a TO-252-3 (DPAK) surface mount configuration).

  7. Is the NVD6416ANLT4G-VF01 suitable for automotive applications?

    Yes, it is AEC-Q101 qualified and PPAP capable, making it suitable for automotive applications).

  8. What is the gate threshold voltage of the NVD6416ANLT4G-VF01?

    The gate threshold voltage is between 1.0 V and 2.2 V at ID = 250 μA).

  9. What is the maximum gate-source voltage for this MOSFET?

    The maximum gate-source voltage is ±20 V).

  10. How many devices are typically shipped per reel?

    2500 devices are typically shipped per reel).

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:19A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:74mOhm @ 19A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:40 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1000 pF @ 25 V
FET Feature:-
Power Dissipation (Max):71W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK-3
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$0.51
1,685

Please send RFQ , we will respond immediately.

Same Series
NTD6416ANLT4G
NTD6416ANLT4G
MOSFET N-CH 100V 19A DPAK
NTD6416ANL-1G
NTD6416ANL-1G
MOSFET N-CH 100V 19A IPAK

Similar Products

Part Number NVD6416ANLT4G-VF01 NVD6416ANT4G-VF01 NVD6415ANLT4G-VF01
Manufacturer onsemi onsemi onsemi
Product Status Active Active Obsolete
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 100 V 100 V
Current - Continuous Drain (Id) @ 25°C 19A (Tc) 17A (Tc) 23A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 74mOhm @ 19A, 10V 81mOhm @ 17A, 10V 52mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250µA 4V @ 250µA 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 40 nC @ 10 V 20 nC @ 10 V 20 nC @ 4.5 V
Vgs (Max) ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1000 pF @ 25 V 620 pF @ 25 V 1024 pF @ 25 V
FET Feature - - -
Power Dissipation (Max) 71W (Tc) 71W (Tc) 83W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package DPAK-3 DPAK-3 DPAK-3
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63
