NVD6416ANLT4G-001-VF01
  • Share:

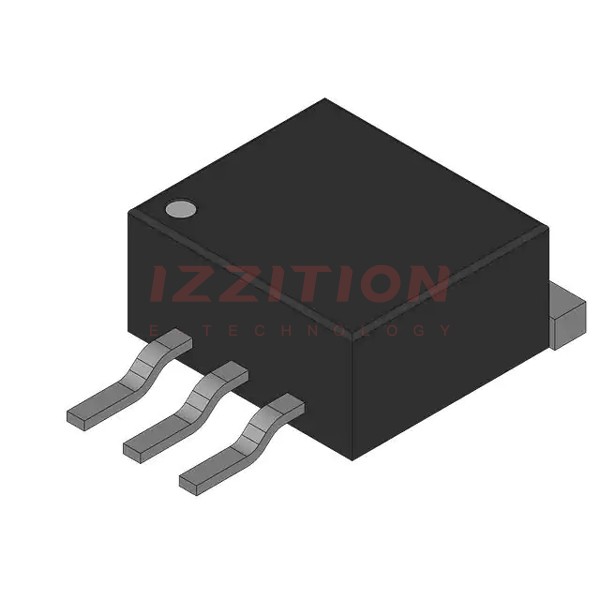

onsemi NVD6416ANLT4G-001-VF01

Manufacturer No:
NVD6416ANLT4G-001-VF01
Manufacturer:
onsemi
Package:
Bulk
Description:
NVD6416 - N-CHANNEL POWER MOSFET
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The onsemi NVD6416ANLT4G-001-VF01 is a high-performance N-Channel power MOSFET designed for various applications requiring high current capability and low on-resistance. This device is part of onsemi's portfolio of automotive and industrial-grade MOSFETs, ensuring reliability and compliance with stringent industry standards. The NVD6416ANLT4G-001-VF01 is packaged in a DPAK-3 format, which is lead-free and RoHS compliant, making it suitable for a wide range of electronic systems.

Key Specifications

Parameter Symbol Value Unit
Drain-to-Source Voltage VDSS 100 V
Gate-to-Source Voltage - Continuous VGS ±20 V
Continuous Drain Current (TC = 25°C) ID 19 A
Power Dissipation (TC = 25°C) PD 71 W
Drain-to-Source On-Resistance (VGS = 10V, ID = 19A) RDS(on) 74 mΩ mΩ
Operating and Storage Temperature Range TJ, Tstg -55 to +175 °C
Single Pulse Drain-to-Source Avalanche Energy EAS 50 mJ mJ
Lead Temperature for Soldering Purposes TL 260 °C

Key Features

  • Low RDS(on): The MOSFET features a low on-resistance of 74 mΩ at VGS = 10V and ID = 19A, enhancing efficiency in power applications.
  • High Current Capability: It can handle a continuous drain current of 19A at TC = 25°C, making it suitable for high-power applications.
  • 100% Avalanche Tested: Ensures robustness and reliability under extreme conditions.
  • AEC-Q101 Qualified and PPAP Capable: Meets automotive industry standards, making it ideal for automotive and other demanding applications.
  • Pb-Free and RoHS Compliant: Environmentally friendly and compliant with global regulations.

Applications

  • Automotive Systems: Suitable for various automotive applications due to its AEC-Q101 qualification and PPAP capability.
  • Industrial Power Systems: Used in industrial power supplies, motor control, and other high-power applications.
  • Power Management: Ideal for power management in electronic devices requiring high efficiency and reliability.
  • Renewable Energy Systems: Can be used in solar and wind power systems for efficient power conversion.

Q & A

  1. What is the maximum drain-to-source voltage of the NVD6416ANLT4G-001-VF01?

    The maximum drain-to-source voltage (VDSS) is 100V.

  2. What is the continuous drain current rating at 25°C?

    The continuous drain current (ID) is 19A at TC = 25°C.

  3. What is the on-resistance of the MOSFET at VGS = 10V and ID = 19A?

    The on-resistance (RDS(on)) is 74 mΩ at VGS = 10V and ID = 19A.

  4. Is the NVD6416ANLT4G-001-VF01 RoHS compliant?
  5. What is the operating temperature range of the MOSFET?
  6. What package type is used for the NVD6416ANLT4G-001-VF01?
  7. Is the NVD6416ANLT4G-001-VF01 suitable for automotive applications?
  8. What is the maximum power dissipation of the MOSFET at 25°C?
  9. What is the single pulse drain-to-source avalanche energy rating?
  10. What is the lead temperature for soldering purposes?

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:19A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:74mOhm @ 19A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:40 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1000 pF @ 25 V
FET Feature:-
Power Dissipation (Max):71W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK-3
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

-
343

Please send RFQ , we will respond immediately.
