NVC3S5A51PLZT1G
  • Share:

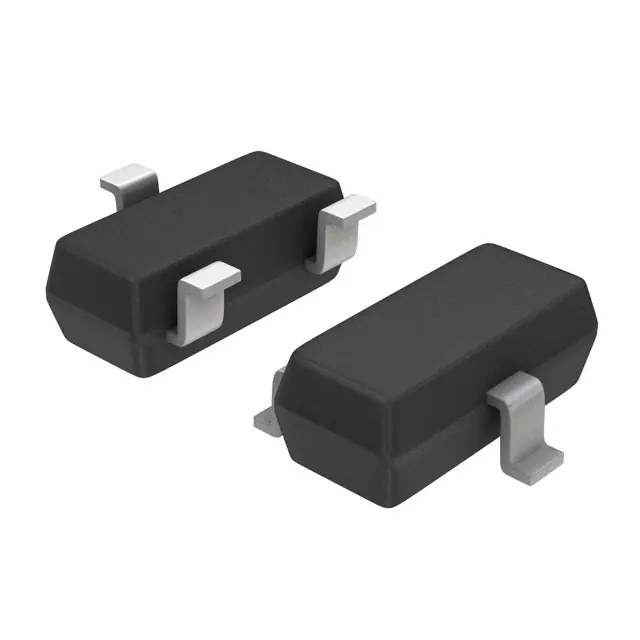

onsemi NVC3S5A51PLZT1G

Manufacturer No:
NVC3S5A51PLZT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 60V 1.8A 3CPH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVC3S5A51PLZT1G is a P-Channel Power MOSFET manufactured by onsemi. This device is designed for automotive applications and features a robust set of specifications that make it suitable for a variety of power management tasks. With its high operating temperature and low power dissipation, it is an ideal choice for systems requiring reliable and efficient power handling.

Key Specifications

ParameterValue
Channel ModeEnhancement
Voltage Rating (Vds)60 V
Current Rating (Id)1.8 A (Ta)
Power Dissipation (Pd)1.2 W (Ta)
Maximum Operating Temperature+175°C
QualificationAEC-Q101
Package TypeSurface Mount 3-CPH

Key Features

  • High voltage rating of 60 V, making it suitable for various automotive applications.
  • Low power dissipation of 1.2 W, enhancing efficiency and reducing heat generation.
  • High maximum operating temperature of +175°C, ensuring reliability in harsh environments.
  • AEC-Q101 qualified, meeting stringent automotive standards.
  • Surface mount 3-CPH package, facilitating easy integration into modern PCB designs.

Applications

The NVC3S5A51PLZT1G is primarily designed for automotive applications, including but not limited to:

  • Power management in vehicle systems.
  • Motor control and drive systems.
  • Battery management systems.
  • Other high-reliability power handling tasks within the automotive sector.

Q & A

  1. What is the voltage rating of the NVC3S5A51PLZT1G MOSFET?
    The voltage rating is 60 V.
  2. What is the current rating of the NVC3S5A51PLZT1G MOSFET?
    The current rating is 1.8 A (Ta).
  3. What is the maximum operating temperature of the NVC3S5A51PLZT1G MOSFET?
    The maximum operating temperature is +175°C.
  4. Is the NVC3S5A51PLZT1G MOSFET AEC-Q101 qualified?
    Yes, it is AEC-Q101 qualified.
  5. What is the package type of the NVC3S5A51PLZT1G MOSFET?
    The package type is Surface Mount 3-CPH.
  6. What are the primary applications of the NVC3S5A51PLZT1G MOSFET?
    The primary applications include power management, motor control, and battery management in automotive systems.
  7. What is the power dissipation of the NVC3S5A51PLZT1G MOSFET?
    The power dissipation is 1.2 W (Ta).
  8. Why is the NVC3S5A51PLZT1G MOSFET suitable for harsh environments?
    It is suitable due to its high maximum operating temperature and AEC-Q101 qualification.
  9. Can the NVC3S5A51PLZT1G MOSFET be used in non-automotive applications?
    While it is primarily designed for automotive use, it can be considered for other high-reliability applications requiring similar specifications.
  10. Where can I find detailed specifications and datasheets for the NVC3S5A51PLZT1G MOSFET?
    Detailed specifications and datasheets can be found on the official onsemi website, as well as through distributors like Mouser and Digi-Key.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4V, 10V
Rds On (Max) @ Id, Vgs:250mOhm @ 1A, 10V
Vgs(th) (Max) @ Id:2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:6 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:262 pF @ 20 V
FET Feature:-
Power Dissipation (Max):1.2W (Ta)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:3-CPH
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

-
126

Please send RFQ , we will respond immediately.
