NTMFSC004N08MC
  • Share:

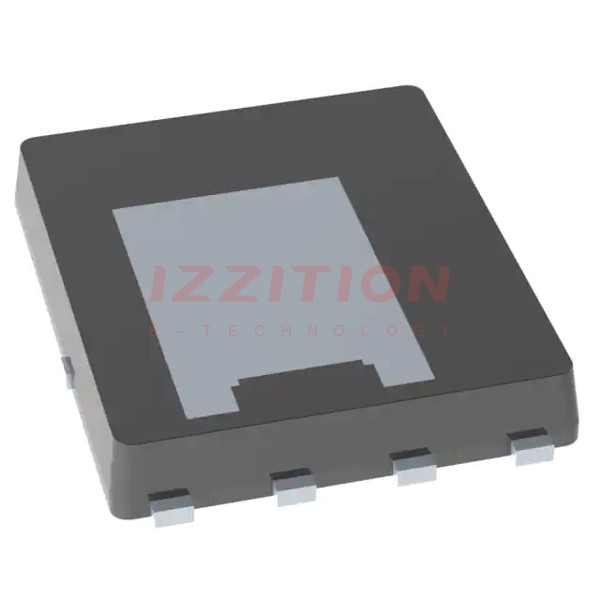

onsemi NTMFSC004N08MC

Manufacturer No:
NTMFSC004N08MC
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 80V 86A/136A 8DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTMFSC004N08MC is an N-Channel MOSFET produced by ON Semiconductor, utilizing their advanced Power Trench® process. This MOSFET combines advancements in silicon and Dual Cool™ package technologies to offer the lowest rDS(on) while maintaining excellent switching performance and extremely low Junction-to-Ambient thermal resistance.

Key Specifications

ParameterValue
Channel PolarityN-Channel
Package TypeDFN-8
VDS (V)80 V
rDS(on) Max @ VGS = 10 V4.0 mΩ
rDS(on) Max @ VGS = 6 V8.5 mΩ
ID Max (A)136 A
PD Max (W)2980 W
VGS(th) Max (V)4 V
Qg Typ @ VGS = 10 V (nC)50 nC
Ciss Typ (pF)950 pF

Key Features

  • Advanced Power Trench® process for high performance.
  • Dual Cool™ Top Side Cooling PQFN package for efficient thermal management.
  • Extremely low rDS(on) of 4.0 mΩ at VGS = 10 V, ID = 44 A.
  • 100% UIL Tested for reliability.
  • RoHS Compliant.

Applications

  • Synchronous rectifier.
  • Primary MOSFET on 48V isolated Converter.
  • AC-DC Power Supply.
  • Isolated DC-DC Converter.

Q & A

  1. What is the channel polarity of the NTMFSC004N08MC MOSFET?
    The NTMFSC004N08MC is an N-Channel MOSFET.
  2. What is the maximum drain-to-source voltage (VDS) of the NTMFSC004N08MC?
    The maximum VDS is 80 V.
  3. What is the typical on-resistance (rDS(on)) at VGS = 10 V?
    The typical rDS(on) at VGS = 10 V is 4.0 mΩ.
  4. What is the maximum continuous drain current (ID)?
    The maximum ID is 136 A.
  5. What type of package does the NTMFSC004N08MC use?
    The NTMFSC004N08MC uses a DFN-8 package.
  6. Is the NTMFSC004N08MC RoHS compliant?
    Yes, the NTMFSC004N08MC is RoHS compliant.
  7. What are some common applications of the NTMFSC004N08MC?
    Common applications include synchronous rectifier, primary MOSFET on 48V isolated Converter, AC-DC Power Supply, and isolated DC-DC Converter.
  8. What is the significance of the Dual Cool™ package?
    The Dual Cool™ package provides efficient thermal management through top side cooling.
  9. What is the typical gate charge (Qg) at VGS = 10 V?
    The typical Qg at VGS = 10 V is 50 nC.
  10. Is the NTMFSC004N08MC 100% UIL tested?
    Yes, the NTMFSC004N08MC is 100% UIL tested.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):80 V
Current - Continuous Drain (Id) @ 25°C:86A (Ta), 136A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:4mOhm @ 44A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:43.4 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2980 pF @ 40 V
FET Feature:-
Power Dissipation (Max):51W (Ta), 127W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-DFN (5x6.15)
Package / Case:8-PowerVDFN
