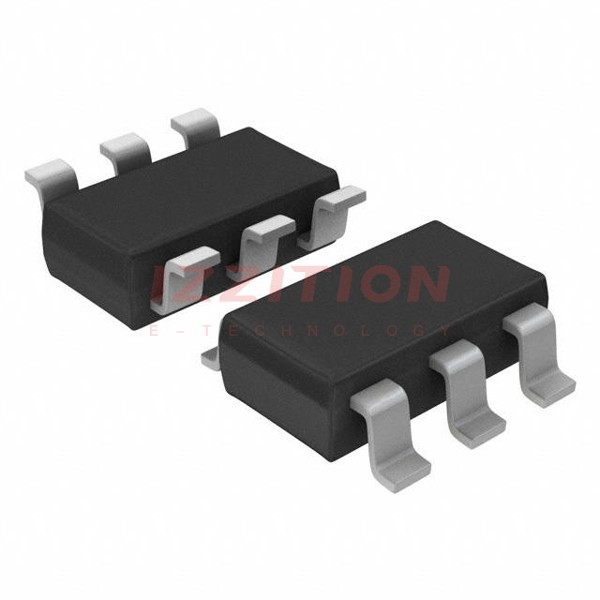

onsemi NTGS5120PT1G

Manufacturer No:
NTGS5120PT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 60V 1.8A 6TSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTGS5120PT1G is a high-performance power MOSFET produced by onsemi, designed to meet the demands of various power management and switching applications. This device is part of onsemi's portfolio of power MOSFETs, known for their reliability, efficiency, and robust performance. The NTGS5120PT1G is packaged in a TSOP-6 (SOT-23-6) package, which is Pb-free and RoHS compliant, making it suitable for a wide range of modern electronic systems.

Key Specifications

ParameterValue
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Continuous Drain Current (Id) @ 25°C1.8 A
Maximum Power Dissipation (Pd)1.4 W
Minimum Operating Temperature-55°C
Maximum Operating Temperature+150°C
On-Resistance (Rds(on)) @ 10V, 3A95 mΩ
Package TypeTSOP-6 (SOT-23-6)

Key Features

  • High efficiency with low on-resistance (Rds(on)) of 95 mΩ @ 10V, 3A.
  • Wide operating temperature range from -55°C to +150°C.
  • High continuous drain current of 1.8 A.
  • Pb-free and RoHS compliant TSOP-6 (SOT-23-6) package.
  • Enhancement mode operation.

Applications

The NTGS5120PT1G is suitable for a variety of applications including power management, DC-DC converters, motor control, and general-purpose switching. Its high efficiency and robust performance make it an ideal choice for automotive, industrial, and consumer electronics.

Q & A

  1. What is the maximum drain to source voltage (Vdss) of the NTGS5120PT1G?
    The maximum drain to source voltage (Vdss) is 60 V.
  2. What is the continuous drain current (Id) at 25°C?
    The continuous drain current (Id) at 25°C is 1.8 A.
  3. What is the on-resistance (Rds(on)) of the NTGS5120PT1G?
    The on-resistance (Rds(on)) is 95 mΩ @ 10V, 3A.
  4. What is the operating temperature range of the NTGS5120PT1G?
    The operating temperature range is from -55°C to +150°C.
  5. Is the NTGS5120PT1G Pb-free and RoHS compliant?
    Yes, the NTGS5120PT1G is Pb-free and RoHS compliant.
  6. What is the package type of the NTGS5120PT1G?
    The package type is TSOP-6 (SOT-23-6).
  7. What are some typical applications of the NTGS5120PT1G?
    Typical applications include power management, DC-DC converters, motor control, and general-purpose switching.
  8. What is the maximum power dissipation (Pd) of the NTGS5120PT1G?
    The maximum power dissipation (Pd) is 1.4 W.
  9. Is the NTGS5120PT1G suitable for automotive applications?
    Yes, the NTGS5120PT1G is suitable for automotive applications due to its robust performance and wide operating temperature range.
  10. What is the technology used in the NTGS5120PT1G?
    The technology used is MOSFET (Metal Oxide).

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:111mOhm @ 2.9A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:18.1 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:942 pF @ 30 V
FET Feature:-
Power Dissipation (Max):600mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-TSOP
Package / Case:SOT-23-6 Thin, TSOT-23-6
