Overview

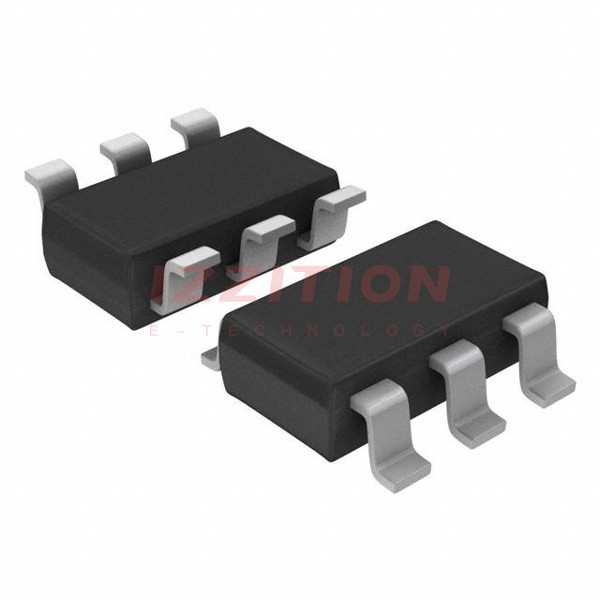

The NTGS4141NT1G is a power, single, N-Channel MOSFET produced by onsemi. This device is packaged in a TSOP-6 case and is designed for high-performance applications. It features low RDS(on) and low gate charge, making it suitable for various power management and switching applications. The NVGS4141N variant is AEC-Q101 qualified and PPAP capable, catering to automotive and other demanding environments.
Key Specifications
| Characteristic | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Drain-to-Source Voltage | VDSS | 30 | V | ||
| Gate-to-Source Voltage | VGS | ±20 | V | ||
| Continuous Drain Current (TA = 25°C) | ID | 5.0 | A | ||
| Continuous Drain Current (TA = 85°C) | ID | 3.6 | A | ||
| Pulsed Drain Current (tp = 10 μs, VGS = 10 V) | IDM | 45 | A | ||
| Power Dissipation (TA = 25°C, Steady State) | PD | 1.0 | W | ||
| Operating Junction and Storage Temperature | TJ, TSTG | -55 | 150 | °C | |
| Drain-to-Source On Resistance (VGS = 10 V, ID = 7.0 A) | RDS(on) | 21.5 | 25 | mΩ | |
| Gate Threshold Voltage | VGS(TH) | 1.0 | 3.0 | V |
Key Features
- Low RDS(on) for reduced power losses
- Low gate charge for efficient switching
- AEC-Q101 qualified and PPAP capable for automotive and other demanding applications
- Pb-Free package available
- High continuous drain current and pulsed drain current capabilities
- Wide operating junction and storage temperature range (-55°C to 150°C)
Applications
- Load Switch
- Notebook PC
- Desktop PC
- Automotive systems (for NVGS4141N variant)
Q & A
- What is the maximum drain-to-source voltage of the NTGS4141NT1G?
The maximum drain-to-source voltage is 30 V.
- What is the typical drain-to-source on resistance at VGS = 10 V and ID = 7.0 A?
The typical drain-to-source on resistance is 21.5 mΩ.
- What are the operating junction and storage temperature ranges for this MOSFET?
The operating junction and storage temperature ranges are -55°C to 150°C.
- Is the NTGS4141NT1G AEC-Q101 qualified?
No, but the NVGS4141N variant is AEC-Q101 qualified and PPAP capable.
- What is the maximum continuous drain current at TA = 25°C?
The maximum continuous drain current at TA = 25°C is 5.0 A.
- What is the maximum pulsed drain current for tp = 10 μs and VGS = 10 V?
The maximum pulsed drain current is 45 A.
- What is the typical gate threshold voltage?
The typical gate threshold voltage is between 1.0 V and 3.0 V.
- What are some common applications for the NTGS4141NT1G?
Common applications include load switches, notebook PCs, and desktop PCs.
- Is the package Pb-Free?
- What is the maximum power dissipation at TA = 25°C?
The maximum power dissipation at TA = 25°C is 1.0 W.
