NTB004N10G
  • Share:

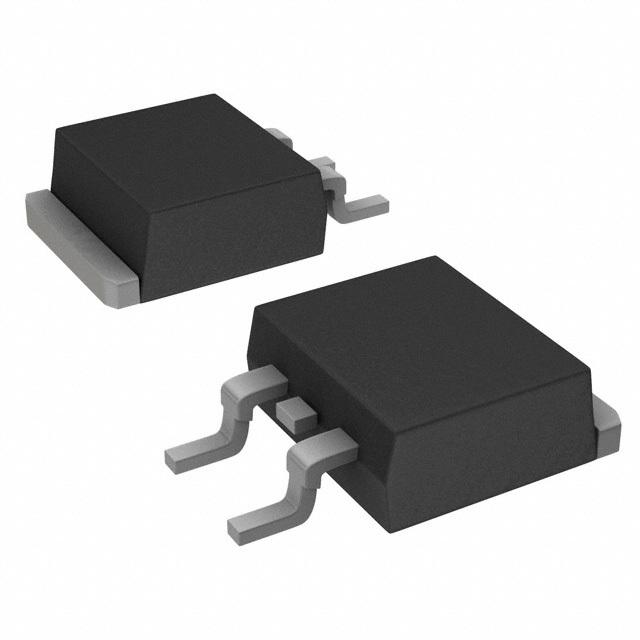

onsemi NTB004N10G

Manufacturer No:
NTB004N10G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 201A TO263
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTB004N10G is a high-performance, N-Channel power MOSFET produced by onsemi. This device is designed to offer low on-resistance (RDS(on)) and high current capability, making it suitable for a variety of power management applications. The NTB004N10G features a drain-to-source voltage (VDS) of 100 V, a continuous drain current (ID) of up to 201 A at 25°C, and a maximum power dissipation of 340 W. It is also Pb-free and RoHS compliant, ensuring environmental sustainability.

Key Specifications

Parameter Symbol Value Unit
Drain-to-Source Voltage VDS 100 V
Gate-to-Source Voltage - Continuous VGS ±20 V
Continuous Drain Current (TC = 25°C) ID 201 A
Continuous Drain Current (TC = 100°C) ID 142 A
Power Dissipation (TC = 25°C) PD 340 W
Pulsed Drain Current (tp = 10 μs) IDM 3002 A
Operating Junction and Storage Temperature Range TJ, Tstg -55 to +175 °C
Source Current (Body Diode) IS 283 A
Single Pulse Drain-to-Source Avalanche Energy EAS 520 mJ
Lead Temperature for Soldering Purposes TL 260 °C
Junction-to-Case Thermal Resistance RθJC 0.44 °C/W
Junction-to-Ambient Thermal Resistance RθJA 62.5 °C/W
Gate Threshold Voltage VGS(th) 2.0 - 4.0 V
Drain-to-Source On-Resistance (RDS(on)) RDS(on) 3.4 - 4.2 mΩ @ 10 V mΩ

Key Features

  • Low RDS(on): The NTB004N10G features a low on-resistance of 3.4 to 4.2 mΩ at 10 V, which minimizes power losses and enhances efficiency.
  • High Current Capability: With a continuous drain current of up to 201 A at 25°C, this MOSFET is suitable for high-power applications.
  • Wide Safe Operating Area (SOA): The device has a wide SOA, ensuring reliable operation under various conditions.
  • Pb-free and RoHS Compliant: The NTB004N10G is environmentally friendly, adhering to Pb-free and RoHS standards.

Applications

  • Hot Swap in 48 V Systems: The NTB004N10G is particularly suited for hot swap applications in 48 V systems due to its high current and voltage ratings.
  • Power Management Systems: It can be used in various power management systems requiring high efficiency and reliability.
  • Industrial and Automotive Systems: The device is also applicable in industrial and automotive systems where high power handling is necessary.

Q & A

  1. What is the maximum drain-to-source voltage of the NTB004N10G?

    The maximum drain-to-source voltage (VDS) is 100 V.

  2. What is the continuous drain current rating at 25°C?

    The continuous drain current (ID) at 25°C is up to 201 A.

  3. What is the typical on-resistance (RDS(on)) of the NTB004N10G?

    The typical on-resistance (RDS(on)) is 4.2 mΩ at 10 V.

  4. Is the NTB004N10G Pb-free and RoHS compliant?

    Yes, the NTB004N10G is Pb-free and RoHS compliant.

  5. What is the operating junction temperature range of the NTB004N10G?

    The operating junction temperature range is -55 to +175°C.

  6. What is the maximum power dissipation of the NTB004N10G at 25°C?

    The maximum power dissipation (PD) at 25°C is 340 W.

  7. What is the single pulse drain-to-source avalanche energy rating?

    The single pulse drain-to-source avalanche energy (EAS) is 520 mJ.

  8. What is the lead temperature for soldering purposes?

    The lead temperature for soldering purposes is 260°C.

  9. What are some typical applications of the NTB004N10G?

    Typical applications include hot swap in 48 V systems, power management systems, and industrial and automotive systems.

  10. What is the junction-to-case thermal resistance of the NTB004N10G?

    The junction-to-case thermal resistance (RθJC) is 0.44 °C/W.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:201A (Ta)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:4.2mOhm @ 100A, 10V
Vgs(th) (Max) @ Id:4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs:175 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:11900 pF @ 50 V
FET Feature:-
Power Dissipation (Max):340W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D²PAK-3 (TO-263-3)
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$6.80
23

Please send RFQ , we will respond immediately.
