Overview

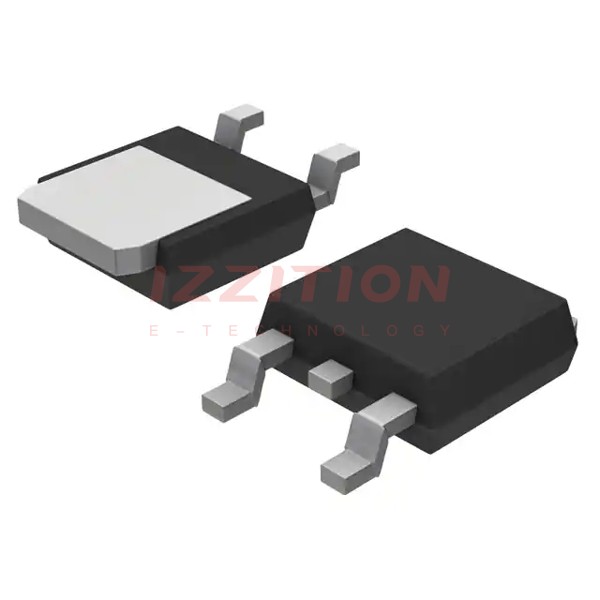

The MTD6N20ET4 is an advanced Power MOSFET from onsemi, designed to withstand high energy in avalanche and commutation modes. This N-Channel MOSFET is part of the PowerTrench® T1 family and is housed in a DPAK-3 package. It is particularly suited for low voltage, high speed switching applications in power supplies, converters, and PWM motor controls. The device features a drain-to-source diode with a fast recovery time, making it ideal for bridge circuits where diode speed and commutating safe operating areas are critical.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | 200 | Vdc |
| Drain Current | ID | 6 | A |
| Drain-to-Source On-Resistance (VGS = 10 Vdc, ID = 3.0 A) | RDS(on) | 0.46 - 0.700 | Ohm |
| Gate Threshold Voltage | VGS(th) | 2.0 - 4.0 | Vdc |
| Maximum Temperature for Soldering Purposes | TL | 260 | °C |
| Input Capacitance (VDS = 25 Vdc, VGS = 0 Vdc, f = 1.0 MHz) | Ciss | 342 - 480 | pF |
| Output Capacitance | Coss | 92 - 130 | pF |
| Reverse Transfer Capacitance | Crss | 27 - 55 | pF |
Key Features
- Avalanche Energy Specified
- Source-to-Drain Diode Recovery Time Comparable to a Discrete Fast Recovery Diode
- Diode is Characterized for Use in Bridge Circuits
- IDSS and VDS(on) Specified at Elevated Temperature
- Pb-Free and RoHS Compliant Packages
Applications
The MTD6N20ET4 is designed for use in various high-speed switching applications, including:
- Power supplies
- Converters
- PWM motor controls
- Bridge circuits where diode speed and commutating safe operating areas are critical
Q & A
- What is the maximum drain-to-source voltage of the MTD6N20ET4?
The maximum drain-to-source voltage (VDSS) is 200 Vdc. - What is the maximum drain current of the MTD6N20ET4?
The maximum drain current (ID) is 6 A. - What is the typical drain-to-source on-resistance of the MTD6N20ET4?
The typical drain-to-source on-resistance (RDS(on)) is 0.46 - 0.700 Ohm at VGS = 10 Vdc and ID = 3.0 A. - What is the gate threshold voltage range of the MTD6N20ET4?
The gate threshold voltage (VGS(th)) range is 2.0 - 4.0 Vdc. - Is the MTD6N20ET4 Pb-Free and RoHS compliant?
Yes, the MTD6N20ET4 is Pb-Free and RoHS compliant. - What is the maximum temperature for soldering purposes?
The maximum temperature for soldering purposes is 260°C. - What are the typical input, output, and reverse transfer capacitances?
The typical input capacitance (Ciss) is 342 - 480 pF, output capacitance (Coss) is 92 - 130 pF, and reverse transfer capacitance (Crss) is 27 - 55 pF. - What are the primary applications of the MTD6N20ET4?
The primary applications include power supplies, converters, PWM motor controls, and bridge circuits. - What package type is the MTD6N20ET4 available in?
The MTD6N20ET4 is available in a DPAK-3 package. - Is the MTD6N20ET4 suitable for high-speed switching applications?
Yes, it is designed for low voltage, high speed switching applications.
