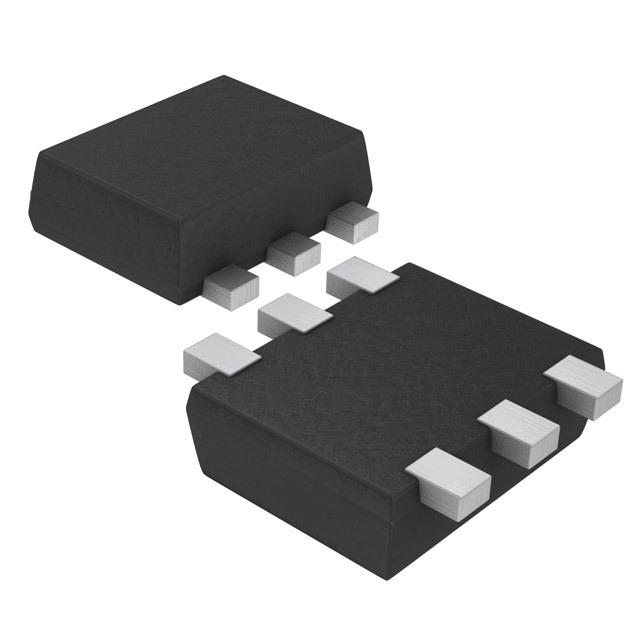

onsemi MCH6445-TL-W

Manufacturer No:
MCH6445-TL-W
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 4A 6MCPH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MCH6445-TL-W is a power MOSFET produced by onsemi, designed to offer high performance and reliability in various power management applications. This component is part of onsemi's portfolio of power MOSFETs, which are known for their low on-resistance and high current handling capabilities.

However, it is important to note that the MCH6445-TL-W has been discontinued by onsemi as part of their product portfolio renewal process. Customers are advised to consider alternative devices or replacement parts as recommended by the manufacturer.

Key Specifications

Parameter Value
Vds - Drain-Source Breakdown Voltage 60 V
Id - Continuous Drain Current 4 A
Rds On - Drain-Source Resistance 60 mOhms
Vgs - Gate-Source Voltage -20 to +20 V

Key Features

  • Low On-Resistance: The MCH6445-TL-W features a low drain-source on-resistance (Rds On) of 60 mOhms, which helps in reducing power losses and improving efficiency in power management circuits.
  • High Current Handling: With a continuous drain current (Id) of 4 A, this MOSFET is suitable for applications requiring high current handling.
  • High Breakdown Voltage: The component has a drain-source breakdown voltage (Vds) of 60 V, ensuring robust performance under various operating conditions.
  • Compact Package: The TL-W package is designed to be compact and efficient, making it suitable for space-constrained applications.

Applications

The MCH6445-TL-W is designed for use in a variety of power management applications, including but not limited to:

  • DC-DC converters
  • Power supplies
  • Motor control circuits
  • Switching regulators
  • General-purpose power switching

Q & A

  1. What is the continuous drain current of the MCH6445-TL-W?

    The continuous drain current (Id) of the MCH6445-TL-W is 4 A.

  2. What is the drain-source breakdown voltage of the MCH6445-TL-W?

    The drain-source breakdown voltage (Vds) of the MCH6445-TL-W is 60 V.

  3. What is the on-resistance of the MCH6445-TL-W?

    The drain-source on-resistance (Rds On) of the MCH6445-TL-W is 60 mOhms.

  4. Why has the MCH6445-TL-W been discontinued?

    The MCH6445-TL-W has been discontinued as part of onsemi's product portfolio renewal process, where they are exiting unprofitable legacy products to focus on strategic markets.

  5. What are the recommended replacement parts for the MCH6445-TL-W?

    onsemi recommends the SSM6K407TU from Toshiba as a replacement part for the MCH6445-TL-W.

  6. In what types of applications is the MCH6445-TL-W typically used?

    The MCH6445-TL-W is typically used in DC-DC converters, power supplies, motor control circuits, switching regulators, and general-purpose power switching.

  7. What is the gate-source voltage range for the MCH6445-TL-W?

    The gate-source voltage (Vgs) range for the MCH6445-TL-W is -20 to +20 V.

  8. How can I find more detailed specifications for the MCH6445-TL-W?

    You can find more detailed specifications in the datasheet available from onsemi's official website or through distributors like Mouser Electronics.

  9. What is the last ship date for the MCH6445-TL-W?

    The last ship date for the MCH6445-TL-W was July 5, 2022.

  10. Where can I purchase replacement parts for the MCH6445-TL-W?

    Replacement parts can be purchased from recommended suppliers such as Toshiba, or through distributors that carry the suggested replacement devices.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4V, 10V
Rds On (Max) @ Id, Vgs:78mOhm @ 2A, 10V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:10 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:505 pF @ 20 V
FET Feature:-
Power Dissipation (Max):1.5W (Ta)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-MCPH
Package / Case:6-SMD, Flat Leads
0 Remaining View Similar

In Stock

-
223

Please send RFQ , we will respond immediately.

Similar Products

Part Number MCH6445-TL-W MCH6448-TL-W MCH6444-TL-W MCH6445-TL-E
Manufacturer onsemi onsemi onsemi onsemi
Product Status Obsolete Obsolete Obsolete Obsolete
FET Type N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V 20 V 35 V 60 V
Current - Continuous Drain (Id) @ 25°C 4A (Ta) 8A (Ta) 2.5A (Ta) 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V 1.2V, 4.5V 4V, 10V -
Rds On (Max) @ Id, Vgs 78mOhm @ 2A, 10V 22mOhm @ 4A, 4.5V 98mOhm @ 1.5A, 10V 78mOhm @ 2A, 10V
Vgs(th) (Max) @ Id - 1V @ 1mA 2.6V @ 1mA -
Gate Charge (Qg) (Max) @ Vgs 10 nC @ 10 V 11.2 nC @ 4.5 V 4 nC @ 10 V 10 nC @ 10 V
Vgs (Max) ±20V ±9V ±20V -
Input Capacitance (Ciss) (Max) @ Vds 505 pF @ 20 V 705 pF @ 10 V 186 pF @ 20 V 505 pF @ 20 V
FET Feature - - - -
Power Dissipation (Max) 1.5W (Ta) 1.5W (Ta) 800mW (Ta) -
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package 6-MCPH SC-88FL/MCPH6 SC-88FL/MCPH6 6-MCPH
Package / Case 6-SMD, Flat Leads 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-SMD, Flat Leads
