FQP17P10
  • Share:

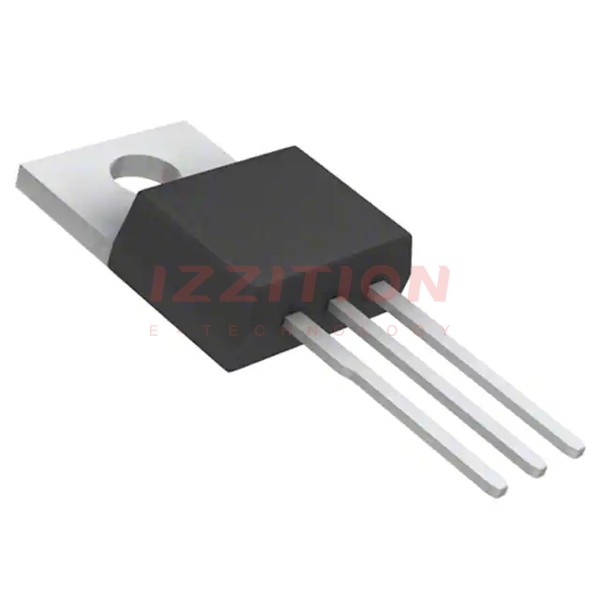

onsemi FQP17P10

Manufacturer No:
FQP17P10
Manufacturer:
onsemi
Package:
Bulk
Description:
MOSFET P-CH 100V 16.5A TO220-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FQP17P10 is a P-Channel MOSFET produced by onsemi, formerly known as Fairchild Semiconductor. This device is part of the QFET® series and is designed for high-performance applications. It features a low on-resistance and is suitable for various power management and control tasks. The FQP17P10 is particularly noted for its dual protection with temperature and current limits, making it a reliable choice for demanding environments.

Key Specifications

ParameterValue
Voltage Rating (Vds)100 V
Continuous Drain Current (Id)16.5 A
On-Resistance (Rds(on))190 mΩ
Gate Threshold Voltage (Vgs(th))1 to 3 V
Package Type3-Pin TO-220AB
Gate LevelStandard 40V

Key Features

  • Dual protection with temperature and current limits
  • Low on-resistance (190 mΩ)
  • Standard 40V gate level
  • Suitable for low-side smart, discrete device applications
  • High efficiency and reliability

Applications

  • Switched mode power supplies
  • Audio amplifiers
  • DC motor control
  • High efficiency switching DC/DC converters
  • Variable switching power applications

Q & A

  1. What is the voltage rating of the FQP17P10 MOSFET?
    The voltage rating of the FQP17P10 MOSFET is 100 V.
  2. What is the continuous drain current of the FQP17P10?
    The continuous drain current of the FQP17P10 is 16.5 A.
  3. What is the on-resistance of the FQP17P10?
    The on-resistance of the FQP17P10 is 190 mΩ.
  4. What type of package does the FQP17P10 come in?
    The FQP17P10 comes in a 3-Pin TO-220AB package.
  5. What are the key applications of the FQP17P10?
    The FQP17P10 is suitable for switched mode power supplies, audio amplifiers, DC motor control, and high efficiency switching DC/DC converters.
  6. Does the FQP17P10 have any built-in protection features?
    Yes, the FQP17P10 has dual protection with temperature and current limits.
  7. What is the gate threshold voltage range of the FQP17P10?
    The gate threshold voltage range of the FQP17P10 is 1 to 3 V.
  8. Is the FQP17P10 suitable for high-efficiency applications?
    Yes, the FQP17P10 is designed for high-efficiency applications.
  9. Who is the manufacturer of the FQP17P10?
    The FQP17P10 is manufactured by onsemi (formerly Fairchild Semiconductor).
  10. What is the gate level of the FQP17P10?
    The gate level of the FQP17P10 is standard 40V.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:16.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:190mOhm @ 8.25A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:39 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:1100 pF @ 25 V
FET Feature:-
Power Dissipation (Max):100W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220-3
Package / Case:TO-220-3
0 Remaining View Similar

In Stock

$1.59
72

Please send RFQ , we will respond immediately.

Similar Products

Part Number FQP17P10 FQP12P10
Manufacturer onsemi onsemi
Product Status Active Obsolete
FET Type P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 100 V
Current - Continuous Drain (Id) @ 25°C 16.5A (Tc) 11.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V
Rds On (Max) @ Id, Vgs 190mOhm @ 8.25A, 10V 290mOhm @ 5.75A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 39 nC @ 10 V 27 nC @ 10 V
Vgs (Max) ±30V ±30V
Input Capacitance (Ciss) (Max) @ Vds 1100 pF @ 25 V 800 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 100W (Tc) 75W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Through Hole Through Hole
Supplier Device Package TO-220-3 TO-220-3
Package / Case TO-220-3 TO-220-3
