Overview

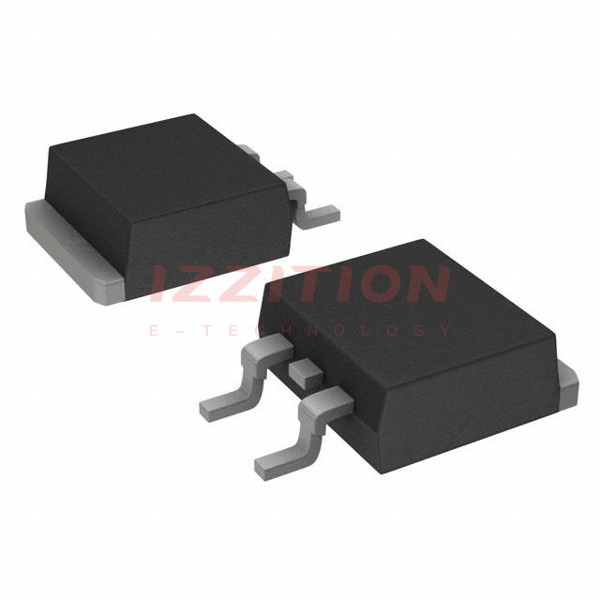

The FQB47P06TM-AM002 is a P-Channel Power MOSFET produced by onsemi. This device is designed for high-performance applications requiring low on-resistance and high current handling. It features a surface mount TO-263 (D2PAK) package, making it suitable for a variety of power management and switching applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Voltage Rating (Vds) | 60 | V |
| Continuous Drain Current (Id) | 47 | A |
| On-Resistance (Rds(on)) | 0.026 | Ω |
| Thermal Resistance, Junction to Case (RθJC) | 0.94 | °C/W |
| Package Type | TO-263 (D2PAK) | |
| Mounting Type | Surface Mount |
Key Features
- Low on-resistance of 0.026 Ω, reducing power losses and improving efficiency.
- High continuous drain current of 47 A, suitable for high-power applications.
- 60 V voltage rating, providing robust performance in various power management scenarios.
- Surface mount TO-263 (D2PAK) package, facilitating easy integration into modern PCB designs.
- Low thermal resistance, enhancing heat dissipation and reliability.
Applications
The FQB47P06TM-AM002 is versatile and can be used in a range of applications, including:
- Power supplies and DC-DC converters.
- Motor control and drive systems.
- Switching and power management in automotive and industrial systems.
- Battery management systems.
- High-power audio amplifiers.
Q & A
- What is the voltage rating of the FQB47P06TM-AM002?
The voltage rating of the FQB47P06TM-AM002 is 60 V. - What is the continuous drain current of the FQB47P06TM-AM002?
The continuous drain current is 47 A. - What is the on-resistance of the FQB47P06TM-AM002?
The on-resistance is 0.026 Ω. - What package type does the FQB47P06TM-AM002 use?
The FQB47P06TM-AM002 uses a TO-263 (D2PAK) package. - Is the FQB47P06TM-AM002 suitable for high-power applications?
Yes, it is suitable for high-power applications due to its high current and low on-resistance. - What is the thermal resistance, junction to case, of the FQB47P06TM-AM002?
The thermal resistance, junction to case, is 0.94 °C/W. - Can the FQB47P06TM-AM002 be used in automotive systems?
Yes, it can be used in automotive and industrial systems due to its robust performance characteristics. - Is the FQB47P06TM-AM002 a surface mount device?
Yes, it is a surface mount device. - What are some common applications of the FQB47P06TM-AM002?
Common applications include power supplies, motor control, switching and power management, battery management systems, and high-power audio amplifiers. - Where can I find detailed specifications for the FQB47P06TM-AM002?
Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Digi-Key and Farnell.
