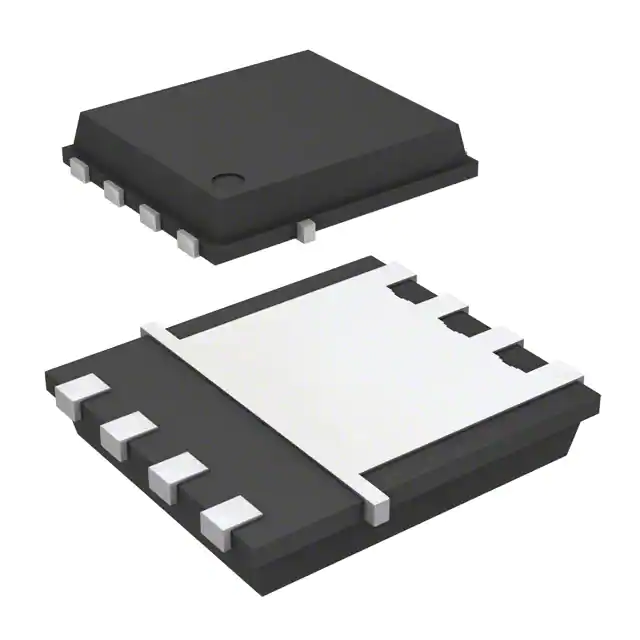

FDMC8327L
  • Share:

onsemi FDMC8327L

Manufacturer No:
FDMC8327L
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 12A/14A 8MLP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMC8327L is an N-Channel PowerTrench® MOSFET produced by onsemi. This device is designed using onsemi’s advanced PowerTrench process, which minimizes on-state resistance while maintaining superior switching performance. The FDMC8327L is suitable for high-power applications requiring low on-state resistance and fast switching times.

Key Specifications

Parameter Test Conditions Min Typ Max Unit
VDS (Drain to Source Voltage) ID = 250 μA, VGS = 0 V - - 40 V
VGS (Gate to Source Voltage) - - - ±20 V
ID (Drain Current) - - - 14 A
RDS(on) (Static Drain to Source On Resistance) VGS = 10 V, ID = 12 A - 7.4 9.7 mΩ
RDS(on) (Static Drain to Source On Resistance) VGS = 4.5 V, ID = 10 A - 9.4 12.5 mΩ
VGS(th) (Gate to Source Threshold Voltage) VGS = VDS, ID = 250 μA 1.0 1.7 3.0 V
Ciss (Input Capacitance) VDS = 20 V, VGS = 0 V, f = 1 MHz - - 1850 pF
Coss (Output Capacitance) - - - 520 pF
Crss (Reverse Transfer Capacitance) - - - 35 pF

Key Features

  • Max RDS(on) = 9.7 mΩ at VGS = 10 V, ID = 12 A
  • Max RDS(on) = 12.5 mΩ at VGS = 4.5 V, ID = 10 A
  • Low Profile - 0.8 mm max in Power 33 package
  • 100% UIL test
  • Pb-Free, Halide Free, and RoHS Compliant

Applications

The FDMC8327L is suitable for various high-power applications, including:

  • DC-DC Conversion
  • Power Management Systems
  • Motor Control and Drive Systems
  • High-Current Switching Applications

Q & A

  1. What is the maximum drain to source voltage (VDS) of the FDMC8327L?

    The maximum drain to source voltage (VDS) is 40 V.

  2. What is the maximum drain current (ID) of the FDMC8327L?

    The maximum drain current (ID) is 14 A.

  3. What is the typical on-state resistance (RDS(on)) at VGS = 10 V and ID = 12 A?

    The typical on-state resistance (RDS(on)) is 7.4 mΩ.

  4. Is the FDMC8327L RoHS compliant?
  5. What is the gate to source threshold voltage (VGS(th)) range?

    The gate to source threshold voltage (VGS(th)) range is from 1.0 V to 3.0 V.

  6. What is the input capacitance (Ciss) of the FDMC8327L?

    The input capacitance (Ciss) is up to 1850 pF.

  7. What are the typical applications of the FDMC8327L?

    The FDMC8327L is typically used in DC-DC conversion, power management systems, motor control and drive systems, and high-current switching applications.

  8. What is the package type of the FDMC8327L?

    The package type is WDFN8 3.3x3.3, 0.65P.

  9. What is the maximum junction temperature of the FDMC8327L?

    The maximum junction temperature is 150°C.

  10. Does the FDMC8327L undergo any specific testing?

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:12A (Ta), 14A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:9.7mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:26 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1850 pF @ 20 V
FET Feature:-
Power Dissipation (Max):2.3W (Ta), 30W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-MLP (3.3x3.3)
Package / Case:8-PowerWDFN
0 Remaining View Similar

In Stock

$1.50
223

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDMC8327L FDMC8321L
Manufacturer onsemi onsemi
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V 40 V
Current - Continuous Drain (Id) @ 25°C 12A (Ta), 14A (Tc) 22A (Ta), 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 9.7mOhm @ 12A, 10V 2.5mOhm @ 22A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 26 nC @ 10 V 61 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1850 pF @ 20 V 3900 pF @ 20 V
FET Feature - -
Power Dissipation (Max) 2.3W (Ta), 30W (Tc) 2.3W (Ta), 40W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package 8-MLP (3.3x3.3) Power33
Package / Case 8-PowerWDFN 8-PowerTDFN
