FDMC012N03
  • Share:

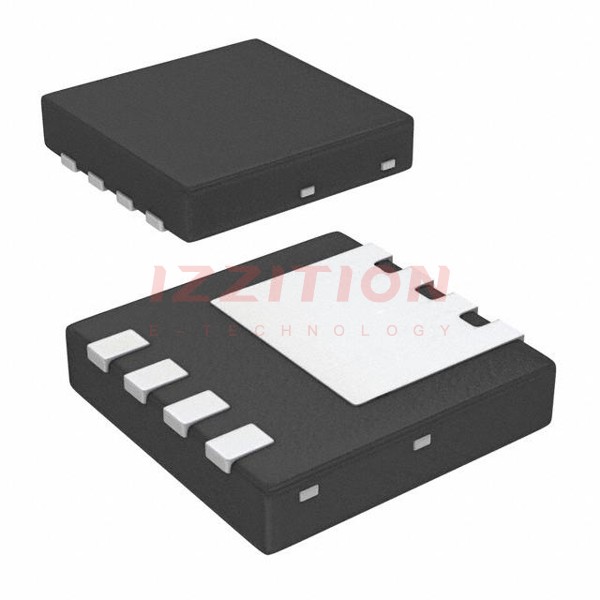

onsemi FDMC012N03

Manufacturer No:
FDMC012N03
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 30V 35A/185A POWER33
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMC012N03 is a low to medium voltage N-Channel MOSFET produced by onsemi. This device is designed to offer high performance and efficiency in various power management applications. It features a standard 40V gate level, making it suitable for a range of uses, particularly in motor driver applications. The MOSFET is known for its leading on-resistance, which enhances its overall performance and reliability.

Key Specifications

Parameter Value Unit
VDS (Drain-Source Voltage) 30 V
ID (Continuous Drain Current at Ta) 35 A
ID (Continuous Drain Current at Tc) 185 A
PD (Power Dissipation at Ta) 2.3 W
PD (Power Dissipation at Tc) 64 W
RDS(ON) (On-Resistance) 1.2 mΩ (typical at VGS = 10V) mΩ
VGS(th) (Threshold Voltage) 1.5 - 3.5 V

Key Features

The FDMC012N03 MOSFET boasts several key features that make it an excellent choice for various applications:

  • Low On-Resistance: With a typical on-resistance of 1.2 mΩ at VGS = 10V, this MOSFET minimizes power losses and enhances efficiency.
  • High Current Capability: It can handle continuous drain currents of up to 35A at ambient temperature and 185A at case temperature, making it suitable for high-power applications.
  • Standard 40V Gate Level: This feature ensures compatibility with a wide range of control circuits and simplifies the design process.
  • High Power Dissipation: The device can dissipate up to 2.3W at ambient temperature and 64W at case temperature, allowing for robust performance in demanding environments.

Applications

The FDMC012N03 MOSFET is particularly suited for:

  • Motor Driver Applications: Its high current capability and low on-resistance make it ideal for driving motors in various industrial and automotive applications.
  • Power Management Systems: It can be used in power supplies, DC-DC converters, and other power management circuits where high efficiency and reliability are crucial.
  • Automotive Systems: The MOSFET's robust performance and high power handling capabilities make it suitable for use in automotive systems, including electric vehicles and hybrid vehicles.

Q & A

  1. What is the maximum drain-source voltage of the FDMC012N03 MOSFET?

    The maximum drain-source voltage (VDS) is 30V.

  2. What is the typical on-resistance of the FDMC012N03 MOSFET?

    The typical on-resistance (RDS(ON)) is 1.2 mΩ at VGS = 10V.

  3. What are the continuous drain current ratings for the FDMC012N03 MOSFET?

    The continuous drain current is 35A at ambient temperature (Ta) and 185A at case temperature (Tc).

  4. What is the power dissipation capability of the FDMC012N03 MOSFET?

    The power dissipation is 2.3W at ambient temperature and 64W at case temperature.

  5. What is the threshold voltage range of the FDMC012N03 MOSFET?

    The threshold voltage (VGS(th)) range is 1.5 - 3.5V.

  6. What type of gate level does the FDMC012N03 MOSFET have?

    The FDMC012N03 has a standard 40V gate level.

  7. What are some common applications for the FDMC012N03 MOSFET?

    Common applications include motor driver applications, power management systems, and automotive systems.

  8. Where can I find the datasheet for the FDMC012N03 MOSFET?

    The datasheet can be found on the onsemi website, Mouser Electronics, or other authorized distributors.

  9. What is the significance of low on-resistance in the FDMC012N03 MOSFET?

    Low on-resistance minimizes power losses and enhances the overall efficiency of the device.

  10. Can the FDMC012N03 MOSFET be used in high-power applications?

    Yes, it can handle high currents and power dissipation, making it suitable for high-power applications.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:35A (Ta), 185A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.23mOhm @ 35A, 10V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:110 nC @ 10 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:8183 pF @ 15 V
FET Feature:-
Power Dissipation (Max):2.3W (Ta), 64W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:Power33
Package / Case:8-PowerWDFN
