FDBL9406-F085T6
  • Share:

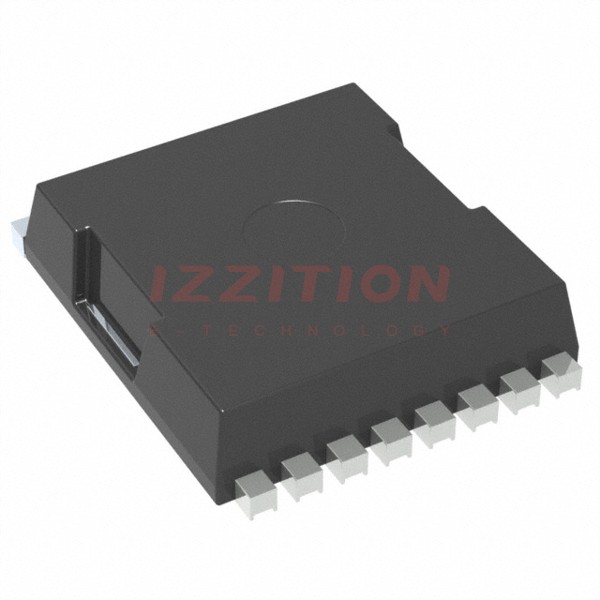

onsemi FDBL9406-F085T6

Manufacturer No:
FDBL9406-F085T6
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 45A/240A 8HPSOF
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDBL9406-F085T6 is a high-performance N-channel power MOSFET produced by onsemi. This device is designed to offer low on-resistance (RDS(on)) and minimal conduction losses, making it suitable for a variety of power management applications. The FDBL9406-F085T6 is AEC-Q101 qualified and PPAP capable, ensuring reliability and compliance with automotive standards.

Key Specifications

ParameterValueUnit
VDS (Drain-Source Voltage)40V
VGS (Gate-Source Voltage)±20V
RDS(on) (On-Resistance)8.5mΩ
ID (Continuous Drain Current)60A
IDM (Pulsed Drain Current)240A
PD (Power Dissipation)150W
TJ (Junction Temperature)-55 to 175°C

Key Features

  • Low RDS(on) to minimize conduction losses
  • Low QG and capacitance to minimize driver losses
  • Lowers switching noise/EMI
  • AEC-Q101 qualified and PPAP capable for automotive reliability
  • High current handling capability

Applications

The FDBL9406-F085T6 is suitable for various power management applications, including but not limited to:

  • Automotive systems (e.g., power steering, power windows, and fuel pumps)
  • Industrial power supplies and motor control
  • Consumer electronics (e.g., power adapters and battery chargers)
  • Renewable energy systems (e.g., solar and wind power)

Q & A

  1. What is the maximum drain-source voltage of the FDBL9406-F085T6?
    The maximum drain-source voltage (VDS) is 40 V.
  2. What is the on-resistance (RDS(on)) of this MOSFET?
    The on-resistance (RDS(on)) is 8.5 mΩ.
  3. Is the FDBL9406-F085T6 AEC-Q101 qualified?
    Yes, the FDBL9406-F085T6 is AEC-Q101 qualified.
  4. What is the continuous drain current (ID) of this device?
    The continuous drain current (ID) is 60 A.
  5. What are the typical applications for the FDBL9406-F085T6?
    Typical applications include automotive systems, industrial power supplies, consumer electronics, and renewable energy systems.
  6. What is the junction temperature range for the FDBL9406-F085T6?
    The junction temperature range is -55 to 175 °C.
  7. Does the FDBL9406-F085T6 have low switching noise/EMI?
    Yes, it is designed to lower switching noise/EMI.
  8. What is the pulsed drain current (IDM) of this MOSFET?
    The pulsed drain current (IDM) is 240 A.
  9. Is the FDBL9406-F085T6 PPAP capable?
    Yes, it is PPAP capable.
  10. What is the power dissipation (PD) of the FDBL9406-F085T6?
    The power dissipation (PD) is 150 W.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:45A (Ta), 240A (Tc)
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:1.21mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:3.5V @ 190µA
Gate Charge (Qg) (Max) @ Vgs:75 nC @ 10 V
Vgs (Max):+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds:4960 pF @ 25 V
FET Feature:-
Power Dissipation (Max):4.3W (Ta), 136.4W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-HPSOF
Package / Case:8-PowerSFN
0 Remaining View Similar

In Stock

$5.88
55

Please send RFQ , we will respond immediately.

Same Series
DD15S20L0S
DD15S20L0S
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LVL0/AA
DD15S20LVL0/AA
CONN D-SUB HD RCPT 15P SLDR CUP
RD15S10HV50/AA
RD15S10HV50/AA
CONN D-SUB RCPT 15POS CRIMP
DD26S2000X
DD26S2000X
CONN D-SUB HD RCPT 26P SLDR CUP
DD15S20JV3S
DD15S20JV3S
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S200T20/AA
DD26S200T20/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V30
DD26S200V30
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0V30
DD26S2S0V30
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S00X
DD44S32S00X
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S600X
DD44S32S600X
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S600X/AA
DD44S32S600X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
CBC47W1S1S50V5S
CBC47W1S1S50V5S
CONN D-SUB RCPT 47POS CRIMP

Similar Products

Part Number FDBL9406-F085T6 FDBL9401-F085T6 FDBL9403-F085T6
Manufacturer onsemi onsemi onsemi
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V 40 V 40 V
Current - Continuous Drain (Id) @ 25°C 45A (Ta), 240A (Tc) 58.4A (Ta), 240A (Tc) 50A (Ta), 300A (Tc)
Drive Voltage (Max Rds On, Min Rds On) - - -
Rds On (Max) @ Id, Vgs 1.21mOhm @ 50A, 10V 0.67mOhm @ 50A, 10V 0.95mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 3.5V @ 190µA 4V @ 290µA 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 75 nC @ 10 V 148 nC @ 10 V 108 nC @ 10 V
Vgs (Max) +20V, -16V +20V, -16V +20V, -16V
Input Capacitance (Ciss) (Max) @ Vds 4960 pF @ 25 V 10000 pF @ 25 V 6985 pF @ 25 V
FET Feature - - -
Power Dissipation (Max) 4.3W (Ta), 136.4W (Tc) 4.3W (Ta), 180.7W (Tc) 4.3W (Ta), 159.6W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package 8-HPSOF 8-HPSOF 8-HPSOF
Package / Case 8-PowerSFN 8-PowerSFN 8-PowerSFN
