Overview

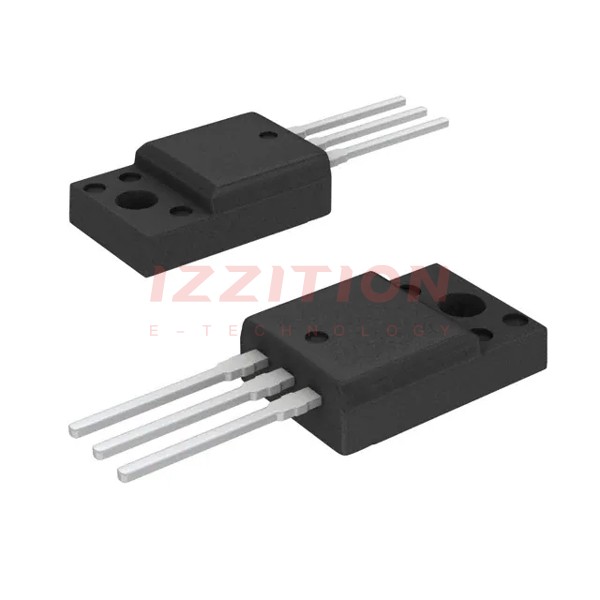

The FCPF400N80ZL1-F154 is a high-voltage N-Channel MOSFET from ON Semiconductor, part of their SUPERFET II family. This device utilizes charge balance technology to achieve outstanding low on-resistance and lower gate charge performance. It is designed to minimize conduction loss, provide superior switching performance, and handle high dv/dt rates and avalanche energy. The MOSFET is packaged in a TO-220FP (TO-220 Full Pack) and is suitable for various high-power applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Drain to Source Voltage (Vdss) | 800 | V |
| Maximum Continuous Drain Current (ID) | 11 | A (Tj) |
| Maximum Drain to Source Resistance (Rds(on)) | 400 mΩ @ 5.5A, 10V | mΩ |
| Gate to Source Threshold Voltage (Vgs(th)) | 4.5V @ 1.1mA | V |
| Maximum Gate to Source Voltage (Vgs) | ±20 | V |
| Input Capacitance (Ciss) | 2350 pF @ 100V | pF |
| Maximum Total Gate Charge (Qg) | 56 nC @ 10V | nC |
| Maximum Junction Temperature (Tj) | 150°C | °C |
| Maximum Power Dissipation (Pd) | 35.7W (Tc) | W |
| Package Type | TO-220FP | |
| Technology | MOSFET (Metal Oxide) |
Key Features
- Ultra-low on-resistance (Typ. Rds(on) = 340 mΩ)
- Ultra-low gate charge (Typ. Qg = 43 nC)
- Low effective output capacitance (Typ. Coss(eff.) = 138 pF)
- 100% avalanche tested
- Improved ESD capacity, withstanding over 2 kV HBM surge stress
- Pb-free and RoHS compliant
Applications
- AC-DC power supplies
- Laptop adapters
- LED lighting
- ATX power supplies
- Industrial power applications
- Audio power applications
Q & A
- What is the maximum drain to source voltage of the FCPF400N80ZL1-F154 MOSFET?
The maximum drain to source voltage is 800 V.
- What is the maximum continuous drain current of this MOSFET?
The maximum continuous drain current is 11 A (Tj).
- What is the typical on-resistance of the FCPF400N80ZL1-F154?
The typical on-resistance (Rds(on)) is 340 mΩ.
- What is the maximum gate to source voltage for this MOSFET?
The maximum gate to source voltage is ±20 V.
- What is the package type of the FCPF400N80ZL1-F154?
The package type is TO-220FP (TO-220 Full Pack).
- Is the FCPF400N80ZL1-F154 RoHS compliant?
- What are some typical applications for this MOSFET?
- What is the maximum junction temperature for this device?
- What is the maximum power dissipation of the FCPF400N80ZL1-F154?
- Does the FCPF400N80ZL1-F154 have any special ESD protection features?
