FCPF360N65S3R0L
  • Share:

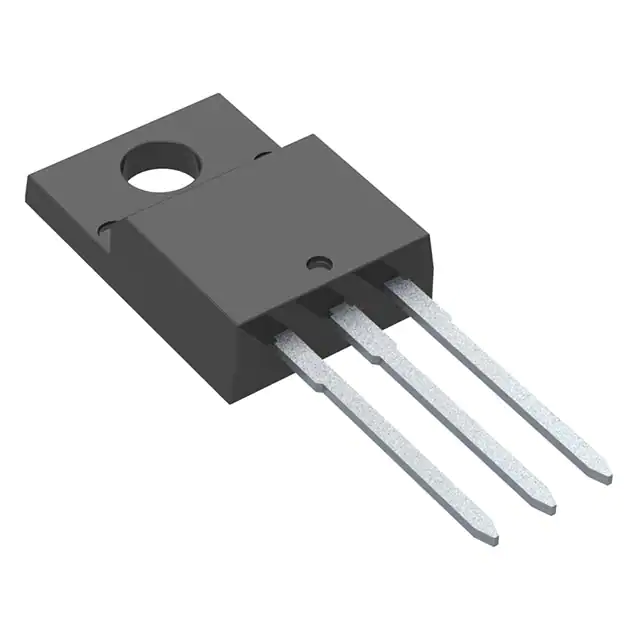

onsemi FCPF360N65S3R0L

Manufacturer No:
FCPF360N65S3R0L
Manufacturer:
onsemi
Package:
Bulk
Description:
MOSFET N-CH 650V 10A TO220F-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FCPF360N65S3R0L is a high-voltage, N-Channel MOSFET from onsemi's SUPERFET III family. This device is designed to offer high performance and reliability in various power management applications. It features advanced super-junction (SJ) technology, which enhances its efficiency and reduces losses. The MOSFET is packaged in a TO-220F Ultra narrow lead configuration, making it suitable for applications where space is a concern.

Key Specifications

ParameterValue
Voltage Rating (Vds)650 V
Current Rating (Id)10 A
On-Resistance (Rds(on))360 mΩ @ 10 V, 5 A
Threshold Voltage (Vth)4.5 V @ 1 mA
Package TypeTO-220F Ultra narrow lead
Channel TypeN-Channel

Key Features

  • Advanced super-junction (SJ) technology for improved efficiency and reduced losses.
  • High voltage rating of 650 V and current rating of 10 A.
  • Low on-resistance of 360 mΩ @ 10 V, 5 A.
  • Threshold voltage of 4.5 V @ 1 mA.
  • TO-220F Ultra narrow lead package for compact design.
  • Easy Drive technology for simplified gate drive requirements.

Applications

The FCPF360N65S3R0L is suitable for a variety of high-voltage applications, including:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Renewable energy systems, such as solar and wind power.
  • Industrial power management and control systems.
  • Automotive and electric vehicle systems.

Q & A

  1. What is the voltage rating of the FCPF360N65S3R0L MOSFET?
    The voltage rating of the FCPF360N65S3R0L MOSFET is 650 V.
  2. What is the current rating of the FCPF360N65S3R0L MOSFET?
    The current rating of the FCPF360N65S3R0L MOSFET is 10 A.
  3. What is the on-resistance of the FCPF360N65S3R0L MOSFET?
    The on-resistance of the FCPF360N65S3R0L MOSFET is 360 mΩ @ 10 V, 5 A.
  4. What is the package type of the FCPF360N65S3R0L MOSFET?
    The package type of the FCPF360N65S3R0L MOSFET is TO-220F Ultra narrow lead.
  5. What technology does the FCPF360N65S3R0L MOSFET use?
    The FCPF360N65S3R0L MOSFET uses advanced super-junction (SJ) technology.
  6. What is the threshold voltage of the FCPF360N65S3R0L MOSFET?
    The threshold voltage of the FCPF360N65S3R0L MOSFET is 4.5 V @ 1 mA.
  7. Is the FCPF360N65S3R0L MOSFET suitable for automotive applications?
    Yes, the FCPF360N65S3R0L MOSFET is suitable for automotive and electric vehicle systems.
  8. What are some common applications of the FCPF360N65S3R0L MOSFET?
    The FCPF360N65S3R0L MOSFET is commonly used in power supplies, DC-DC converters, motor control systems, renewable energy systems, and industrial power management.
  9. Does the FCPF360N65S3R0L MOSFET have any special drive requirements?
    No, the FCPF360N65S3R0L MOSFET features Easy Drive technology, which simplifies gate drive requirements.
  10. Is the FCPF360N65S3R0L MOSFET RoHS compliant?
    Yes, the FCPF360N65S3R0L MOSFET is RoHS compliant.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:10A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:360mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:18 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:730 pF @ 400 V
FET Feature:-
Power Dissipation (Max):27W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220F-3
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

-
98

Please send RFQ , we will respond immediately.
