FCH067N65S3-F155
  • Share:

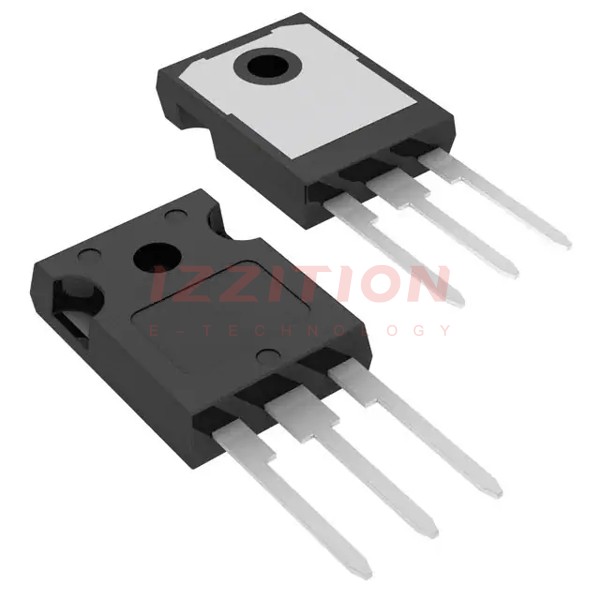

onsemi FCH067N65S3-F155

Manufacturer No:
FCH067N65S3-F155
Manufacturer:
onsemi
Package:
Tube
Description:
MOSFET N-CH 650V 44A TO247
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FCH067N65S3-F155 is a high-performance N-channel MOSFET produced by onsemi. This device is part of the SUPERFET III series, known for its robust and reliable operation in various power management applications. The MOSFET features a maximum drain-source voltage (Vds) of 650V and a maximum continuous drain current (Id) of 44A, making it suitable for high-power applications. The device is packaged in a TO-247-3 configuration, which is widely used in industrial and automotive systems due to its excellent thermal dissipation characteristics.

Key Specifications

ParameterValue
Channel TypeN-Channel
Maximum Continuous Drain Current (Id)44 A
Maximum Drain Source Voltage (Vds)650 V
On-Resistance (Rds(on)) at Vgs = 10V67 mΩ
Threshold Voltage (Vth)4.5 V @ 1 mA
Package TypeTO-247-3
Maximum Power Dissipation312 W
Maximum Drain Current (Idm)110 A

Key Features

  • High voltage and current handling capabilities, making it ideal for high-power applications.
  • Low on-resistance (Rds(on)) of 67 mΩ at Vgs = 10V, reducing power losses and improving efficiency.
  • Robust and reliable operation due to its SUPERFET III technology.
  • TO-247-3 package for excellent thermal dissipation and ease of mounting.
  • Compliant with RoHS standards, ensuring environmental sustainability.

Applications

The FCH067N65S3-F155 N-channel MOSFET is suitable for a variety of high-power applications, including:

  • Industrial power supplies and converters.
  • Automotive systems such as electric vehicles and hybrid vehicles.
  • Renewable energy systems, including solar and wind power inverters.
  • Motor control and drive systems.
  • High-frequency switching applications.

Q & A

  1. What is the maximum continuous drain current of the FCH067N65S3-F155 MOSFET?
    The maximum continuous drain current is 44 A.
  2. What is the maximum drain-source voltage of the FCH067N65S3-F155 MOSFET?
    The maximum drain-source voltage is 650 V.
  3. What is the on-resistance (Rds(on)) of the FCH067N65S3-F155 MOSFET at Vgs = 10V?
    The on-resistance is 67 mΩ at Vgs = 10V.
  4. What is the package type of the FCH067N65S3-F155 MOSFET?
    The package type is TO-247-3.
  5. Is the FCH067N65S3-F155 MOSFET RoHS compliant?
    Yes, the FCH067N65S3-F155 MOSFET is RoHS compliant.
  6. What are some typical applications of the FCH067N65S3-F155 MOSFET?
    Typical applications include industrial power supplies, automotive systems, renewable energy systems, motor control, and high-frequency switching applications.
  7. What is the maximum power dissipation of the FCH067N65S3-F155 MOSFET?
    The maximum power dissipation is 312 W.
  8. What is the threshold voltage (Vth) of the FCH067N65S3-F155 MOSFET?
    The threshold voltage is 4.5 V @ 1 mA.
  9. What is the maximum drain current (Idm) of the FCH067N65S3-F155 MOSFET?
    The maximum drain current is 110 A.
  10. Which technology does the FCH067N65S3-F155 MOSFET use?
    The FCH067N65S3-F155 MOSFET uses SUPERFET III technology.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:44A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:67mOhm @ 22A, 10V
Vgs(th) (Max) @ Id:4.5V @ 4.4mA
Gate Charge (Qg) (Max) @ Vgs:78 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:3090 pF @ 400 V
FET Feature:Super Junction
Power Dissipation (Max):312W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-247-3
Package / Case:TO-247-3
0 Remaining View Similar

In Stock

$6.60
143

Please send RFQ , we will respond immediately.
