Overview

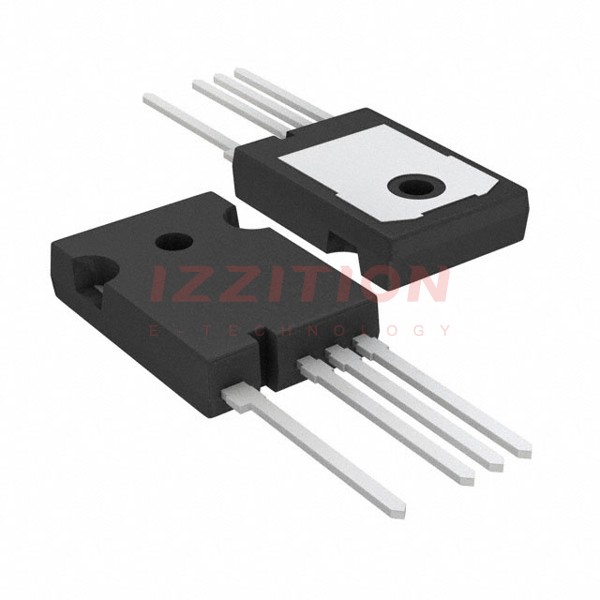

The FCH023N65S3L4 is a high-voltage N-Channel MOSFET from ON Semiconductor, part of their SUPERFET III family. This MOSFET utilizes charge balance technology, which enhances its performance by providing outstanding low on-resistance and high efficiency. It is designed for applications requiring high voltage and current handling capabilities.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (Vds) | 650 V |
| Current Rating (Id) | 75 A |
| On-Resistance (Rds(on)) | 23 mΩ |
| Package Type | TO-247 |
| Gate Threshold Voltage (Vgs(th)) | 2-4 V |
| Maximum Junction Temperature (Tj) | 150°C |
Key Features
- Utilizes charge balance technology for low on-resistance and high efficiency.
- High voltage rating of 650 V and high current rating of 75 A.
- Low on-resistance of 23 mΩ.
- TO-247 package for robust and reliable operation.
- Easy drive characteristics due to optimized gate charge.
Applications
- Solar Inverters
- Uninterruptible Power Supplies (UPS)
- Energy Storage Systems
- Power Factor Correction (PFC)
- Electric Vehicle Charging Stations
Q & A
- What is the voltage rating of the FCH023N65S3L4 MOSFET? The voltage rating is 650 V.
- What is the current rating of the FCH023N65S3L4 MOSFET? The current rating is 75 A.
- What is the on-resistance of the FCH023N65S3L4 MOSFET? The on-resistance is 23 mΩ.
- What package type is the FCH023N65S3L4 MOSFET available in? It is available in the TO-247 package.
- What is the gate threshold voltage of the FCH023N65S3L4 MOSFET? The gate threshold voltage is between 2-4 V.
- What are the typical applications of the FCH023N65S3L4 MOSFET? Typical applications include solar inverters, UPS, energy storage systems, PFC, and EV charging stations.
- What technology does the FCH023N65S3L4 MOSFET utilize? It utilizes charge balance technology.
- What is the maximum junction temperature of the FCH023N65S3L4 MOSFET? The maximum junction temperature is 150°C.
- Is the FCH023N65S3L4 MOSFET easy to drive? Yes, it has optimized gate charge for easy drive characteristics.
- Who is the manufacturer of the FCH023N65S3L4 MOSFET? The manufacturer is ON Semiconductor.
