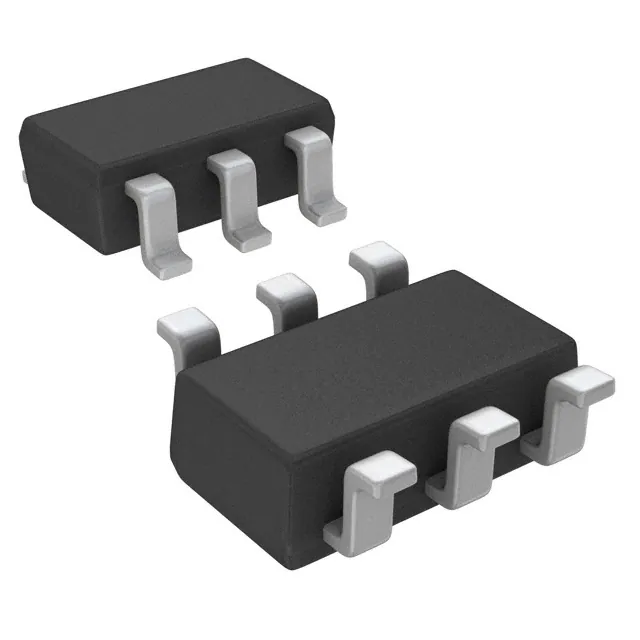

onsemi CPH6354-TL-W

Manufacturer No:
CPH6354-TL-W
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 60V 4A 6CPH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The CPH6354-TL-W is a P-Channel MOSFET produced by onsemi, designed for a variety of power management and switching applications. This device is known for its high performance and reliability, making it suitable for use in automotive, industrial, and consumer electronics. However, it is important to note that this component is scheduled for obsolescence and will be discontinued by the manufacturer.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)60 V
ID (Drain Current)4 A
RDS(ON) (On-Resistance)Typically 50 mΩ at VGS = -10 V
PD (Power Dissipation)1.6 W at Ta = 25°C
TJ (Junction Temperature)-55°C to 150°C
PackageTO-220F
Weight0.015 g

Key Features

  • High current capability up to 4 A
  • Low on-resistance (RDS(ON)) of typically 50 mΩ
  • High voltage rating of 60 V
  • TO-220F package for good heat dissipation
  • RoHS compliant

Applications

The CPH6354-TL-W is suitable for various applications including:

  • Automotive systems (e.g., power management, motor control)
  • Industrial power supplies and motor drives
  • Consumer electronics (e.g., power switching, voltage regulation)
  • General-purpose power switching and amplification

Q & A

  1. What is the maximum drain-source voltage (VDS) of the CPH6354-TL-W?
    The maximum drain-source voltage is 60 V.
  2. What is the typical on-resistance (RDS(ON)) of the CPH6354-TL-W?
    The typical on-resistance is 50 mΩ at VGS = -10 V.
  3. What is the maximum drain current (ID) of the CPH6354-TL-W?
    The maximum drain current is 4 A.
  4. What is the power dissipation (PD) of the CPH6354-TL-W at Ta = 25°C?
    The power dissipation is 1.6 W at Ta = 25°C.
  5. Is the CPH6354-TL-W RoHS compliant?
    Yes, the CPH6354-TL-W is RoHS compliant.
  6. What is the package type of the CPH6354-TL-W?
    The package type is TO-220F.
  7. What is the weight of the CPH6354-TL-W?
    The weight is 0.015 g.
  8. What is the junction temperature range of the CPH6354-TL-W?
    The junction temperature range is -55°C to 150°C.
  9. Is the CPH6354-TL-W scheduled for obsolescence?
    Yes, the CPH6354-TL-W is scheduled for obsolescence and will be discontinued by the manufacturer.
  10. Where can I find the datasheet for the CPH6354-TL-W?
    The datasheet can be found on the official onsemi website, as well as on distributor websites such as Mouser and Digi-Key.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4V, 10V
Rds On (Max) @ Id, Vgs:100mOhm @ 2A, 10V
Vgs(th) (Max) @ Id:2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:14 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:600 pF @ 20 V
FET Feature:-
Power Dissipation (Max):1.6W (Ta)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-CPH
Package / Case:SOT-23-6
0 Remaining View Similar

In Stock

-
475

Please send RFQ , we will respond immediately.

Same Series
CPH6354-TL-H
CPH6354-TL-H
MOSFET P-CH 60V 4A 6CPH

Similar Products

Part Number CPH6354-TL-W CPH6355-TL-W CPH6350-TL-W CPH6354-TL-H
Manufacturer onsemi onsemi onsemi onsemi
Product Status Obsolete Active Active Discontinued at Digi-Key
FET Type P-Channel P-Channel P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V 30 V 30 V 60 V
Current - Continuous Drain (Id) @ 25°C 4A (Ta) 3A (Ta) 6A (Ta) 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V 4V, 10V 4V, 10V 4V, 10V
Rds On (Max) @ Id, Vgs 100mOhm @ 2A, 10V 169mOhm @ 1.5A, 10V 43mOhm @ 3A, 10V 100mOhm @ 2A, 10V
Vgs(th) (Max) @ Id 2.6V @ 1mA 2.6V @ 1mA - -
Gate Charge (Qg) (Max) @ Vgs 14 nC @ 10 V 3.9 nC @ 10 V 13 nC @ 10 V 14 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 600 pF @ 20 V 172 pF @ 10 V 600 pF @ 10 V 600 pF @ 20 V
FET Feature - - - -
Power Dissipation (Max) 1.6W (Ta) 1.6W (Ta) 1.6W (Ta) 1.6W (Ta)
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package 6-CPH 6-CPH 6-CPH 6-CPH
Package / Case SOT-23-6 SOT-23-6 Thin, TSOT-23-6 SOT-23-6 SOT-23-6
