PMV22EN,215
  • Share:

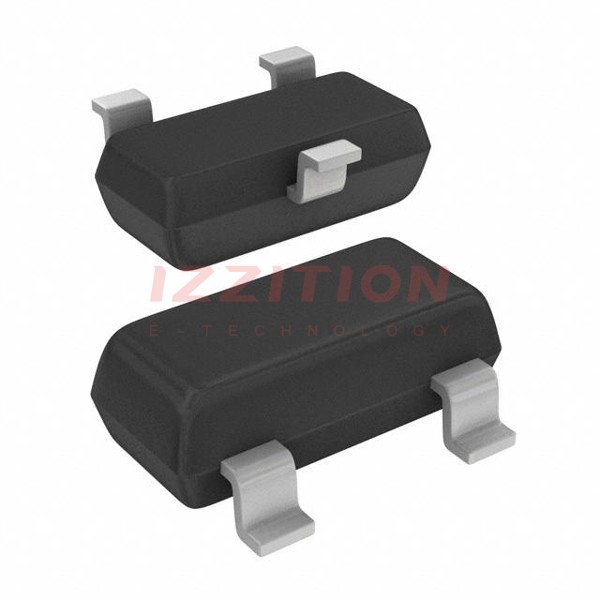

NXP USA Inc. PMV22EN,215

Manufacturer No:
PMV22EN,215
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 30V 5.2A TO236AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMV22EN,215 is an N-Channel MOSFET produced by NXP USA Inc. This component is part of NXP's discrete semiconductor product line and is designed for various electronic applications. Although the product is no longer in active manufacturing, it remains available through various distributors and inventory holders.

Key Specifications

ParameterValue
Voltage Rating (Vds)30V
Current Rating (Id)5.2A
Channel TypeN-Channel
PackagingTO-220

Key Features

  • N-Channel MOSFET with a voltage rating of 30V and current rating of 5.2A.
  • TO-220 packaging, suitable for a variety of applications requiring high power handling.
  • High efficiency and reliability, making it suitable for power management and switching applications.

Applications

The PMV22EN,215 MOSFET is versatile and can be used in several applications, including:

  • Power management systems
  • Switching circuits
  • Motor control systems
  • High-power electronic devices

Q & A

  1. What is the voltage rating of the PMV22EN,215 MOSFET?
    The voltage rating of the PMV22EN,215 MOSFET is 30V.
  2. What is the current rating of the PMV22EN,215 MOSFET?
    The current rating of the PMV22EN,215 MOSFET is 5.2A.
  3. What type of channel does the PMV22EN,215 MOSFET have?
    The PMV22EN,215 MOSFET is an N-Channel MOSFET.
  4. What is the packaging type of the PMV22EN,215 MOSFET?
    The PMV22EN,215 MOSFET comes in TO-220 packaging.
  5. Is the PMV22EN,215 MOSFET still in production?
    No, the PMV22EN,215 MOSFET is no longer in active manufacturing.
  6. Where can I purchase the PMV22EN,215 MOSFET?
    You can purchase the PMV22EN,215 MOSFET from various electronic component distributors and inventory holders.
  7. What are some common applications of the PMV22EN,215 MOSFET?
    Common applications include power management systems, switching circuits, motor control systems, and high-power electronic devices.
  8. What are the key features of the PMV22EN,215 MOSFET?
    The key features include high voltage and current ratings, high efficiency, and reliability in TO-220 packaging.
  9. Why is the PMV22EN,215 MOSFET suitable for high-power applications?
    The PMV22EN,215 MOSFET is suitable for high-power applications due to its high voltage and current ratings, along with its high efficiency and reliability.
  10. Can I use the PMV22EN,215 MOSFET in motor control systems?
    Yes, the PMV22EN,215 MOSFET can be used in motor control systems due to its high current and voltage handling capabilities.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:5.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:22mOhm @ 5.2A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:13 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:480 pF @ 15 V
FET Feature:-
Power Dissipation (Max):510mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23 (TO-236AB)
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

$0.12
6,970

Please send RFQ , we will respond immediately.
