PHT11N06LT,135
  • Share:

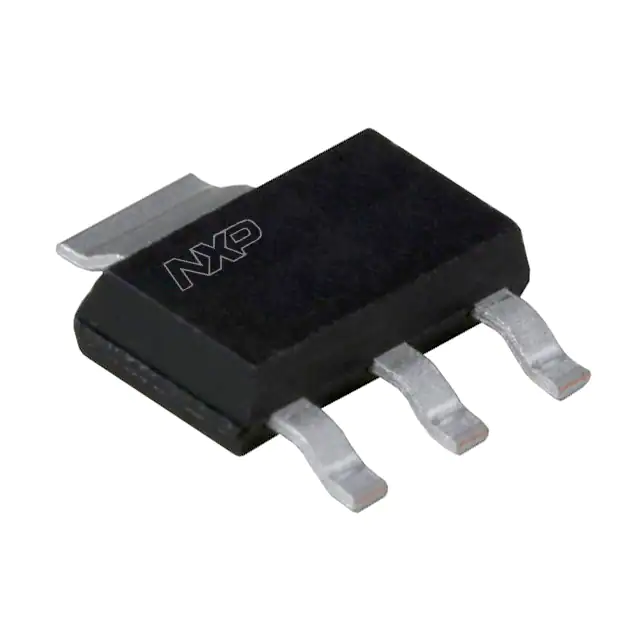

NXP USA Inc. PHT11N06LT,135

Manufacturer No:
PHT11N06LT,135
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 55V 4.9A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PHT11N06LT,135 is a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) produced by NXP USA Inc. This N-channel MOSFET is designed for high-performance applications requiring robust electrical characteristics. Although the component is currently obsolete and no longer manufactured, it remains relevant for understanding and replacing in existing designs.

Key Specifications

ParameterValue
Drain-Source Breakdown Voltage55V
Continuous Drain Current at 25°C4.9A
Package TypeSOT223
Channel TypeN-Channel

Key Features

  • High drain-source breakdown voltage of 55V, making it suitable for applications requiring high voltage handling.
  • Continuous drain current of 4.9A at 25°C, ensuring robust current handling capabilities.
  • SOT223 package, which is compact and suitable for surface mount technology (SMT) assembly.
  • N-Channel configuration, providing a wide range of application possibilities in power switching and amplification.

Applications

The PHT11N06LT,135 MOSFET is suitable for various high-power applications, including but not limited to:

  • Power switching and amplification in industrial and automotive systems.
  • DC-DC converters and power supplies.
  • Motor control and drive systems.
  • High-frequency switching applications.

Q & A

  1. What is the drain-source breakdown voltage of the PHT11N06LT,135?
    The drain-source breakdown voltage is 55V.
  2. What is the continuous drain current at 25°C for this MOSFET?
    The continuous drain current at 25°C is 4.9A.
  3. What package type does the PHT11N06LT,135 use?
    The package type is SOT223.
  4. Is the PHT11N06LT,135 still in production?
    No, the PHT11N06LT,135 is obsolete and no longer manufactured.
  5. What are some common applications for this MOSFET?
    Common applications include power switching, DC-DC converters, motor control, and high-frequency switching.
  6. What is the channel type of the PHT11N06LT,135?
    The channel type is N-Channel.
  7. Where can I find substitutes for the PHT11N06LT,135?
    You can find substitutes on distributors' websites such as Digi-Key, Mouser, and Octopart.
  8. What are the key features of the PHT11N06LT,135?
    Key features include high drain-source breakdown voltage, high continuous drain current, and a compact SOT223 package.
  9. Why is the SOT223 package important?
    The SOT223 package is important because it is compact and suitable for surface mount technology (SMT) assembly, making it ideal for modern electronic designs.
  10. Can I use the PHT11N06LT,135 in automotive systems?
    Yes, the PHT11N06LT,135 can be used in automotive systems due to its robust electrical characteristics.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):55 V
Current - Continuous Drain (Id) @ 25°C:4.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On):5V
Rds On (Max) @ Id, Vgs:40mOhm @ 5A, 5V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:17 nC @ 5 V
Vgs (Max):±13V
Input Capacitance (Ciss) (Max) @ Vds:1400 pF @ 25 V
FET Feature:-
Power Dissipation (Max):1.8W (Ta), 8.3W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SC-73
Package / Case:TO-261-4, TO-261AA
