PSMN7R0-30YL,115
  • Share:

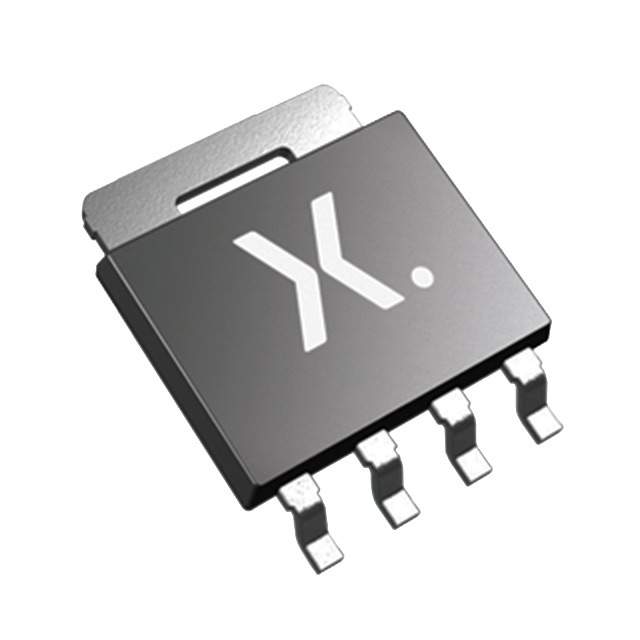

Nexperia USA Inc. PSMN7R0-30YL,115

Manufacturer No:
PSMN7R0-30YL,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 30V 76A LFPAK56
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PSMN7R0-30YL,115 is a logic level N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc. This MOSFET is designed using TrenchMOS technology and is packaged in the LFPAK56; Power-SO8 (SOT669) format. It is optimized for high efficiency and reliability, making it suitable for a wide range of applications across various industries.

Key Specifications

Parameter Value
Type Number PSMN7R0-30YL
Orderable Part Number PSMN7R0-30YL,115
Package LFPAK56; Power-SO8 (SOT669)
Channel Type N-Channel
VDS [max] 30 V
RDSon [max] @ VGS = 10 V 7 mΩ
RDSon [max] @ VGS = 4.5 V; @25°C 9.1 mΩ
Tj [max] 175°C
ID [max] 76 A
QGD [typ] 2.9 nC
QG(tot) [typ] @ VGS = 4.5 V 10 nC
QG(tot) [typ] @ VGS = 10 V 22 nC
Ptot [max] 51 W
Qr [typ] 22 nC
VGSth [typ] 1.7 V
Ciss [typ] 1270 pF
Coss [typ] 255 pF

Key Features

  • Logic Level Operation: The MOSFET operates with a logic level gate voltage, making it compatible with low-voltage control signals.
  • Low On-Resistance: With an RDSon of 7 mΩ at VGS = 10 V, this MOSFET offers low on-resistance, reducing power losses and improving efficiency.
  • High Current Capability: The device can handle a maximum continuous drain current of 76 A, making it suitable for high-power applications.
  • Compact Packaging: The LFPAK56; Power-SO8 (SOT669) package is designed for space-saving and thermal efficiency.
  • High Junction Temperature: The MOSFET can operate up to a junction temperature of 175°C, enhancing its reliability in demanding environments.

Applications

  • Automotive Systems: Suitable for various automotive applications due to its high reliability and efficiency.
  • Industrial Control: Used in industrial control systems, motor control, and power management.
  • Power Supplies: Ideal for use in switch-mode power supplies, DC-DC converters, and other power management circuits.
  • Consumer Electronics: Found in consumer electronics such as mobile devices, wearables, and computing equipment.
  • Renewable Energy Systems: Used in solar and wind power systems for efficient power conversion.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the PSMN7R0-30YL,115?

    The maximum drain-source voltage (VDS) is 30 V.

  2. What is the on-resistance (RDSon) at VGS = 10 V?

    The on-resistance (RDSon) at VGS = 10 V is 7 mΩ.

  3. What is the maximum continuous drain current (ID)?

    The maximum continuous drain current (ID) is 76 A.

  4. What is the package type of the PSMN7R0-30YL,115?

    The package type is LFPAK56; Power-SO8 (SOT669).

  5. What is the maximum junction temperature (Tj)?

    The maximum junction temperature (Tj) is 175°C.

  6. Is the PSMN7R0-30YL,115 RoHS compliant?

    Yes, the PSMN7R0-30YL,115 is RoHS compliant.

  7. What are the typical gate-source threshold voltage (VGSth) and gate-drain charge (QGD)?

    The typical gate-source threshold voltage (VGSth) is 1.7 V, and the typical gate-drain charge (QGD) is 2.9 nC.

  8. What are some common applications of the PSMN7R0-30YL,115?

    Common applications include automotive systems, industrial control, power supplies, consumer electronics, and renewable energy systems.

  9. How does the PSMN7R0-30YL,115 contribute to energy efficiency in designs?

    The PSMN7R0-30YL,115 contributes to energy efficiency through its low on-resistance, high current capability, and compact packaging, which reduce power losses and improve overall system efficiency.

  10. Where can I find detailed datasheets and models for the PSMN7R0-30YL,115?

    Detailed datasheets, SPICE models, and thermal models can be found on the Nexperia website and through authorized distributors.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:76A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:7mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:22 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1270 pF @ 12 V
FET Feature:-
Power Dissipation (Max):51W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK56, Power-SO8
Package / Case:SC-100, SOT-669
0 Remaining View Similar

In Stock

$0.98
503

Please send RFQ , we will respond immediately.

Similar Products

Part Number PSMN7R0-30YL,115 PSMN7R0-30YLC,115 PSMN9R0-30YL,115 PSMN8R0-30YL,115 PSMN4R0-30YL,115 PSMN5R0-30YL,115 PSMN6R0-30YL,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc. NXP USA Inc. NXP USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Obsolete Obsolete Active Active Active
FET Type N-Channel N-Channel N-Channel N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V 30 V 30 V 30 V 30 V 30 V 30 V
Current - Continuous Drain (Id) @ 25°C 76A (Tc) 61A (Tc) 61A (Tc) 62A (Tc) 100A (Tc) 91A (Tc) 79A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V 4.5V, 10V 4.5V, 10V 4.5V, 10V 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 7mOhm @ 15A, 10V 7.1mOhm @ 20A, 10V 8mOhm @ 15A, 10V 8.3mOhm @ 15A, 10V 4mOhm @ 15A, 10V 5mOhm @ 15A, 10V 6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id 2.15V @ 1mA 1.95V @ 1mA 2.15V @ 1mA 2.15V @ 1mA 2.15V @ 1mA 2.15V @ 1mA 2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 22 nC @ 10 V 16 nC @ 10 V 17.8 nC @ 10 V 18.3 nC @ 10 V 36.6 nC @ 10 V 29 nC @ 10 V 24 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V ±20V ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1270 pF @ 12 V 1057 pF @ 15 V 1006 pF @ 12 V 1005 pF @ 15 V 2090 pF @ 12 V 1760 pF @ 12 V 1425 pF @ 12 V
FET Feature - - - - - - -
Power Dissipation (Max) 51W (Tc) 48W (Tc) 46W (Tc) 56W (Tc) 69W (Tc) 61W (Tc) 55W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package LFPAK56, Power-SO8 LFPAK56, Power-SO8 LFPAK56, Power-SO8 LFPAK56, Power-SO8 LFPAK56, Power-SO8 LFPAK56, Power-SO8 LFPAK56, Power-SO8
Package / Case SC-100, SOT-669 SC-100, SOT-669 SC-100, SOT-669 SC-100, SOT-669 SC-100, SOT-669 SC-100, SOT-669 SC-100, SOT-669
