Overview

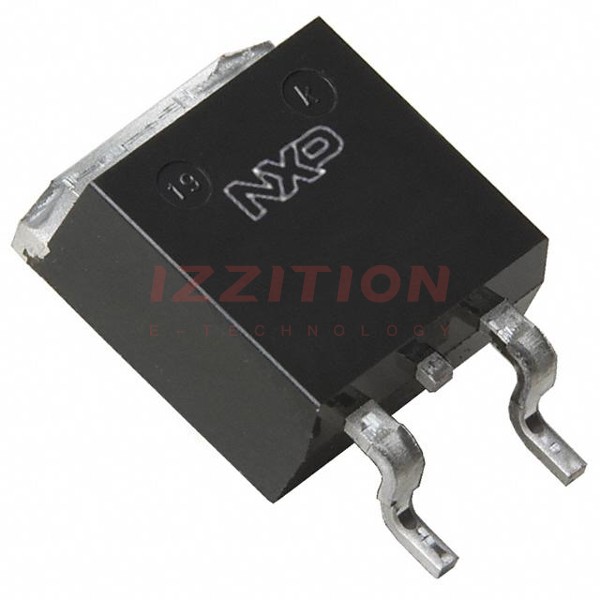

The PSMN015-60BS,118 is a high-performance N-channel MOSFET produced by Nexperia USA Inc. This device is designed to offer superior power handling and efficiency, making it suitable for a wide range of industrial and power applications. The MOSFET features a standard level gate and is packaged in a D2PAK (TO-263) surface mount configuration, which is ROHS compliant.
Key Specifications
| Parameter | Value |
|---|---|
| Channel Type | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 60 V |
| Continuous Drain Current (ID) | 50 A |
| On-State Resistance (Rds(on)) | 14.8 mΩ @ 10 V |
| Avalanche Energy Rating (Eas) | 44 mJ |
| Turn-Off Delay Time | 27 ns |
| Turn-On Delay Time | 12 ns |
| Package Type | D2PAK (TO-263) |
| Power Dissipation (Pd) | 86 W |
Key Features
- High continuous drain current of 50 A, making it suitable for high-power applications.
- Low on-state resistance of 14.8 mΩ, reducing power losses and improving efficiency.
- Avalanche energy rating of 44 mJ, enhancing reliability under transient conditions.
- Fast switching times with a turn-off delay of 27 ns and turn-on delay of 12 ns.
- ROHS compliant and packaged in a D2PAK (TO-263) surface mount configuration for easy integration.
Applications
- Lighting systems
- Uninterruptible Power Supplies (UPS)
- AC-DC Power Supplies
- Synchronous Rectification for ATX, server, and telecom power supplies
- Motor drives and power tools
- Micro Solar Inverters
- DC/DC converters
Q & A
- What is the drain-source breakdown voltage of the PSMN015-60BS,118 MOSFET?
The drain-source breakdown voltage is 60 V. - What is the continuous drain current rating of this MOSFET?
The continuous drain current rating is 50 A. - What is the on-state resistance of the PSMN015-60BS,118?
The on-state resistance is 14.8 mΩ at 10 V. - What is the avalanche energy rating of this MOSFET?
The avalanche energy rating is 44 mJ. - What is the turn-off delay time of the PSMN015-60BS,118?
The turn-off delay time is 27 ns. - What package type is used for the PSMN015-60BS,118?
The package type is D2PAK (TO-263). - Is the PSMN015-60BS,118 ROHS compliant?
Yes, it is ROHS compliant. - What are some common applications of the PSMN015-60BS,118 MOSFET?
Common applications include lighting systems, UPS, AC-DC power supplies, synchronous rectification, motor drives, and DC/DC converters. - What is the power dissipation rating of the PSMN015-60BS,118?
The power dissipation rating is 86 W. - What is the significance of the low on-state resistance in this MOSFET?
The low on-state resistance reduces power losses and improves the overall efficiency of the system.
