BUK9Y30-75B/C2,115
  • Share:

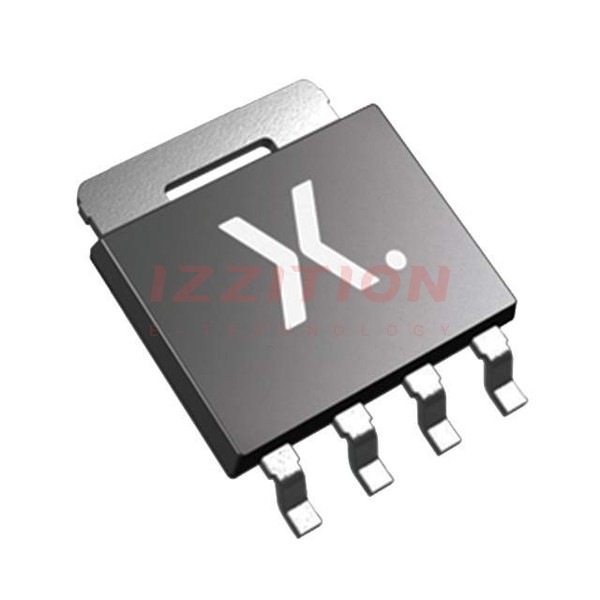

Nexperia USA Inc. BUK9Y30-75B/C2,115

Manufacturer No:
BUK9Y30-75B/C2,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 75V 34A LFPAK56
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK9Y30-75B,115 is a high-performance N-channel MOSFET designed by Nexperia USA Inc. This device is part of the TrenchMOS™ series and is specifically tailored for automotive and industrial applications. It is packaged in the LFPAK56 and Power-SO8 formats, ensuring robust and reliable performance across a wide range of operating conditions.

Key Specifications

ParameterValue
Drain to Source Voltage (Vdss)75V
Maximum Gate-Source Voltage (Vgs(max))±15V
On-Resistance (Rds(on))28mΩ @ 15A, 10V
Continuous Drain Current (Id)34A @ 25°C
Input Capacitance (Ciss)2070pF @ 25V
Power Dissipation (Ptot)85W @ Tc

Key Features

  • High avalanche capability
  • Low on-resistance for high efficiency
  • Low gate charge for fast switching
  • Qualified according to AEC-Q101 for automotive applications
  • Operates across a wide temperature range (-55°C to 175°C)
  • Robust and reliable design
  • Excellent thermal performance and high power density
  • Optimized for fast switching

Applications

  • Automotive electronics
  • Industrial motor drives
  • Switched-mode power supplies
  • Power tools and home appliances

Q & A

  1. What is the maximum drain to source voltage of the BUK9Y30-75B,115 MOSFET?
    The maximum drain to source voltage is 75V.
  2. What is the on-resistance of the BUK9Y30-75B,115 MOSFET?
    The on-resistance is 28mΩ @ 15A, 10V.
  3. What is the continuous drain current of the BUK9Y30-75B,115 MOSFET at 25°C?
    The continuous drain current is 34A @ 25°C.
  4. Is the BUK9Y30-75B,115 MOSFET qualified for automotive applications?
    Yes, it is qualified according to AEC-Q101 for automotive applications.
  5. What is the operating temperature range of the BUK9Y30-75B,115 MOSFET?
    The operating temperature range is -55°C to 175°C.
  6. What are the key features of the BUK9Y30-75B,115 MOSFET?
    Key features include high avalanche capability, low on-resistance, low gate charge, and excellent thermal performance.
  7. What are some common applications of the BUK9Y30-75B,115 MOSFET?
    Common applications include automotive electronics, industrial motor drives, switched-mode power supplies, and power tools and home appliances.
  8. Is the BUK9Y30-75B,115 MOSFET RoHS3 compliant?
    Yes, it is RoHS3 compliant.
  9. What package types are available for the BUK9Y30-75B,115 MOSFET?
    The MOSFET is available in LFPAK56 and Power-SO8 packages.
  10. Is the BUK9Y30-75B,115 MOSFET optimized for fast switching?
    Yes, it is optimized for fast switching.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):75 V
Current - Continuous Drain (Id) @ 25°C:34A
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:28mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:19 nC @ 5 V
Vgs (Max):-
Input Capacitance (Ciss) (Max) @ Vds:2070 pF @ 25 V
FET Feature:-
Power Dissipation (Max):-
Operating Temperature:-
Mounting Type:Surface Mount
Supplier Device Package:LFPAK56, Power-SO8
Package / Case:SC-100, SOT-669
0 Remaining View Similar

In Stock

-
292

Please send RFQ , we will respond immediately.
