BUK9Y12-40E,115
  • Share:

Nexperia USA Inc. BUK9Y12-40E,115

Manufacturer No:
BUK9Y12-40E,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 52A LFPAK56
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK9Y12-40E,115 is a high-performance N-channel MOSFET produced by Nexperia USA Inc. This device is part of Nexperia's TrenchMOS technology family and is designed and qualified to the AEC-Q101 standard, making it suitable for automotive and other demanding applications.

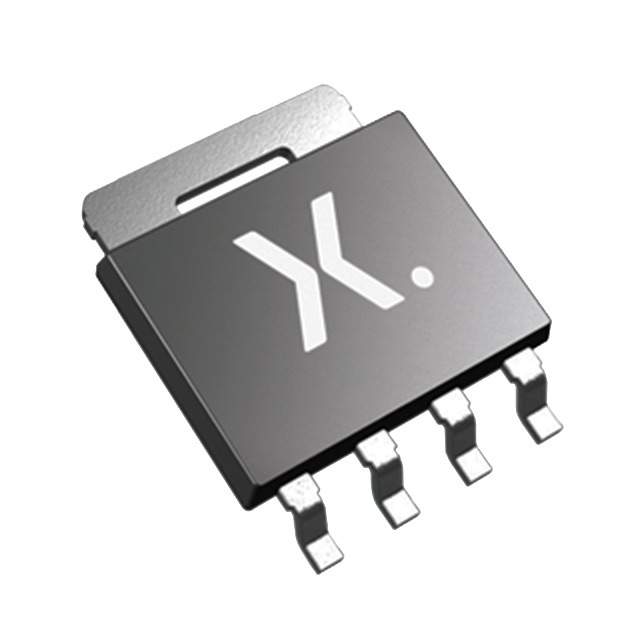

The MOSFET is housed in the LFPAK56 (Power-SO8) package, which offers excellent thermal performance and a compact footprint. This makes it ideal for a wide range of applications where high power density and reliability are crucial.

Key Specifications

Parameter Conditions Min. Typ. Max. Unit
VDS (Drain-Source Voltage) Tj ≥ 25 °C; Tj ≤ 175 °C 40 V
RDSon (On-State Resistance) @ VGS = 10 V 10 mΩ
RDSon (On-State Resistance) @ VGS = 5 V 12 mΩ
Tj (Junction Temperature) 175 °C
ID (Continuous Drain Current) @ 25 °C 52 A
QGD (Gate Drain Charge) @ VGS = 5 V 3.4 nC
Ptot (Total Power Dissipation) @ Tc 65 W
VGSth (Threshold Voltage) @ Id = 1 mA 1.7 V
Ciss (Input Capacitance) @ Vds = 25 V 1067 pF

Key Features

  • TrenchMOS Technology: Utilizes advanced TrenchMOS technology for high efficiency and low on-state resistance.
  • AEC-Q101 Qualified: Designed and qualified to the AEC-Q101 standard, ensuring reliability and performance in automotive and other demanding applications.
  • LFPAK56 (Power-SO8) Package: Compact package with excellent thermal performance, suitable for high power density applications.
  • Low On-State Resistance: RDSon of 10 mΩ at VGS = 10 V and 12 mΩ at VGS = 5 V, reducing power losses and improving overall efficiency.
  • High Continuous Drain Current: Capable of handling up to 52 A of continuous drain current at 25 °C.
  • Wide Operating Temperature Range: Junction temperature range from -55 °C to 175 °C, making it suitable for a variety of environmental conditions.

Applications

  • Automotive Systems: Ideal for use in automotive systems such as power steering, braking, and engine management due to its AEC-Q101 qualification.
  • Industrial Power Systems: Suitable for industrial power systems, including motor control, power supplies, and DC-DC converters.
  • Consumer Electronics: Used in consumer electronics for applications requiring high power density and efficiency, such as power adapters and battery chargers.
  • Power Management: Effective in power management circuits, including voltage regulators and switch-mode power supplies.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the BUK9Y12-40E,115 MOSFET?

    The maximum drain-source voltage (VDS) is 40 V.

  2. What is the on-state resistance (RDSon) at VGS = 5 V?

    The on-state resistance (RDSon) at VGS = 5 V is 12 mΩ.

  3. What is the maximum junction temperature (Tj) of the BUK9Y12-40E,115?

    The maximum junction temperature (Tj) is 175 °C.

  4. What is the continuous drain current (ID) rating at 25 °C?

    The continuous drain current (ID) rating at 25 °C is 52 A.

  5. Is the BUK9Y12-40E,115 qualified to any automotive standards?

    Yes, it is qualified to the AEC-Q101 standard.

  6. What package type is the BUK9Y12-40E,115 available in?

    The BUK9Y12-40E,115 is available in the LFPAK56 (Power-SO8) package.

  7. What is the typical gate-source threshold voltage (VGSth)?

    The typical gate-source threshold voltage (VGSth) is 1.7 V.

  8. What is the maximum total power dissipation (Ptot)?

    The maximum total power dissipation (Ptot) is 65 W.

  9. What are some common applications for the BUK9Y12-40E,115 MOSFET?

    Common applications include automotive systems, industrial power systems, consumer electronics, and power management circuits.

  10. Where can I find detailed datasheets and technical support for the BUK9Y12-40E,115?

    Detailed datasheets and technical support can be found on the Nexperia website or through authorized distributors.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:52A (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V
Rds On (Max) @ Id, Vgs:10mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:9.8 nC @ 5 V
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:1423 pF @ 25 V
FET Feature:-
Power Dissipation (Max):65W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK56, Power-SO8
Package / Case:SC-100, SOT-669
0 Remaining View Similar

In Stock

$0.94
666

Please send RFQ , we will respond immediately.
