Overview

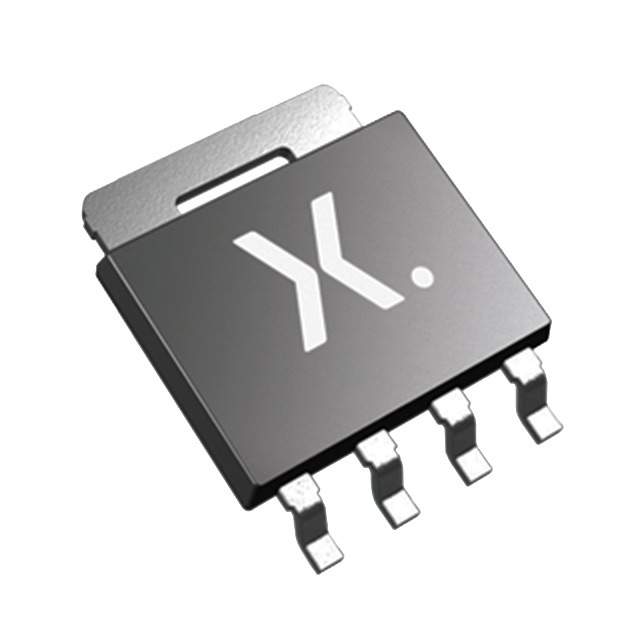

The BUK9Y104-100B,115 is a high-performance N-channel MOSFET produced by Nexperia USA Inc. This device is part of Nexperia's TrenchMOS™ series and is specifically designed for automotive applications, adhering to the AEC-Q101 standard. It is known for its robust performance in thermally demanding environments, with an operating temperature range of -55°C to 175°C.
This MOSFET features a drain to source voltage (Vdss) of 100V and a continuous drain current (Id) of 14.8A at 25°C. The device is packaged in the LFPAK56 (Power-SO8) package, which is optimized for surface mount applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Part Number | BUK9Y104-100B,115 | |
| Manufacturer | Nexperia | |
| Description | MOSFET N-CH 100V 14.8A LFPAK | |
| Vgs(th) (Max) @ Id | 2.15V @ 1mA | |
| Vgs (Max) | ±15V | |
| Technology | MOSFET (Metal Oxide) | |
| Supplier Device Package | LFPAK56, Power-SO8 | |
| Series | Automotive, AEC-Q101, TrenchMOS™ | |
| Rds On (Max) @ Id, Vgs | 99 mOhm @ 5A, 10V | |
| Power Dissipation (Max) | 59W (Tc) | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Input Capacitance (Ciss) (Max) @ Vds | 1139pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 5V | |
| FET Type | N-Channel | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 14.8A (Tc) |
Key Features
- High Performance: The BUK9Y104-100B,115 offers high current handling of up to 14.8A and low on-resistance (Rds On) of 99 mOhm at 5A and 10V.
- Automotive Grade: Compliant with AEC-Q101 standards, making it suitable for demanding automotive applications.
- Thermal Robustness: Operates in a wide temperature range from -55°C to 175°C, ensuring reliability in harsh environments.
- Surface Mount Package: Packaged in LFPAK56 (Power-SO8), which is optimized for surface mount applications and provides good thermal performance.
- Lead-Free and RoHS Compliant: Ensures compliance with environmental regulations, making it a sustainable choice.
Applications
- Automotive Systems: Suitable for various automotive applications such as power management, motor control, and battery management systems.
- Industrial Power Systems: Can be used in industrial power supplies, motor drives, and other high-power applications requiring robust and reliable MOSFETs.
- Thermally Demanding Environments: Ideal for use in environments where high thermal performance is critical.
Q & A
- What is the maximum drain to source voltage (Vdss) of the BUK9Y104-100B,115?
The maximum drain to source voltage (Vdss) is 100V.
- What is the continuous drain current (Id) at 25°C for this MOSFET?
The continuous drain current (Id) at 25°C is 14.8A.
- What is the operating temperature range of the BUK9Y104-100B,115?
The operating temperature range is from -55°C to 175°C.
- Is the BUK9Y104-100B,115 compliant with automotive standards?
Yes, it is compliant with AEC-Q101 standards.
- What package type is used for the BUK9Y104-100B,115?
The device is packaged in LFPAK56 (Power-SO8).
- What is the maximum power dissipation (Pd) for this MOSFET?
The maximum power dissipation (Pd) is 59W (Tc).
- Is the BUK9Y104-100B,115 lead-free and RoHS compliant?
Yes, it is lead-free and RoHS compliant.
- What is the typical on-resistance (Rds On) of the BUK9Y104-100B,115?
The typical on-resistance (Rds On) is 99 mOhm at 5A and 10V.
- What is the input capacitance (Ciss) of the BUK9Y104-100B,115?
The input capacitance (Ciss) is 1139pF at 25V.
- What is the gate charge (Qg) of the BUK9Y104-100B,115?
The gate charge (Qg) is 11nC at 5V.
