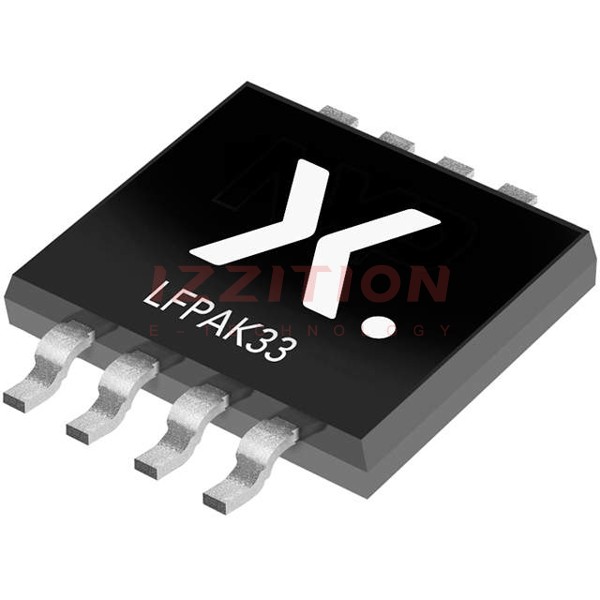

Nexperia USA Inc. BUK7M17-80EX

Manufacturer No:
BUK7M17-80EX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 80V 43A LFPAK33
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK7M17-80EX is a high-performance N-Channel MOSFET manufactured by Nexperia USA Inc. This device is designed to operate in thermally demanding environments, making it suitable for automotive and other high-reliability applications. With an operating temperature rating of up to +175°C, it is ideal for use in hostile operating conditions beyond those encountered in home and portable applications.

Key Specifications

ParameterValue
Voltage Rating (Vds)80 V
Continuous Drain Current (Id)43 A (Tc)
Power Dissipation (Pd)79 W (Tc)
On-State Resistance (Rds(on))17 mΩ @ 10 V, 10 A
Threshold Voltage (Vth)4 V @ 1 mA
Package TypeLFPAK33, Surface Mount
Operating Temperature Range-55°C to +175°C

Key Features

  • High current capability of 43 A (Tc)
  • Low on-state resistance of 17 mΩ @ 10 V, 10 A
  • High power dissipation of 79 W (Tc)
  • Operating temperature range of -55°C to +175°C
  • Surface mount LFPAK33 package for efficient thermal management
  • RoHS compliant

Applications

  • Automotive systems requiring high reliability and thermal performance
  • Power management in industrial and commercial applications
  • High-power switching and motor control systems
  • Thermally demanding environments such as in electric vehicles and renewable energy systems

Q & A

  1. What is the voltage rating of the BUK7M17-80EX MOSFET?
    The voltage rating of the BUK7M17-80EX MOSFET is 80 V.
  2. What is the continuous drain current of the BUK7M17-80EX?
    The continuous drain current of the BUK7M17-80EX is 43 A (Tc).
  3. What is the on-state resistance of the BUK7M17-80EX?
    The on-state resistance of the BUK7M17-80EX is 17 mΩ @ 10 V, 10 A.
  4. What is the operating temperature range of the BUK7M17-80EX?
    The operating temperature range of the BUK7M17-80EX is -55°C to +175°C.
  5. What package type does the BUK7M17-80EX use?
    The BUK7M17-80EX uses the LFPAK33 surface mount package.
  6. Is the BUK7M17-80EX RoHS compliant?
    Yes, the BUK7M17-80EX is RoHS compliant.
  7. What are some typical applications for the BUK7M17-80EX?
    The BUK7M17-80EX is typically used in automotive systems, power management in industrial and commercial applications, high-power switching, and motor control systems.
  8. Why is the BUK7M17-80EX suitable for automotive applications?
    The BUK7M17-80EX is suitable for automotive applications due to its high reliability, thermal performance, and ability to operate in hostile environments.
  9. What is the power dissipation of the BUK7M17-80EX?
    The power dissipation of the BUK7M17-80EX is 79 W (Tc).
  10. Where can I find detailed specifications for the BUK7M17-80EX?
    Detailed specifications for the BUK7M17-80EX can be found on the datasheet available from sources like Mouser, Digi-Key, and the Nexperia website.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):80 V
Current - Continuous Drain (Id) @ 25°C:43A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:17mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:29.6 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2031 pF @ 25 V
FET Feature:-
Power Dissipation (Max):79W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK33
Package / Case:SOT-1210, 8-LFPAK33 (5-Lead)
0 Remaining View Similar

In Stock

$1.03
543

Please send RFQ , we will respond immediately.

Similar Products

Part Number BUK7M17-80EX BUK7M27-80EX
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 80 V 80 V
Current - Continuous Drain (Id) @ 25°C 43A (Tc) 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V
Rds On (Max) @ Id, Vgs 17mOhm @ 10A, 10V 27mOhm @ 5A, 10V
Vgs(th) (Max) @ Id 4V @ 1mA 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 29.6 nC @ 10 V 19.5 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 2031 pF @ 25 V 1306 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 79W (Tc) 62W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package LFPAK33 LFPAK33
Package / Case SOT-1210, 8-LFPAK33 (5-Lead) SOT-1210, 8-LFPAK33 (5-Lead)
