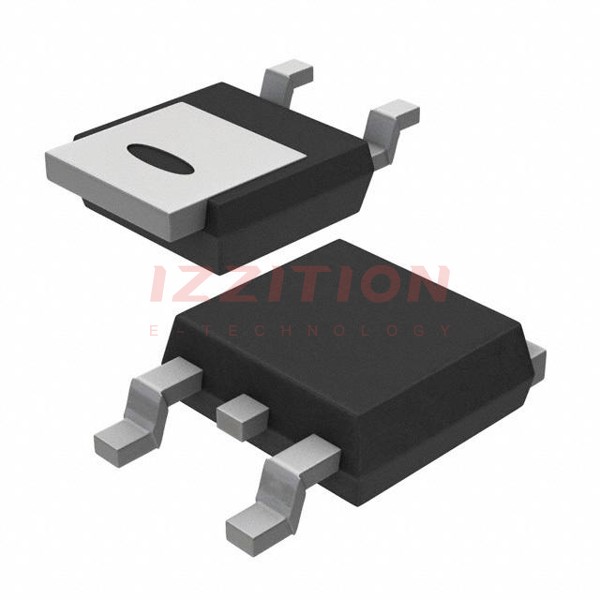

BUK7212-55B,118
  • Share:

Nexperia USA Inc. BUK7212-55B,118

Manufacturer No:
BUK7212-55B,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 55V 75A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK7212-55B,118 is a dual N-channel enhancement mode field effect transistor (MOSFET) manufactured by Nexperia USA Inc. This component is designed for high-performance applications requiring efficient power management. However, it is important to note that this product is scheduled for obsolescence and will be discontinued by the manufacturer once the current stock is depleted.

Key Specifications

ParameterConditionsMinMaxUnit
VDS (Drain-Source Voltage)--55V
VGS (Gate-Source Voltage)--20V
ID (Continuous Drain Current)TC = 25°C-12A
RDS(on) (On-State Drain-Source Resistance)VGS = 10V, ID = 6A-18.5mΩ
Ptot (Total Power Dissipation)TC = 25°C-62W

Key Features

  • Dual N-channel enhancement mode field effect transistor
  • High continuous drain current (ID) of up to 12 A
  • Low on-state drain-source resistance (RDS(on)) of 18.5 mΩ
  • High total power dissipation (Ptot) of up to 62 W
  • Enhanced performance for power management applications

Applications

The BUK7212-55B,118 MOSFET is suitable for various high-power applications, including but not limited to:

  • Power supplies and DC-DC converters
  • Motor control and drive systems
  • High-frequency switching applications
  • Automotive and industrial power systems

Q & A

  1. What is the BUK7212-55B,118?
    The BUK7212-55B,118 is a dual N-channel enhancement mode field effect transistor (MOSFET) manufactured by Nexperia USA Inc.
  2. What is the maximum drain-source voltage (VDS) of the BUK7212-55B,118?
    The maximum drain-source voltage (VDS) is 55 V.
  3. What is the continuous drain current (ID) of the BUK7212-55B,118?
    The continuous drain current (ID) is up to 12 A at TC = 25°C.
  4. What is the on-state drain-source resistance (RDS(on)) of the BUK7212-55B,118?
    The on-state drain-source resistance (RDS(on)) is 18.5 mΩ at VGS = 10V, ID = 6A.
  5. Is the BUK7212-55B,118 still in production?
    No, the BUK7212-55B,118 is scheduled for obsolescence and will be discontinued by the manufacturer once the current stock is depleted.
  6. What are some typical applications of the BUK7212-55B,118?
    Typical applications include power supplies, DC-DC converters, motor control and drive systems, high-frequency switching applications, and automotive and industrial power systems.
  7. What is the total power dissipation (Ptot) of the BUK7212-55B,118?
    The total power dissipation (Ptot) is up to 62 W at TC = 25°C.
  8. Where can I find more detailed specifications for the BUK7212-55B,118?
    You can find detailed specifications in the datasheet available on websites such as Digi-Key, Mouser, or the official Nexperia website.
  9. What is the gate-source voltage (VGS) limit for the BUK7212-55B,118?
    The gate-source voltage (VGS) limit is 20 V.
  10. Can I still purchase the BUK7212-55B,118?
    Yes, you can still purchase the BUK7212-55B,118 while stock is available, but it is recommended to explore substitute products due to its scheduled obsolescence.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):55 V
Current - Continuous Drain (Id) @ 25°C:75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:12mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:35 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2453 pF @ 25 V
FET Feature:-
Power Dissipation (Max):167W (Tc)
Operating Temperature:-55°C ~ 185°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$1.75
172

Please send RFQ , we will respond immediately.

Similar Products

Part Number BUK7212-55B,118 BUK7210-55B,118
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Obsolete
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 55 V 55 V
Current - Continuous Drain (Id) @ 25°C 75A (Tc) 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V
Rds On (Max) @ Id, Vgs 12mOhm @ 25A, 10V 10mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 4V @ 1mA 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 35 nC @ 10 V 35 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 2453 pF @ 25 V 2453 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 167W (Tc) 167W (Tc)
Operating Temperature -55°C ~ 185°C (TJ) -55°C ~ 185°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package DPAK DPAK
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63
