Overview

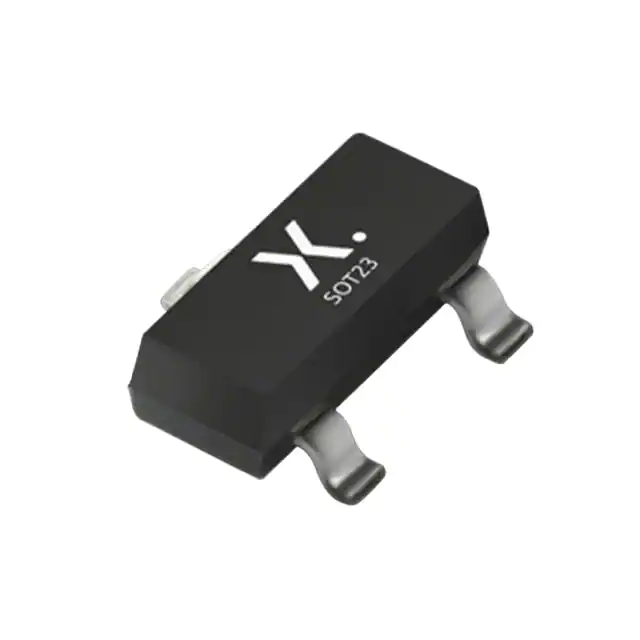

The BST82,235 is a high-performance N-channel MOSFET produced by Nexperia USA Inc. This device is encapsulated in the compact SOT23 package, making it ideal for a wide range of electronic applications where space is limited. The BST82,235 is known for its low power consumption, high integration level, and reliable performance over a wide range of temperatures. It is part of Nexperia's extensive portfolio of MOSFETs, which are recognized for their efficiency and durability.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| VDS (Drain-Source Voltage) | 100 | V |
| ID (Continuous Drain Current) | 0.19 | A |
| Idm (Pulse Drain Current) | 0.8 | A |
| Ptot (Total Power Dissipation) | 0.83 | W |
| Package | SOT23 | - |
| Gate Threshold Voltage (VGS(th)) | 1.5 - 3.5 | V |
Key Features
- Compact SOT23 Package: Ideal for space-constrained applications.
- Low Power Consumption: Enhances device longevity and efficiency.
- High Integration Level: Suitable for complex electronic circuits.
- Reliable Performance: Consistent output over a wide range of temperatures.
- Energy-Efficient Operation: Low Q for higher efficiency and lower spiking.
- Compliance with International Standards: Meets EU/CN RoHS, REACH, and other international standards for electronic components.
Applications
- Automotive Systems: Suitable for various automotive applications due to its robust performance and compliance with automotive standards.
- Consumer Electronics: Used in a variety of consumer electronic devices where compact size and low power consumption are critical.
- Industrial Control Systems: Ideal for industrial control systems that require reliable and efficient performance.
- Power Management Systems: Utilized in power management circuits for its high efficiency and low power consumption.
Q & A
- What is the maximum drain-source voltage (VDS) of the BST82,235 MOSFET?
The maximum drain-source voltage (VDS) of the BST82,235 MOSFET is 100 V.
- What is the continuous drain current (ID) of the BST82,235?
The continuous drain current (ID) of the BST82,235 is 0.19 A.
- What package type is the BST82,235 MOSFET available in?
The BST82,235 MOSFET is available in the SOT23 package.
- Is the BST82,235 compliant with international environmental standards?
Yes, the BST82,235 is compliant with EU/CN RoHS, REACH, and other international standards for electronic components.
- What are the typical applications of the BST82,235 MOSFET?
The BST82,235 MOSFET is typically used in automotive systems, consumer electronics, industrial control systems, and power management systems.
- What is the total power dissipation (Ptot) of the BST82,235?
The total power dissipation (Ptot) of the BST82,235 is 0.83 W.
- Does the BST82,235 have a low power consumption?
Yes, the BST82,235 is designed with low power consumption to enhance device longevity and efficiency.
- What is the gate threshold voltage (VGS(th)) range of the BST82,235?
The gate threshold voltage (VGS(th)) range of the BST82,235 is 1.5 - 3.5 V.
- Is the BST82,235 suitable for high-temperature applications?
Yes, the BST82,235 provides reliable performance over a wide range of temperatures.
- How is the BST82,235 supplied for automated assembly?
The BST82,235 is supplied in tape and reel for automated assembly.
