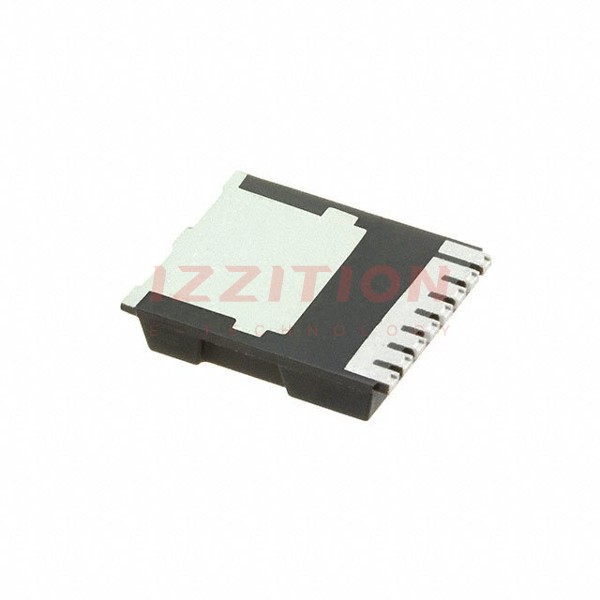

Infineon Technologies IPLU300N04S4R8XTMA1

Manufacturer No:
IPLU300N04S4R8XTMA1
Manufacturer:
Infineon Technologies
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 300A 8HSOF
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The IPLU300N04S4-R8XTMA1, produced by Infineon Technologies, is a high-performance automotive MOSFET designed for demanding applications. This N-channel MOSFET is part of Infineon's OptiMOS™-T2 family, known for its excellent electrical and thermal characteristics. The device is optimized for high current automotive applications, offering superior efficiency and reliability.

Key Specifications

ParameterValue
VBRDSS (Drain-Source Breakdown Voltage)40 V
RDSon (On-Resistance)0.77 mΩ (max)
ID (Continuous Drain Current)300 A
RthJC (Junction-to-Case Thermal Resistance)0.35 K/W
Package Footprint Area115 mm²
Lead-Free100% lead-free
Package TypeTOLL Package (JEDEC registered)

Key Features

  • High current capability: Suitable for high current automotive applications.
  • Low on-resistance: RDSon of 0.77 mΩ (max) for efficient power handling.
  • Automotive-grade reliability: Compliant with automotive standards and 100% lead-free.
  • AOI (Automatic Optical Inspection) capability: Ensures high-quality production.
  • TOLL Package: JEDEC registered package for standardized use.

Applications

  • High Current Automotive Applications: Ideal for systems requiring high power handling.
  • Electronic Power Steering (EPS): Enhances the efficiency and reliability of EPS systems.
  • Battery Management – Start Stop: Suitable for battery management in start-stop systems.

Q & A

  1. What is the maximum drain-source breakdown voltage of the IPLU300N04S4-R8XTMA1?
    The maximum drain-source breakdown voltage is 40 V.
  2. What is the on-resistance of the IPLU300N04S4-R8XTMA1?
    The on-resistance (RDSon) is 0.77 mΩ (max).
  3. What is the continuous drain current rating of the IPLU300N04S4-R8XTMA1?
    The continuous drain current (ID) is 300 A.
  4. What is the junction-to-case thermal resistance of the IPLU300N04S4-R8XTMA1?
    The junction-to-case thermal resistance (RthJC) is 0.35 K/W.
  5. Is the IPLU300N04S4-R8XTMA1 lead-free?
    Yes, the device is 100% lead-free.
  6. What type of package does the IPLU300N04S4-R8XTMA1 use?
    The device uses a TOLL Package, which is JEDEC registered.
  7. What are some potential applications for the IPLU300N04S4-R8XTMA1?
    Potential applications include high current automotive applications, electronic power steering (EPS), and battery management – start stop systems.
  8. Does the IPLU300N04S4-R8XTMA1 support AOI (Automatic Optical Inspection)?
    Yes, the device supports AOI.
  9. Why is the IPLU300N04S4-R8XTMA1 suitable for automotive applications?
    The device is suitable due to its high current capability, low on-resistance, and compliance with automotive standards.
  10. Where can I find more detailed specifications and documentation for the IPLU300N04S4-R8XTMA1?
    You can find detailed specifications and documentation on Infineon's official website and through authorized distributors like Digi-Key, Mouser, and Arrow Electronics.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:300A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:0.77mOhm @ 100A, 10V
Vgs(th) (Max) @ Id:4V @ 230µA
Gate Charge (Qg) (Max) @ Vgs:287 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:22945 pF @ 25 V
FET Feature:-
Power Dissipation (Max):429W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-HSOF-8-1
Package / Case:8-PowerSFN
