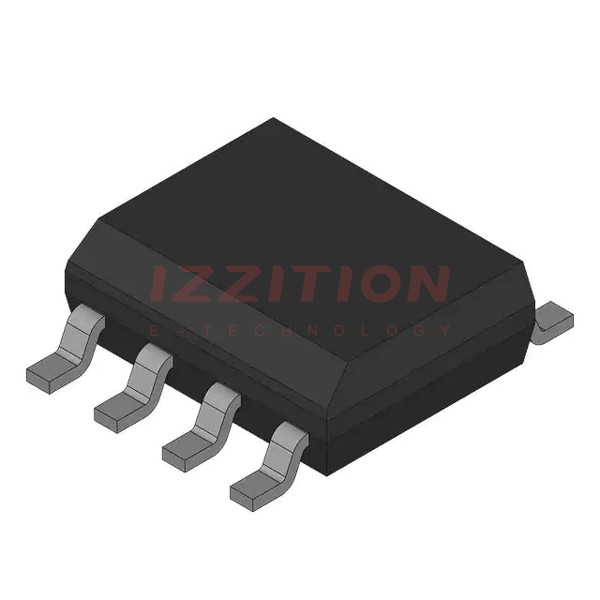

Analog Devices Inc. LTC1624CS8#PBF

Manufacturer No:
LTC1624CS8#PBF
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Description:
LTC1624 - HI EFF SO-8, N-CHENNEL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC1624CS8#PBF is a high-efficiency current mode switching regulator controller produced by Analog Devices Inc. This device is designed to drive an external N-channel power MOSFET using a fixed frequency architecture, making it versatile for various DC-DC conversion applications. It supports multiple topologies including boost, step-down, SEPIC, and inverting regulators, making it a robust solution for power management in a wide range of electronic devices.

Key Specifications

ParameterValueUnits
Input Supply Voltage (VIN)3.5 to 36V
Output Voltage Range (Step-Down Configuration)1.19 to 30V
Reference Voltage±1% 1.19V
Fixed Frequency200kHzHz
Peak Driver Output Current (< 10 µs)2A
Operating Temperature Range0 to 70°C (LTC1624CS), -40 to 85°C (LTC1624IS)°C
Junction Temperature125°C
Package Type8-Lead SO

Key Features

  • Drives an external N-channel power MOSFET using a fixed frequency architecture.
  • Supports boost, step-down, SEPIC, and inverting regulator configurations.
  • Wide input voltage range: 3.5V to 36V.
  • Wide output voltage range: 1.19V to 30V in step-down configuration.
  • ±1% 1.19V reference voltage.
  • Low dropout operation with 95% duty cycle.
  • Low standby current.
  • Very high efficiency.
  • Remote output voltage sense.
  • Logic-controlled micropower shutdown.
  • Internal diode for bootstrapped gate drive.
  • Current mode operation for excellent line and load transient response.

Applications

  • Notebook and palmtop computers.
  • PDAs.
  • Cellular telephones and wireless modems.
  • Battery-operated digital devices.
  • DC power distribution systems.
  • Battery chargers.

Q & A

  1. What is the LTC1624CS8#PBF used for? The LTC1624CS8#PBF is a current mode switching regulator controller used for driving an external N-channel power MOSFET in various DC-DC conversion applications.
  2. What are the supported topologies by the LTC1624? The LTC1624 supports boost, step-down, SEPIC, and inverting regulator configurations.
  3. What is the input voltage range of the LTC1624? The input voltage range is from 3.5V to 36V.
  4. What is the output voltage range in step-down configuration? The output voltage range in step-down configuration is from 1.19V to 30V.
  5. What is the fixed frequency of the LTC1624? The fixed frequency is 200kHz.
  6. What are the operating temperature ranges for the LTC1624CS and LTC1624IS? The operating temperature range for LTC1624CS is 0 to 70°C, and for LTC1624IS, it is -40 to 85°C.
  7. What is the junction temperature of the LTC1624? The junction temperature is 125°C.
  8. What package type is the LTC1624 available in? The LTC1624 is available in an 8-Lead SO package.
  9. Does the LTC1624 support remote output voltage sense? Yes, the LTC1624 supports remote output voltage sense.
  10. How does the LTC1624 handle shutdown? The LTC1624 has logic-controlled micropower shutdown.
