TPS92690Q1PWPR/NOPB
  • Share:

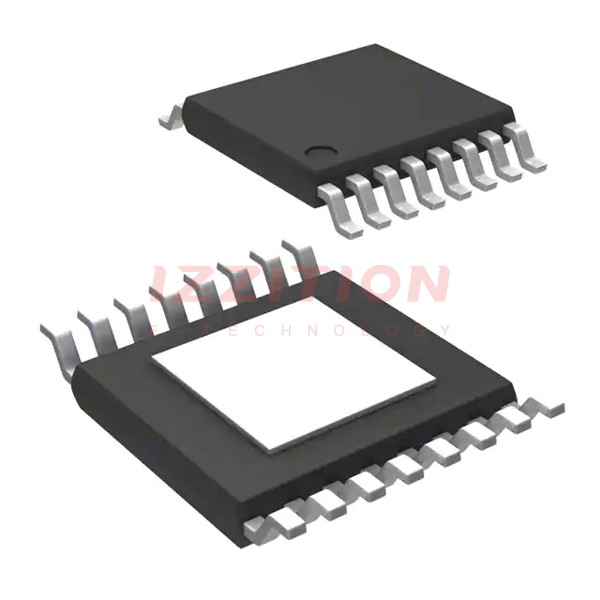

Texas Instruments TPS92690Q1PWPR/NOPB

Manufacturer No:
TPS92690Q1PWPR/NOPB
Manufacturer:
Texas Instruments
Package:
Bulk
Description:
TPS92690-Q1 AUTOMOTIVE N-CHANNEL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TPS92690Q1PWPR/NOPB from Texas Instruments is a high-voltage, low-side N-channel controller designed for dimmable LED drives. This device is particularly suited for applications requiring adjustable output current sense and supports various topologies such as boost, SEPIC, flyback, and Cuk. It operates over a wide input voltage range of 4.5 to 75 V and features a high-speed PWM controller with an oscillator frequency range up to 2 MHz. The device is packaged in a 16-pin HTSSOP (PWP) with an exposed pad, making it suitable for automotive and other high-reliability applications.

Key Specifications

ParameterValue
Input Voltage Range4.5 to 75 V
Current Sense Range50 to 500 mV
MOSFET Gate Driver Resistance2 Ω
Oscillator Frequency RangeUp to 2 MHz
Package TypeHTSSOP (PWP), 16-Pin
Operating Temperature Range-40 to 125°C
Protection FeaturesInput Undervoltage Protection, Output Overvoltage Protection, Cycle-by-Cycle Current Limit, Thermal Shutdown

Key Features

  • Adjustable current sense (50 to 500 mV)
  • Low-side current sensing
  • 2-Ω MOSFET gate driver
  • PWM dimming input
  • Programmable oscillator frequency
  • External synchronization capability
  • Slope compensation
  • Programmable soft-start function
  • High-voltage start-up regulator
  • Error amplifier and precision reference
  • Cycle-by-cycle current limit and thermal shutdown

Applications

The TPS92690Q1PWPR/NOPB is ideal for various LED driver applications, including those requiring dimming capabilities. It is suitable for use in boost, SEPIC, flyback, and Cuk topologies. This device is particularly useful in automotive lighting systems and other high-reliability applications where robust and efficient LED control is necessary.

Q & A

  1. What is the input voltage range of the TPS92690Q1PWPR/NOPB?
    The input voltage range is from 4.5 to 75 V.
  2. What is the current sense range of this device?
    The current sense range is adjustable from 50 to 500 mV.
  3. What type of package does the TPS92690Q1PWPR/NOPB come in?
    The device is packaged in a 16-pin HTSSOP (PWP) with an exposed pad.
  4. What are the protection features of the TPS92690Q1PWPR/NOPB?
    The device includes input undervoltage protection, output overvoltage protection, cycle-by-cycle current limit, and thermal shutdown.
  5. What is the oscillator frequency range of this device?
    The oscillator frequency range is up to 2 MHz.
  6. Is the TPS92690Q1PWPR/NOPB suitable for automotive applications?
    Yes, it is designed for high-reliability applications, including automotive lighting systems.
  7. What topologies does the TPS92690Q1PWPR/NOPB support?
    The device supports boost, SEPIC, flyback, and Cuk topologies.
  8. Does the TPS92690Q1PWPR/NOPB have PWM dimming capability?
    Yes, it includes a PWM dimming input.
  9. Can the oscillator frequency be programmed?
    Yes, the oscillator frequency is programmable.
  10. What is the operating temperature range of the TPS92690Q1PWPR/NOPB?
    The operating temperature range is from -40 to 125°C.

Product Attributes

FET Type:-
Technology:-
Drain to Source Voltage (Vdss):-
Current - Continuous Drain (Id) @ 25°C:-
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:-
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):-
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):-
Operating Temperature:-
Mounting Type:-
Supplier Device Package:-
Package / Case:-
0 Remaining View Similar

In Stock

-
193

Please send RFQ , we will respond immediately.
