CSD18540Q5BT
  • Share:

Texas Instruments CSD18540Q5BT

Manufacturer No:
CSD18540Q5BT
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 100A 8VSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

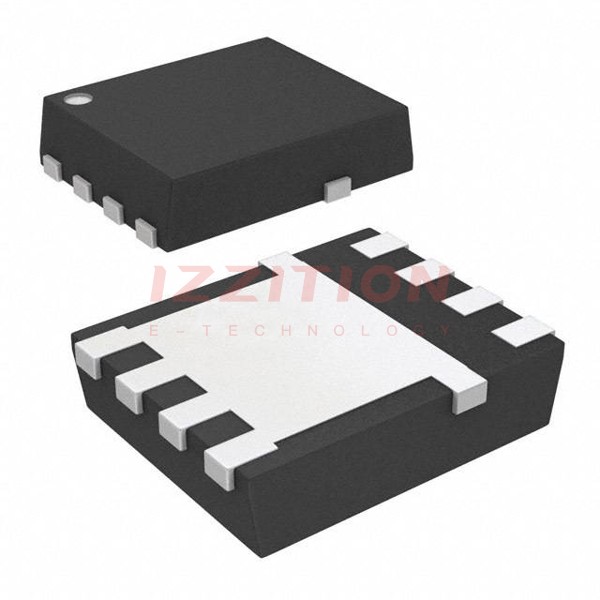

The CSD18540Q5BT is a 60-V, N-channel NexFET™ power MOSFET produced by Texas Instruments. This component is housed in a VSON-CLIP (DNK) package, measuring 5 mm x 6 mm with 8 pins. It is designed for high-performance applications requiring low on-resistance and high current handling capabilities.

Key Specifications

ParameterValue
Drain-Source Voltage (Vds)60 V
On-Resistance (Rds(on))2.2 mΩ
Drain Current (Id)100 A
Package TypeVSON-CLIP (DNK), 8 pins
Package Size5 mm x 6 mm
Operating Temperature Range-55°C to 150°C

Key Features

  • NexFET™ technology for enhanced performance and reliability
  • Low on-resistance of 2.2 mΩ for reduced power losses
  • High drain current capability of 100 A
  • Compact VSON-CLIP (DNK) package for space-efficient designs
  • Wide operating temperature range from -55°C to 150°C

Applications

The CSD18540Q5BT is suitable for a variety of high-power applications, including but not limited to:

  • Power supplies and DC-DC converters
  • Motor control and drive systems
  • Automotive systems requiring high reliability and performance
  • Industrial power management and control systems

Q & A

  1. What is the maximum drain-source voltage of the CSD18540Q5BT?
    The maximum drain-source voltage is 60 V.
  2. What is the on-resistance of the CSD18540Q5BT?
    The on-resistance is 2.2 mΩ.
  3. What is the maximum drain current of the CSD18540Q5BT?
    The maximum drain current is 100 A.
  4. What type of package does the CSD18540Q5BT use?
    The component is housed in a VSON-CLIP (DNK) package with 8 pins.
  5. What are the dimensions of the VSON-CLIP package?
    The package measures 5 mm x 6 mm.
  6. What is the operating temperature range of the CSD18540Q5BT?
    The operating temperature range is from -55°C to 150°C.
  7. What technology does the CSD18540Q5BT use?
    The CSD18540Q5BT uses NexFET™ technology.
  8. Is the CSD18540Q5BT suitable for automotive applications?
    Yes, it is suitable for automotive systems requiring high reliability and performance.
  9. Can the CSD18540Q5BT be used in power supplies and DC-DC converters?
    Yes, it is suitable for power supplies and DC-DC converters.
  10. Where can I find detailed specifications for the CSD18540Q5BT?
    Detailed specifications can be found in the datasheet available on Texas Instruments' official website and other electronic component distributors like Digi-Key and TME.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:100A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:2.2mOhm @ 28A, 10V
Vgs(th) (Max) @ Id:2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:53 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4230 pF @ 30 V
FET Feature:-
Power Dissipation (Max):3.1W (Ta), 195W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-VSON-CLIP (5x6)
Package / Case:8-PowerTDFN
0 Remaining View Similar

In Stock

$3.10
242

Please send RFQ , we will respond immediately.
