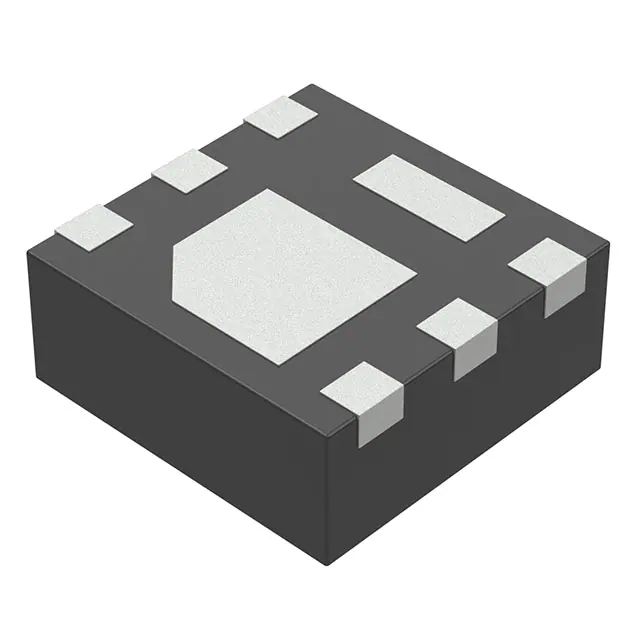

Texas Instruments CSD13202Q2

Manufacturer No:
CSD13202Q2
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 12V 22A 6WSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The CSD13202Q2, manufactured by Texas Instruments, is a single-channel, N-channel NexFET™ power MOSFET designed for high-efficiency power management applications. It features a compact 2mm x 2mm SON package, making it suitable for space-constrained designs. With a low on-resistance of 9.3mΩ and a voltage rating of 12V, this MOSFET is ideal for applications requiring high current handling and minimal power loss. Its market positioning targets engineers and designers in industries such as consumer electronics, automotive, and industrial automation, where energy efficiency and compactness are critical. The CSD13202Q2 stands out for its advanced NexFET™ technology, which ensures superior thermal performance and reliability.

Key Specifications

ParameterValueUnitNotes
ModelCSD13202Q2--
ManufacturerTexas Instruments--
PackageWSON6-2mm x 2mm
On-Resistance (RDS(on))9.3mΩ-
Voltage Rating12V-
Channel TypeN-channel--
TechnologyNexFET™--
Packaging3000PCS/package--

Key Features

  • Low on-resistance of 9.3mΩ for reduced power loss.
  • Compact 2mm x 2mm SON package for space-constrained designs.
  • 12V voltage rating suitable for a wide range of applications.
  • Advanced NexFET™ technology for superior thermal performance.
  • High current handling capability for efficient power management.

Applications

The CSD13202Q2 is widely used in various applications, including:

  • Consumer Electronics: Power management in smartphones, tablets, and portable devices.
  • Automotive: Efficient power handling in automotive electronics and infotainment systems.
  • Industrial Automation: High-performance power switching in industrial equipment and machinery.
  • Telecommunications: Reliable power management in communication devices and infrastructure.

Q & A

1. What is the on-resistance of the CSD13202Q2?

The on-resistance (RDS(on)) is 9.3mΩ.

2. What is the voltage rating of this MOSFET?

The voltage rating is 12V.

3. What package does the CSD13202Q2 use?

It uses a 2mm x 2mm WSON6 package.

4. What is the channel type of the CSD13202Q2?

It is an N-channel MOSFET.

5. What technology is used in this MOSFET?

It utilizes Texas Instruments' NexFET™ technology.

6. What are the typical applications of the CSD13202Q2?

Typical applications include consumer electronics, automotive, industrial automation, and telecommunications.

7. How many units are included in a single package?

Each package contains 3000 units.

8. Is the CSD13202Q2 suitable for high-current applications?

Yes, its low on-resistance and NexFET™ technology make it ideal for high-current applications.

9. What is the advantage of the NexFET™ technology?

It provides superior thermal performance and reliability.

10. Can the CSD13202Q2 be used in automotive applications?

Yes, it is well-suited for automotive electronics due to its efficiency and compact design.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):12 V
Current - Continuous Drain (Id) @ 25°C:22A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
Rds On (Max) @ Id, Vgs:9.3mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id:1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:6.6 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:997 pF @ 6 V
FET Feature:-
Power Dissipation (Max):2.7W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-WSON (2x2)
Package / Case:6-WDFN Exposed Pad
