STV300NH02L
  • Share:

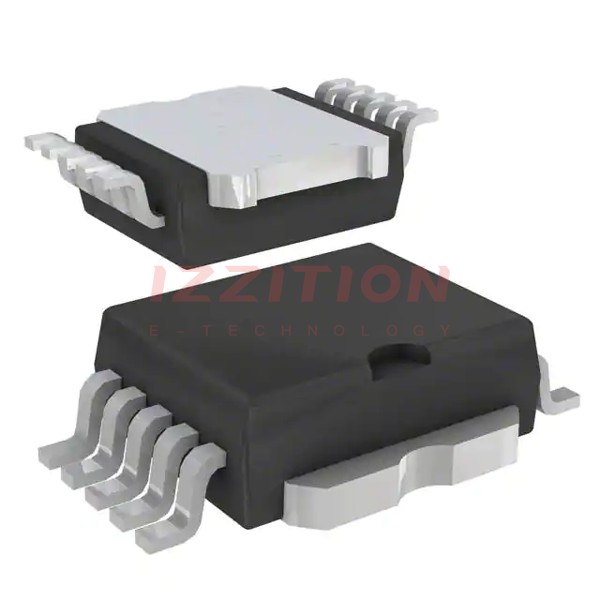

STMicroelectronics STV300NH02L

Manufacturer No:
STV300NH02L
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 24V 200A 10POWERSO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STH300NH02L-6 is an N-channel enhancement mode Power MOSFET produced by STMicroelectronics using their STripFET™ III technology. This device is specifically designed to minimize on-resistance and gate charge, providing superior switching performance. It is AEC-Q101 qualified, making it suitable for automotive applications.

Key Specifications

Parameter Value Unit
Order Code STH300NH02L-6
Drain-Source Voltage (VDS) 24 V
Gate-Source Voltage (VGS) ±20 V
Drain Current (ID) Continuous at TC = 25 °C 180 A
Drain Current (ID) Pulsed 720 A
Total Dissipation at TC = 25 °C 300 W
Static Drain-Source On-Resistance (RDS(on)) at VGS = 10 V, ID = 80 A 0.95 mΩ mΩ
Operating Junction Temperature (Tj) -55 to 175 °C
Storage Temperature (Tstg) -55 to 175 °C

Key Features

  • Designed for automotive applications and AEC-Q101 qualified.
  • Conduction losses reduced.
  • Low profile, very low parasitic inductance, high current package (H2PAK-6).
  • Superior switching performance due to minimized on-resistance and gate charge.

Applications

  • Switching applications in automotive systems.
  • Industrial applications requiring high current and low on-resistance.

Q & A

  1. What is the STH300NH02L-6 MOSFET used for?

    The STH300NH02L-6 is used in switching applications, particularly in automotive and industrial systems.

  2. What is the maximum drain-source voltage of the STH300NH02L-6?

    The maximum drain-source voltage (VDS) is 24 V.

  3. What is the maximum continuous drain current of the STH300NH02L-6?

    The maximum continuous drain current (ID) is 180 A at TC = 25 °C.

  4. What is the typical on-resistance of the STH300NH02L-6?

    The typical static drain-source on-resistance (RDS(on)) is 0.95 mΩ at VGS = 10 V and ID = 80 A.

  5. What package does the STH300NH02L-6 come in?

    The STH300NH02L-6 comes in a H2PAK-6 package.

  6. Is the STH300NH02L-6 AEC-Q101 qualified?
  7. What is the operating junction temperature range of the STH300NH02L-6?

    The operating junction temperature (Tj) range is -55 to 175 °C.

  8. What is the storage temperature range of the STH300NH02L-6?

    The storage temperature (Tstg) range is -55 to 175 °C.

  9. What is the total dissipation at TC = 25 °C for the STH300NH02L-6?

    The total dissipation at TC = 25 °C is 300 W.

  10. How does the STripFET™ III technology benefit the STH300NH02L-6?

    The STripFET™ III technology minimizes on-resistance and gate charge, providing superior switching performance.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):24 V
Current - Continuous Drain (Id) @ 25°C:200A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V, 5V
Rds On (Max) @ Id, Vgs:1mOhm @ 80A, 10V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:109 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:7055 pF @ 15 V
FET Feature:-
Power Dissipation (Max):300W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:10-PowerSO
Package / Case:PowerSO-10 Exposed Bottom Pad
0 Remaining View Similar

In Stock

-
52

Please send RFQ , we will respond immediately.
