Overview

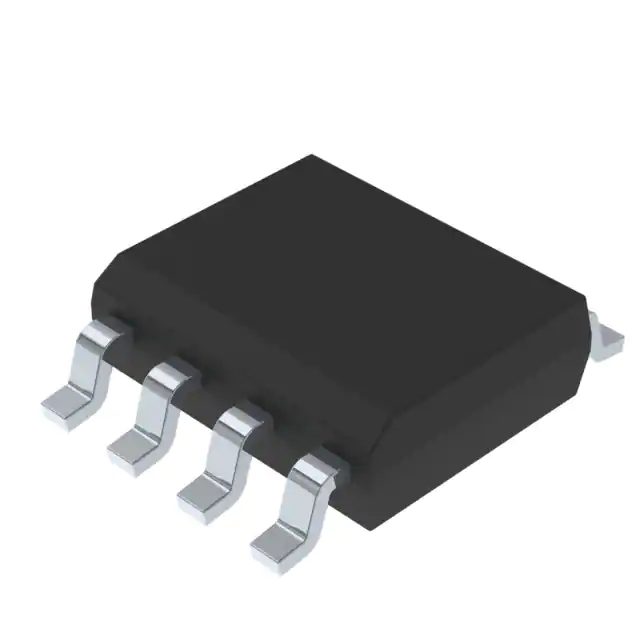

The STS4DNFS30L is an N-channel Power MOSFET produced by STMicroelectronics. This device combines the latest low voltage STripFET™ technology in an N-channel version with a low drop Schottky diode, making it highly versatile for various applications. The STS4DNFS30L is packaged in an SO-8 format, which is compact and suitable for space-constrained designs.
Key Specifications
| Parameter | Value |
|---|---|
| VDS (Drain-Source Voltage) | 30 V |
| RDS(on) (On-State Resistance) | 0.039 Ω |
| ID (Drain Current) | 4 A |
| Package | SO-8 |
| Configuration | N-channel with low drop Schottky diode |
Key Features
- Low on-state resistance (RDS(on)) of 0.039 Ω, reducing power losses.
- High drain current (ID) of 4 A, suitable for high current applications.
- Compact SO-8 package, ideal for space-constrained designs.
- Integrated low drop Schottky diode, enhancing overall efficiency and reducing component count.
Applications
- DC-DC converters: The STS4DNFS30L is often used in DC-DC converter circuits due to its low on-state resistance and high current handling capability.
- Power management: Suitable for power management in various electronic devices where high efficiency and low power loss are critical.
- Automotive and industrial systems: Can be used in automotive and industrial applications requiring reliable and efficient power switching.
Q & A
- What is the drain-source voltage rating of the STS4DNFS30L?
The drain-source voltage rating is 30 V. - What is the on-state resistance of the STS4DNFS30L?
The on-state resistance is 0.039 Ω. - What is the maximum drain current of the STS4DNFS30L?
The maximum drain current is 4 A. - In what package is the STS4DNFS30L available?
The STS4DNFS30L is available in an SO-8 package. - What is the configuration of the STS4DNFS30L?
The STS4DNFS30L is an N-channel Power MOSFET with an integrated low drop Schottky diode. - Is the STS4DNFS30L suitable for high current applications?
Yes, it is suitable for high current applications due to its high drain current rating. - Can the STS4DNFS30L be used in DC-DC converters?
Yes, it is often used in DC-DC converter circuits. - Is the STS4DNFS30L still in production?
No, the STS4DNFS30L is no longer manufactured. - What are some common applications of the STS4DNFS30L?
Common applications include DC-DC converters, power management, and automotive and industrial systems. - What are the benefits of the integrated low drop Schottky diode in the STS4DNFS30L?
The integrated low drop Schottky diode enhances overall efficiency and reduces component count.
