STP80NF10FP
  • Share:

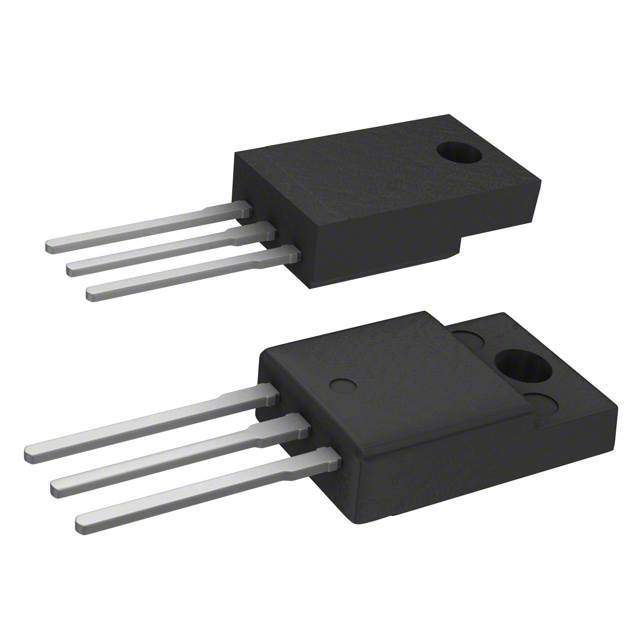

STMicroelectronics STP80NF10FP

Manufacturer No:
STP80NF10FP
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
MOSFET N-CH 100V 38A TO220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STP80NF10FP is a high-performance Power MOSFET developed by STMicroelectronics. This device is part of the STripFET series, which is designed using STMicroelectronics' unique STripFET process. This technology is optimized to minimize input capacitance and gate charge, making it highly efficient for various power management applications. The STP80NF10FP is particularly suited for applications requiring high current handling and low on-resistance.

Key Specifications

ParameterValue
Transistor TypeN-MOSFET, unipolar
Drain-Source Voltage (Vds)100V
Continuous Drain Current (Id)27A
Power Dissipation (Pd)45W
Package TypeTO-220FP
Gate Charge (Qg)Low gate charge
Avalanche Testing100% avalanche tested

Key Features

The STP80NF10FP features several key enhancements that make it a robust choice for power management:

  • STripFET F8 Technology: Utilizes an enhanced trench gate structure for improved performance.
  • Low Gate Charge: Minimized input capacitance and gate charge for better switching efficiency.
  • Zener Protection: Integrated Zener protection for enhanced reliability.
  • Avalanche Testing: 100% avalanche tested to ensure robustness against transient conditions.

Applications

The STP80NF10FP is ideal for a variety of applications, including:

  • Flyback Converters: Suitable for high-efficiency flyback converter designs.
  • LED Lighting: Optimized for LED lighting applications requiring high current and low on-resistance.
  • Power Supplies: Can be used in various power supply designs where high current handling and efficiency are critical.

Q & A

  1. What is the drain-source voltage rating of the STP80NF10FP?
    The drain-source voltage rating of the STP80NF10FP is 100V.
  2. What is the continuous drain current of the STP80NF10FP?
    The continuous drain current of the STP80NF10FP is 27A.
  3. What package type does the STP80NF10FP use?
    The STP80NF10FP uses the TO-220FP package type.
  4. Is the STP80NF10FP avalanche tested?
    Yes, the STP80NF10FP is 100% avalanche tested.
  5. What technology does the STP80NF10FP use?
    The STP80NF10FP uses STMicroelectronics' STripFET F8 technology.
  6. What are some typical applications of the STP80NF10FP?
    The STP80NF10FP is typically used in flyback converters, LED lighting, and various power supply designs.
  7. Does the STP80NF10FP have Zener protection?
    Yes, the STP80NF10FP has integrated Zener protection.
  8. What is the power dissipation rating of the STP80NF10FP?
    The power dissipation rating of the STP80NF10FP is 45W.
  9. Why is the STP80NF10FP designed to minimize input capacitance and gate charge?
    The STP80NF10FP is designed to minimize input capacitance and gate charge to improve switching efficiency.
  10. Where can I find detailed specifications for the STP80NF10FP?
    Detailed specifications for the STP80NF10FP can be found in the datasheet available on STMicroelectronics' official website and other electronic component distributors like Mouser and Digi-Key.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:38A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:15mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:189 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4300 pF @ 25 V
FET Feature:-
Power Dissipation (Max):45W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220FP
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

$4.10
93

Please send RFQ , we will respond immediately.
