STP55NF06FP
  • Share:

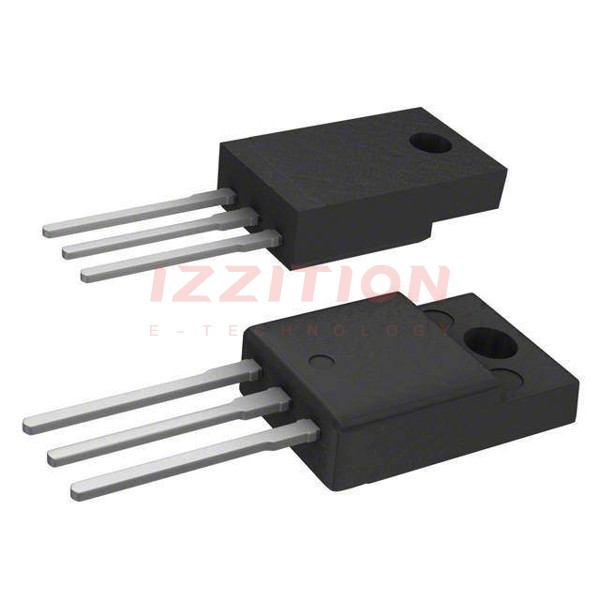

STMicroelectronics STP55NF06FP

Manufacturer No:
STP55NF06FP
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
MOSFET N-CH 60V 50A TO220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STP55NF06FP is a high-performance N-channel Power MOSFET developed by STMicroelectronics using their unique STripFET II process. This device is designed to minimize input capacitance and gate charge, making it highly suitable for advanced high-efficiency isolated DC-DC converters and applications requiring low gate charge driving.

Available in the TO-220FP package, this MOSFET offers exceptional dv/dt capability and is 100% avalanche tested, ensuring robust and reliable operation in various switching applications.

Key Specifications

Parameter Value Unit
Drain-Source Voltage (VDS) 60 V
Gate-Source Voltage (VGS) ±20 V
Drain Current (continuous) at TC = 25 °C 50 A
Drain Current (continuous) at TC = 100 °C 35 A
Drain Current (pulsed) 200 A
Total Dissipation at TC = 25 °C 30 W
Derating Factor 0.20 W/°C
Static Drain-Source On-Resistance (RDS(on)) < 0.018 Ω Ω
Gate Threshold Voltage (VGS(th)) 2 - 4 V
Thermal Resistance Junction-Case (Rthj-case) 5 °C/W
Thermal Resistance Junction-Ambient (Rthj-amb) 62.5 °C/W
Storage Temperature (Tstg) -55 to 175 °C
Max. Operating Junction Temperature (Tj) 150 °C

Key Features

  • Developed using STMicroelectronics' unique STripFET II process to minimize input capacitance and gate charge.
  • Exceptional dv/dt capability.
  • 100% avalanche tested.
  • Low on-resistance (RDS(on) < 0.018 Ω).
  • High packing density and rugged avalanche characteristics.
  • Available in TO-220FP package, suitable for through-hole mounting.
  • ECOPACK® compliant packages available, meeting various environmental standards.

Applications

  • Advanced high-efficiency isolated DC-DC converters.
  • Telecom and computer applications.
  • Switching applications requiring low gate charge driving.
  • Other high-power switching and power management systems.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the STP55NF06FP?

    60 V.

  2. What is the maximum continuous drain current at 25 °C?

    50 A.

  3. What is the typical on-resistance (RDS(on)) of the STP55NF06FP?

    < 0.018 Ω.

  4. What is the gate threshold voltage (VGS(th)) range?

    2 - 4 V.

  5. What are the thermal resistance values for junction-case and junction-ambient?

    Junction-case: 5 °C/W, Junction-ambient: 62.5 °C/W.

  6. Is the STP55NF06FP 100% avalanche tested?
  7. What are the storage and operating temperature ranges?

    Storage: -55 to 175 °C, Operating: up to 150 °C.

  8. In which package is the STP55NF06FP available?

    TO-220FP package.

  9. What are some typical applications for the STP55NF06FP?

    Advanced high-efficiency isolated DC-DC converters, telecom and computer applications, and other high-power switching systems.

  10. Is the STP55NF06FP compliant with environmental standards?

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:18mOhm @ 27.5A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:60 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1300 pF @ 25 V
FET Feature:-
Power Dissipation (Max):30W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220FP
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

$2.45
69

Please send RFQ , we will respond immediately.
