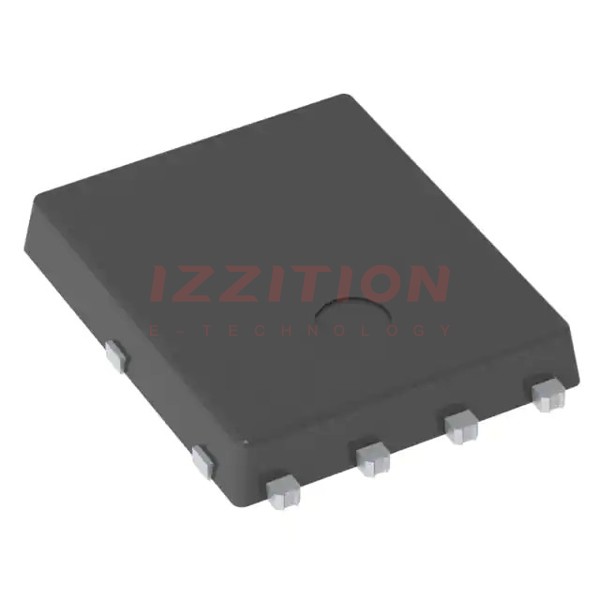

STMicroelectronics STL135N8F7AG

Manufacturer No:
STL135N8F7AG
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 80V 130A POWERFLAT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STL135N8F7AG is an automotive-grade N-channel power MOSFET from STMicroelectronics, part of the STripFET F7 series. This device is designed to offer high performance and reliability in various power management applications. It features a PowerFLAT 5x6 package, which provides excellent thermal performance and a compact footprint.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)80 V
RDS(on) (On-State Resistance)3.15 mΩ (typ.)
ID (Continuous Drain Current)120 A
Ptot (Total Power Dissipation)Dependent on package and thermal conditions
TJ (Junction Temperature)-40°C to 150°C
PackagePowerFLAT 5x6

Key Features

  • High current capability: 120 A continuous drain current.
  • Low on-state resistance: 3.15 mΩ typical.
  • High voltage rating: 80 V drain-source voltage.
  • Automotive-grade: Suitable for use in automotive applications.
  • Compact package: PowerFLAT 5x6 package for efficient thermal management.
  • High reliability: Designed to meet stringent automotive standards.

Applications

  • Automotive systems: Power management in electric vehicles, hybrid vehicles, and conventional vehicles.
  • Industrial power supplies: High-efficiency switching power supplies.
  • Motor control: DC-DC converters, motor drives, and power inverters.
  • Railway applications: Power conversion and control systems.
  • Renewable energy systems: Solar and wind power conversion.

Q & A

  1. What is the maximum drain-source voltage of the STL135N8F7AG?
    The maximum drain-source voltage is 80 V.
  2. What is the typical on-state resistance of the STL135N8F7AG?
    The typical on-state resistance is 3.15 mΩ.
  3. What is the continuous drain current rating of the STL135N8F7AG?
    The continuous drain current rating is 120 A.
  4. What package type is used for the STL135N8F7AG?
    The device is packaged in a PowerFLAT 5x6 package.
  5. Is the STL135N8F7AG suitable for automotive applications?
    Yes, it is an automotive-grade MOSFET.
  6. What are some common applications for the STL135N8F7AG?
    Common applications include automotive systems, industrial power supplies, motor control, railway applications, and renewable energy systems.
  7. What is the junction temperature range for the STL135N8F7AG?
    The junction temperature range is -40°C to 150°C.
  8. How does the PowerFLAT 5x6 package benefit the STL135N8F7AG?
    The PowerFLAT 5x6 package provides excellent thermal performance and a compact footprint.
  9. What are the key advantages of using the STL135N8F7AG in power management applications?
    The key advantages include high current capability, low on-state resistance, high voltage rating, and high reliability.
  10. Where can I find detailed specifications for the STL135N8F7AG?
    Detailed specifications can be found on the STMicroelectronics official website or through distributors like Future Electronics.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):80 V
Current - Continuous Drain (Id) @ 25°C:130A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:3.6mOhm @ 13A, 10V
Vgs(th) (Max) @ Id:4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:103 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:6800 pF @ 40 V
FET Feature:-
Power Dissipation (Max):4.8W (Ta), 135W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Supplier Device Package:PowerFlat™ (5x6)
Package / Case:8-PowerVDFN
