STH180N10F3-2
  • Share:

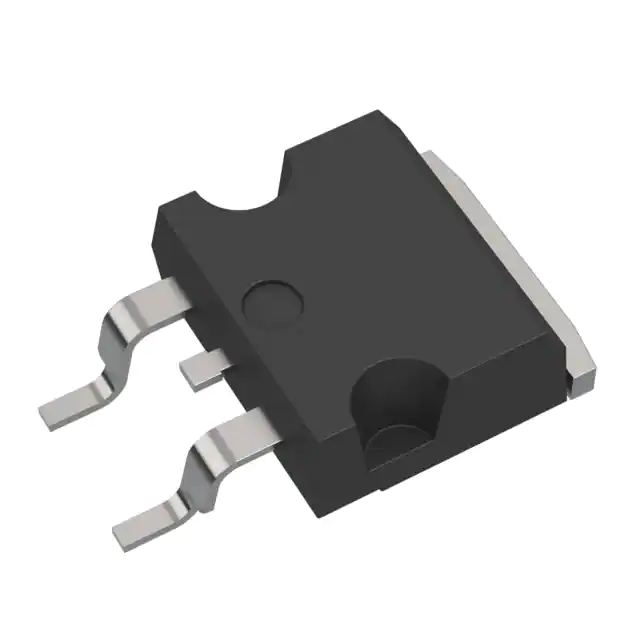

STMicroelectronics STH180N10F3-2

Manufacturer No:
STH180N10F3-2
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 180A H2PAK-2
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STH180N10F3-2 is an N-channel enhancement mode Power MOSFET developed by STMicroelectronics using their advanced STripFET F3 technology. This device is designed to minimize on-resistance and gate charge, providing superior performance in high-power applications. It is particularly suited for use in systems that require high efficiency, low thermal resistance, and robust reliability.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)100 V
RDS(on) (On-Resistance)3.9 mΩ (typical)
ID (Continuous Drain Current)180 A
VGS (Gate-Source Voltage)±20 V
PackageH²PAK-2, TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Key Features

  • Low on-resistance (RDS(on)) of 3.9 mΩ (typical) to minimize power losses.
  • High continuous drain current (ID) of 180 A.
  • Advanced STripFET F3 technology for improved performance and reliability.
  • Low gate charge to reduce switching losses.
  • High voltage rating of 100 V for robust operation in various applications.

Applications

The STH180N10F3-2 is suitable for a wide range of high-power applications, including:

  • Power supplies and DC-DC converters.
  • Motor control and drives.
  • Automotive systems, such as electric vehicles and hybrid vehicles.
  • Industrial power systems and renewable energy systems.
  • High-frequency switching applications.

Q & A

  1. What is the typical on-resistance of the STH180N10F3-2? The typical on-resistance (RDS(on)) is 3.9 mΩ.
  2. What is the maximum continuous drain current of the STH180N10F3-2? The maximum continuous drain current (ID) is 180 A.
  3. What technology is used in the STH180N10F3-2? The STH180N10F3-2 is developed using STMicroelectronics' STripFET F3 technology.
  4. What is the voltage rating of the STH180N10F3-2? The voltage rating (VDS) is 100 V.
  5. What are the available packages for the STH180N10F3-2? The available packages include H²PAK-2, TO-263-3, D2Pak (2 Leads + Tab), and TO-263AB.
  6. What are some common applications for the STH180N10F3-2? Common applications include power supplies, motor control, automotive systems, industrial power systems, and high-frequency switching applications.
  7. What is the gate-source voltage rating of the STH180N10F3-2? The gate-source voltage rating (VGS) is ±20 V.
  8. Why is the STH180N10F3-2 considered efficient? It is considered efficient due to its low on-resistance and gate charge, which minimize power losses and switching losses.
  9. Is the STH180N10F3-2 suitable for high-power switching applications? Yes, it is suitable for high-power switching applications due to its high current and voltage ratings, as well as its low on-resistance.
  10. Where can I find detailed specifications for the STH180N10F3-2? Detailed specifications can be found in the datasheet available on STMicroelectronics' official website and other electronic component distributors like Farnell and Utmel.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:180A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:4.5mOhm @ 60A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:114.6 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:6665 pF @ 25 V
FET Feature:-
Power Dissipation (Max):315W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:H2Pak-2
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$6.92
120

Please send RFQ , we will respond immediately.

Similar Products

Part Number STH180N10F3-2 STH180N10F3-6 STH185N10F3-2 STH130N10F3-2
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Active Obsolete Obsolete Obsolete
FET Type N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 100 V 100 V 100 V
Current - Continuous Drain (Id) @ 25°C 180A (Tc) 180A (Tc) 180A (Tc) 120A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V 10V
Rds On (Max) @ Id, Vgs 4.5mOhm @ 60A, 10V 4.5mOhm @ 60A, 10V 4.5mOhm @ 60A, 10V 9.3mOhm @ 60A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA 4V @ 250µA 4V @ 250µA 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 114.6 nC @ 10 V 114.6 nC @ 10 V 114.6 nC @ 10 V 57 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 6665 pF @ 25 V 6665 pF @ 25 V 6665 pF @ 25 V 3305 pF @ 25 V
FET Feature - - - -
Power Dissipation (Max) 315W (Tc) 315W (Tc) 315W (Tc) 250W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package H2Pak-2 H2PAK-6 H2Pak-2 H2Pak-2
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-7, D²Pak (6 Leads + Tab) TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
