STFH24N60M2
  • Share:

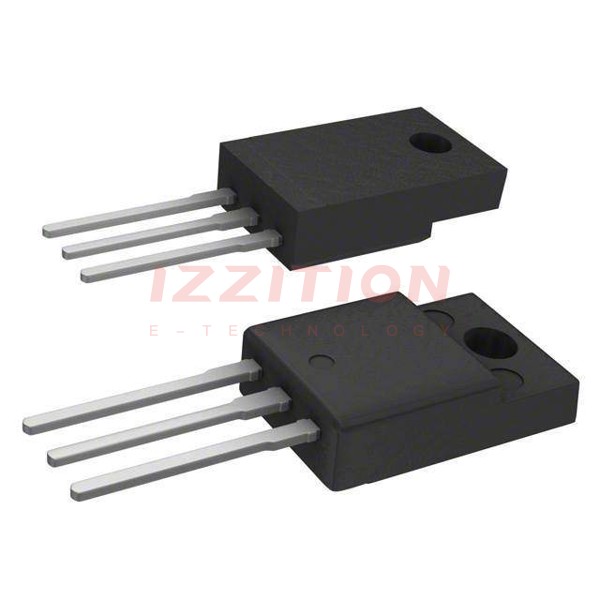

STMicroelectronics STFH24N60M2

Manufacturer No:
STFH24N60M2
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
MOSFET N-CH 600V 18A TO220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STFH24N60M2 is an N-channel Power MOSFET developed by STMicroelectronics using the advanced MDmesh™ M2 technology. This device is designed to offer low on-resistance and optimized switching characteristics, making it highly suitable for high-efficiency converters. The TO-220FP wide creepage package enhances surface insulation, preventing failures due to arcing in polluted environments.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)600 V
RDS(on) (On-Resistance)0.168 Ω (typ.)
ID (Drain Current)18 A
VGS(th) (Threshold Voltage)2-4 V
PD (Power Dissipation)Dependent on package and thermal conditions
TJ (Junction Temperature)-55°C to 150°C
PackageTO-220FP wide creepage
Creepage Distance4.25 mm

Key Features

  • Extremely low gate charge
  • Excellent output capacitance (COSS) profile
  • 100% avalanche tested
  • Zener-protected
  • Wide creepage distance of 4.25 mm between the pins

Applications

The STFH24N60M2 is ideal for various high-efficiency power conversion applications, including:

  • Switch-Mode Power Supplies (SMPS)
  • Data centers
  • Solar microinverters
  • High-power industrial and automotive systems

Q & A

  1. What is the typical on-resistance of the STFH24N60M2?
    The typical on-resistance is 0.168 Ω.
  2. What is the maximum drain current for the STFH24N60M2?
    The maximum drain current is 18 A.
  3. What is the package type of the STFH24N60M2?
    The package type is TO-220FP wide creepage.
  4. What is the creepage distance between the pins?
    The creepage distance is 4.25 mm.
  5. Is the STFH24N60M2 Zener-protected?
    Yes, it is Zener-protected.
  6. What are the typical applications of the STFH24N60M2?
    Typical applications include SMPS, data centers, solar microinverters, and high-power industrial and automotive systems.
  7. What is the junction temperature range for the STFH24N60M2?
    The junction temperature range is -55°C to 150°C.
  8. Is the STFH24N60M2 100% avalanche tested?
    Yes, it is 100% avalanche tested.
  9. What technology is used in the STFH24N60M2?
    The STFH24N60M2 is developed using MDmesh™ M2 technology.
  10. What is the drain-source voltage rating for the STFH24N60M2?
    The drain-source voltage rating is 600 V.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):600 V
Current - Continuous Drain (Id) @ 25°C:18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:190mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:29 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:1060 pF @ 100 V
FET Feature:-
Power Dissipation (Max):35W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220FP
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

$3.21
67

Please send RFQ , we will respond immediately.

Similar Products

Part Number STFH24N60M2 STFI24N60M2 STFU24N60M2 STFW24N60M2
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Active Obsolete Active Obsolete
FET Type N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V 600 V 600 V 600 V
Current - Continuous Drain (Id) @ 25°C 18A (Tc) 18A (Tc) 18A (Tc) 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V 10V
Rds On (Max) @ Id, Vgs 190mOhm @ 9A, 10V 190mOhm @ 9A, 10V 190mOhm @ 9A, 10V 190mOhm @ 9A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA 4V @ 250µA 4V @ 250µA 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 29 nC @ 10 V 29 nC @ 10 V 29 nC @ 10 V 29 nC @ 10 V
Vgs (Max) ±25V ±25V ±25V ±25V
Input Capacitance (Ciss) (Max) @ Vds 1060 pF @ 100 V 1060 pF @ 100 V 1060 pF @ 100 V 1060 pF @ 100 V
FET Feature - - - -
Power Dissipation (Max) 35W (Tc) 30W (Tc) 30W (Tc) 48W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole
Supplier Device Package TO-220FP I2PAKFP (TO-281) TO-220FP TO-3PF
Package / Case TO-220-3 Full Pack TO-262-3 Full Pack, I²Pak TO-220-3 Full Pack TO-3P-3 Full Pack
