Overview

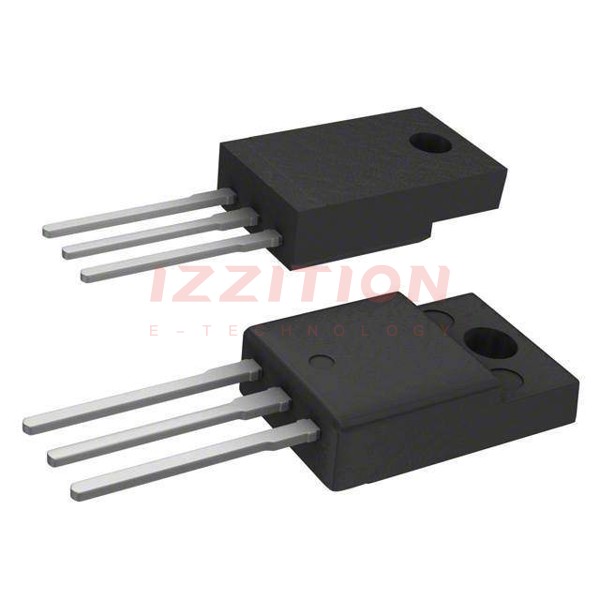

The STF3N62K3 is a high-performance N-channel Power MOSFET from STMicroelectronics, leveraging the advanced MDmesh™ K3 technology. This device is designed to offer extremely low on-resistance, superior dynamic performance, and high avalanche capability, making it suitable for the most demanding applications. The STF3N62K3 features a new optimized vertical structure that enhances its overall performance and reliability.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| VDS (Drain-Source Voltage) | 620 | V |
| RDS(on) (On-Resistance) | 2.2 | Ω |
| ID (Drain Current) | 2.7 | A |
| Package | TO-220FP, D2PAK, DPAK | |
| Operating Temperature Range | -55 to 150 | °C |
| RoHS Compliance | Ecopack2 |
Key Features
- 100% avalanche tested
- Extremely high dv/dt capability
- Very low intrinsic capacitance
- Improved diode reverse recovery characteristics
- Zener-protected
Applications
The STF3N62K3 is suitable for a variety of high-performance applications, including:
- Switch Mode Power Supplies (SMPS)
- Data Centers
- Solar Microinverters
- Industrial and Automotive systems
Q & A
- What is the maximum drain-source voltage of the STF3N62K3?
The maximum drain-source voltage (VDS) is 620 V.
- What is the typical on-resistance of the STF3N62K3?
The typical on-resistance (RDS(on)) is 2.2 Ω.
- What is the maximum drain current of the STF3N62K3?
The maximum drain current (ID) is 2.7 A.
- In which packages is the STF3N62K3 available?
The STF3N62K3 is available in TO-220FP, D2PAK, and DPAK packages.
- What are the key features of the STF3N62K3?
The key features include 100% avalanche testing, extremely high dv/dt capability, very low intrinsic capacitance, improved diode reverse recovery characteristics, and Zener protection.
- What are some typical applications for the STF3N62K3?
Typical applications include Switch Mode Power Supplies (SMPS), data centers, solar microinverters, and industrial and automotive systems.
- Is the STF3N62K3 RoHS compliant?
Yes, the STF3N62K3 is RoHS compliant with an Ecopack2 rating.
- What is the operating temperature range of the STF3N62K3?
The operating temperature range is from -55°C to 150°C.
- Where can I find detailed specifications and datasheets for the STF3N62K3?
Detailed specifications and datasheets can be found on the STMicroelectronics official website and other authorized distributors like Digi-Key, Mouser, etc.
- What is the significance of MDmesh™ K3 technology in the STF3N62K3?
The MDmesh™ K3 technology enhances the device's performance by providing extremely low on-resistance, superior dynamic performance, and high avalanche capability.
