STB47N60DM6AG
  • Share:

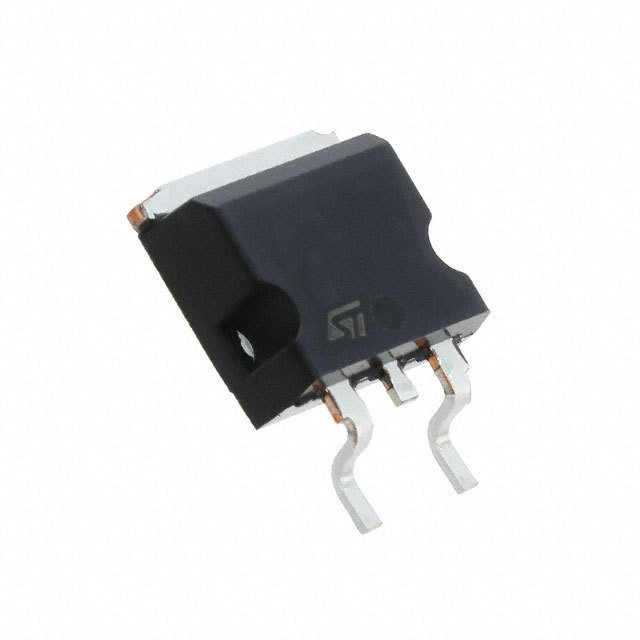

STMicroelectronics STB47N60DM6AG

Manufacturer No:
STB47N60DM6AG
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
AUTOMOTIVE-GRADE N-CHANNEL 600 V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STB47N60DM6AG is an automotive-grade N-channel Power MOSFET from STMicroelectronics, part of the MDmesh™ DM6 fast-recovery diode series. This device is designed to offer improved performance compared to previous generations of MDmesh fast recovery diodes. It is housed in a D2PAK package and is suitable for high-voltage applications requiring robust and efficient power management.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)600 V
RDS(on) (On-State Resistance)70 mΩ (typ.)
ID (Continuous Drain Current)36 A
PD (Power Dissipation)250 W
TJ (Junction Temperature)-40°C to 150°C
PackageD2PAK

Key Features

  • High-voltage N-channel Power MOSFET with fast recovery diode.
  • MDmesh™ DM6 technology for improved performance.
  • Low on-state resistance (RDS(on)) of 70 mΩ (typ.).
  • High continuous drain current (ID) of 36 A.
  • Automotive-grade, suitable for harsh environments.
  • D2PAK package for efficient heat dissipation.

Applications

  • Automotive systems, including electric vehicles and hybrid vehicles.
  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Industrial power management systems.
  • High-voltage switching applications.

Q & A

  1. What is the drain-source voltage rating of the STB47N60DM6AG?
    The drain-source voltage (VDS) rating is 600 V.
  2. What is the typical on-state resistance of the STB47N60DM6AG?
    The typical on-state resistance (RDS(on)) is 70 mΩ.
  3. What is the continuous drain current rating of the STB47N60DM6AG?
    The continuous drain current (ID) rating is 36 A.
  4. In what package is the STB47N60DM6AG available?
    The STB47N60DM6AG is available in a D2PAK package.
  5. What is the junction temperature range for the STB47N60DM6AG?
    The junction temperature range is -40°C to 150°C.
  6. Is the STB47N60DM6AG suitable for automotive applications?
    Yes, it is an automotive-grade component.
  7. What technology does the STB47N60DM6AG use?
    The STB47N60DM6AG uses MDmesh™ DM6 technology.
  8. What are some common applications for the STB47N60DM6AG?
    Common applications include automotive systems, power supplies, motor control, and high-voltage switching.
  9. What is the power dissipation rating of the STB47N60DM6AG?
    The power dissipation (PD) rating is 250 W.
  10. Where can I find detailed specifications for the STB47N60DM6AG?
    Detailed specifications can be found on the STMicroelectronics official website or through distributors like Mouser Electronics.
