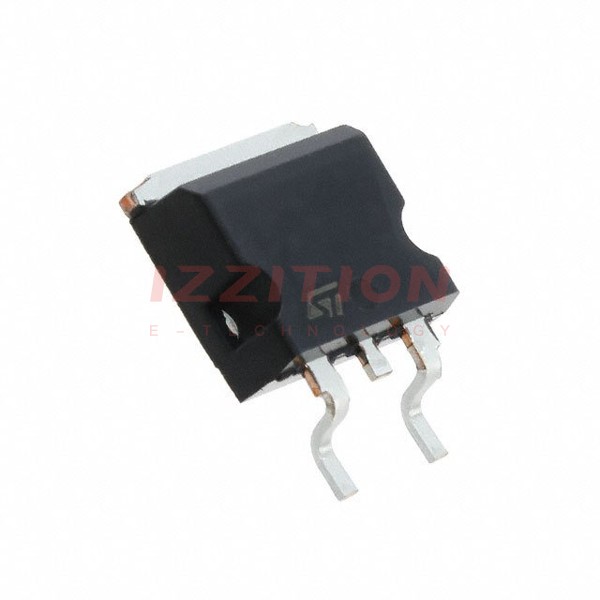

STMicroelectronics STB45N60DM2AG

Manufacturer No:
STB45N60DM2AG
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 600V 34A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STB45N60DM2AG is a high-voltage N-channel Power MOSFET from STMicroelectronics, part of the MDmesh DM2 fast-recovery diode series. This device is designed to offer very low recovery charge (Qrr) and time (trr), making it suitable for high-efficiency applications. It is packaged in a D²PAK (TO-263) surface mount package, which is widely used in various power management and automotive systems.

Key Specifications

ParameterValue
Voltage Rating (Vds)600 V
On-State Resistance (Rds(on))0.085 Ω (typ.)
Continuous Drain Current (Id)34 A (at Tc = 25°C)
Pulse Drain Current (Idm)136 A
Power Dissipation (Pd)250 W (at Tc = 25°C)
PackageD²PAK (TO-263)
Recovery Charge (Qrr)Very low
Recovery Time (trr)Very low

Key Features

  • High-voltage N-channel Power MOSFET with fast-recovery body diode
  • Low recovery charge (Qrr) and recovery time (trr)
  • High continuous drain current (Id) of 34 A at Tc = 25°C
  • High pulse drain current (Idm) of 136 A
  • High power dissipation capability of 250 W at Tc = 25°C
  • D²PAK (TO-263) surface mount package for easy integration
  • Automotive-grade, suitable for demanding automotive and industrial applications

Applications

The STB45N60DM2AG is designed for use in various high-power applications, including:

  • Automotive systems such as electric vehicles, hybrid vehicles, and power steering systems
  • Industrial power supplies and motor control systems
  • High-efficiency DC-DC converters and power management systems
  • Power factor correction (PFC) circuits

Q & A

  1. What is the voltage rating of the STB45N60DM2AG?
    The voltage rating (Vds) of the STB45N60DM2AG is 600 V.
  2. What is the typical on-state resistance of the STB45N60DM2AG?
    The typical on-state resistance (Rds(on)) is 0.085 Ω.
  3. What is the continuous drain current of the STB45N60DM2AG?
    The continuous drain current (Id) is 34 A at Tc = 25°C.
  4. What is the pulse drain current of the STB45N60DM2AG?
    The pulse drain current (Idm) is 136 A.
  5. What is the power dissipation capability of the STB45N60DM2AG?
    The power dissipation capability (Pd) is 250 W at Tc = 25°C.
  6. What package type is the STB45N60DM2AG available in?
    The STB45N60DM2AG is available in a D²PAK (TO-263) surface mount package.
  7. What are the key benefits of the fast-recovery body diode in the STB45N60DM2AG?
    The fast-recovery body diode offers very low recovery charge (Qrr) and recovery time (trr), enhancing the overall efficiency of the system.
  8. Is the STB45N60DM2AG suitable for automotive applications?
    Yes, the STB45N60DM2AG is automotive-grade and suitable for demanding automotive and industrial applications.
  9. What are some common applications of the STB45N60DM2AG?
    Common applications include automotive systems, industrial power supplies, high-efficiency DC-DC converters, and power factor correction (PFC) circuits.
  10. Where can I find detailed specifications and datasheets for the STB45N60DM2AG?
    Detailed specifications and datasheets can be found on the official STMicroelectronics website, as well as on distributor websites such as Digi-Key and TME.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):600 V
Current - Continuous Drain (Id) @ 25°C:34A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:90mOhm @ 17A, 10V
Vgs(th) (Max) @ Id:5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:56 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:2500 pF @ 100 V
FET Feature:-
Power Dissipation (Max):250W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D²PAK (TO-263)
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$6.73
77

Please send RFQ , we will respond immediately.

Similar Products

Part Number STB45N60DM2AG STB45N40DM2AG STB45N50DM2AG
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V 400 V 500 V
Current - Continuous Drain (Id) @ 25°C 34A (Tc) 38A (Tc) 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V
Rds On (Max) @ Id, Vgs 90mOhm @ 17A, 10V 72mOhm @ 19A, 10V 84mOhm @ 17.5A, 10V
Vgs(th) (Max) @ Id 5V @ 250µA 5V @ 250µA 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 56 nC @ 10 V 56 nC @ 10 V 57 nC @ 10 V
Vgs (Max) ±25V ±25V ±25V
Input Capacitance (Ciss) (Max) @ Vds 2500 pF @ 100 V 2600 pF @ 100 V 2600 pF @ 100 V
FET Feature - - -
Power Dissipation (Max) 250W (Tc) 250W (Tc) 250W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package D²PAK (TO-263) D²PAK (TO-263) D²PAK (TO-263)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
