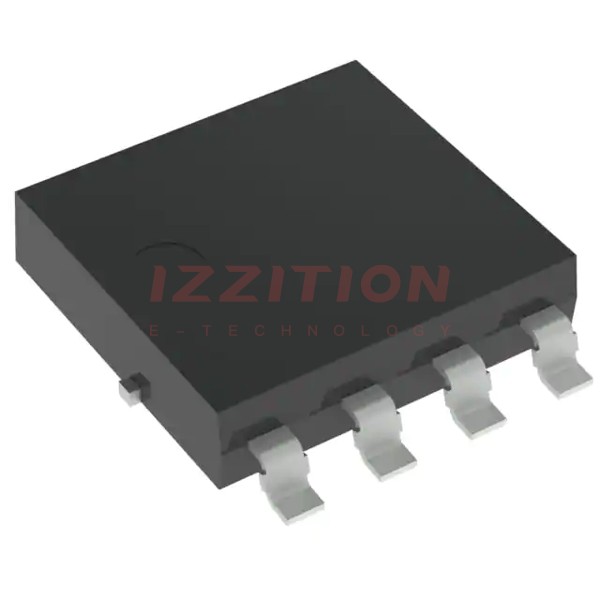

onsemi NVMJS1D5N04CLTWG

Manufacturer No:
NVMJS1D5N04CLTWG
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 38A/200A 8LFPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVMJS1D5N04CLTWG is a high-performance N-Channel MOSFET produced by onsemi. This device is designed to offer superior efficiency and reliability in a variety of power management applications. With its compact LFPAK8 package, it is ideal for space-constrained designs while maintaining high electrical performance.

Key Specifications

Specification Value
Channel Type N Channel
Drain-Source Voltage (Vds) 40V
Package Type LFPAK8
RoHS Compliance Yes
Footprint 5x6 mm

Key Features

The NVMJS1D5N04CLTWG features a small footprint of 5x6 mm, making it suitable for compact design requirements. It boasts a low RDS(on) to minimize conduction losses and low QG and capacitance to reduce driver losses. These characteristics enhance the overall efficiency and performance of the device in various applications.

Applications

This MOSFET is versatile and can be used in a range of applications, including power management, DC-DC converters, motor control, and other high-power electronic systems where efficiency and reliability are critical. Its compact size and high electrical performance make it an excellent choice for space-constrained designs.

Q & A

  1. What is the channel type of the NVMJS1D5N04CLTWG MOSFET?

    The NVMJS1D5N04CLTWG is an N-Channel MOSFET.

  2. What is the maximum drain-source voltage (Vds) of this MOSFET?

    The maximum drain-source voltage (Vds) is 40V.

  3. What package type does the NVMJS1D5N04CLTWG come in?

    The NVMJS1D5N04CLTWG comes in an LFPAK8 package.

  4. Is the NVMJS1D5N04CLTWG RoHS compliant?

    Yes, the NVMJS1D5N04CLTWG is RoHS compliant.

  5. What are the key features of the NVMJS1D5N04CLTWG?

    The key features include a small footprint, low RDS(on), and low QG and capacitance.

  6. What are some common applications for the NVMJS1D5N04CLTWG?

    Common applications include power management, DC-DC converters, and motor control.

  7. Why is the LFPAK8 package beneficial?

    The LFPAK8 package is beneficial due to its compact size, making it ideal for space-constrained designs.

  8. How does the low RDS(on) benefit the performance of the MOSFET?

    The low RDS(on) minimizes conduction losses, enhancing the overall efficiency of the device.

  9. What does low QG and capacitance mean for the MOSFET?

    Low QG and capacitance reduce driver losses, improving the device's performance and efficiency.

  10. Where can I find detailed specifications for the NVMJS1D5N04CLTWG?

    Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and Newark.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:38A (Ta), 200A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:2V @ 130µA
Gate Charge (Qg) (Max) @ Vgs:70 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4300 pF @ 20 V
FET Feature:-
Power Dissipation (Max):3.8W (Ta), 110W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-LFPAK
Package / Case:SOT-1205, 8-LFPAK56
0 Remaining View Similar

In Stock

$3.08
126

Please send RFQ , we will respond immediately.
