NVD6416ANLT4G-001
  • Share:

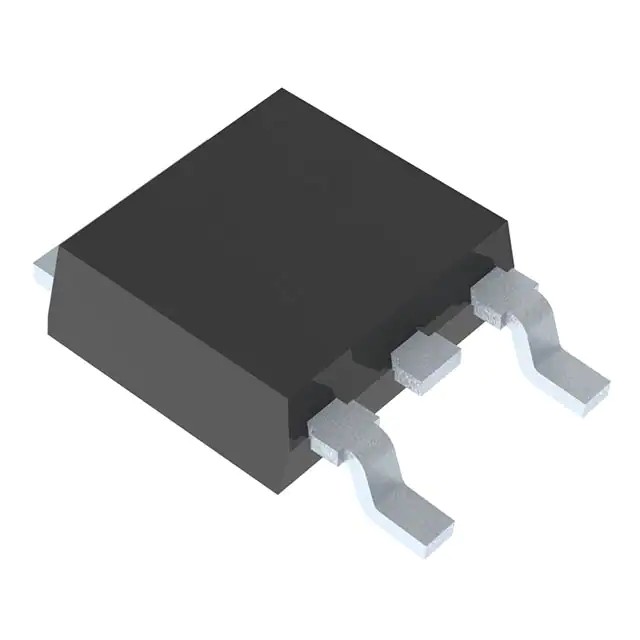

onsemi NVD6416ANLT4G-001

Manufacturer No:
NVD6416ANLT4G-001
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 19A DPAK-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVD6416ANLT4G-001 is a high-performance, N-Channel power MOSFET produced by onsemi. This device is part of the NVD6416ANL series, which is AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other applications requiring stringent quality and reliability standards. The MOSFET is known for its low on-resistance (RDS(on)), high current capability, and robust avalanche characteristics.

Key Specifications

Parameter Symbol Value Unit
Drain-to-Source Voltage VDSS 100 V
Gate-to-Source Voltage - Continuous VGS ±20 V
Continuous Drain Current (Steady State) at TC = 25°C ID 19 A
Power Dissipation (Steady State) at TC = 25°C PD 71 W
Pulsed Drain Current (tp = 10 μs) IDM 70 A
Operating and Storage Temperature Range TJ, Tstg -55 to +175 °C
Single Pulse Drain-to-Source Avalanche Energy EAS 50 mJ
Lead Temperature for Soldering Purposes TL 260 °C
Drain-to-Source On-Resistance (RDS(on)) at VGS = 10 V, ID = 19 A RDS(on) 68-74 mΩ
Junction-to-Case Thermal Resistance (RθJC) RθJC 2.1 °C/W
Junction-to-Ambient Thermal Resistance (RθJA) RθJA 47 °C/W

Key Features

  • Low RDS(on): The NVD6416ANLT4G-001 features a low on-resistance, which minimizes power losses and enhances efficiency in high-current applications.
  • High Current Capability: With a continuous drain current of 19 A and a pulsed drain current of 70 A, this MOSFET is suitable for high-power applications.
  • 100% Avalanche Tested: The device is rigorously tested for avalanche performance, ensuring reliability under harsh conditions.
  • AEC-Q101 Qualified and PPAP Capable: This MOSFET meets the stringent automotive quality standards, making it ideal for automotive and other critical applications.
  • Pb-Free and RoHS Compliant: The device is lead-free and compliant with RoHS regulations, ensuring environmental sustainability.

Applications

  • Automotive Systems: Suitable for various automotive applications due to its AEC-Q101 qualification and PPAP capability.
  • Power Supplies: Used in high-power supply systems where low on-resistance and high current handling are critical.
  • Motor Control: Ideal for motor control applications requiring high current and low power losses.
  • Industrial Power Management: Applicable in industrial power management systems that demand robust and reliable performance.

Q & A

  1. What is the maximum drain-to-source voltage (VDSS) of the NVD6416ANLT4G-001?

    The maximum drain-to-source voltage (VDSS) is 100 V.

  2. What is the continuous drain current (ID) at TC = 25°C?

    The continuous drain current (ID) at TC = 25°C is 19 A.

  3. What is the on-resistance (RDS(on)) at VGS = 10 V and ID = 19 A?

    The on-resistance (RDS(on)) at VGS = 10 V and ID = 19 A is between 68-74 mΩ.

  4. Is the NVD6416ANLT4G-001 AEC-Q101 qualified?

    Yes, the NVD6416ANLT4G-001 is AEC-Q101 qualified and PPAP capable.

  5. What is the operating temperature range of the NVD6416ANLT4G-001?

    The operating and storage temperature range is -55 to +175°C.

  6. What is the single pulse drain-to-source avalanche energy (EAS) of the device?

    The single pulse drain-to-source avalanche energy (EAS) is 50 mJ.

  7. Is the NVD6416ANLT4G-001 Pb-Free and RoHS compliant?

    Yes, the device is Pb-Free and RoHS compliant.

  8. What is the junction-to-case thermal resistance (RθJC) of the device?

    The junction-to-case thermal resistance (RθJC) is 2.1°C/W.

  9. What are the typical applications of the NVD6416ANLT4G-001?

    Typical applications include automotive systems, power supplies, motor control, and industrial power management.

  10. What is the lead temperature for soldering purposes?

    The lead temperature for soldering purposes is 260°C.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:19A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:74mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:40 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1000 pF @ 25 V
FET Feature:-
Power Dissipation (Max):71W (Tc)
Operating Temperature:-55°C ~ 175°C
Mounting Type:Surface Mount
Supplier Device Package:DPAK-3
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$1.05
68

Please send RFQ , we will respond immediately.
